Synchronising Set KLE 8 80×80

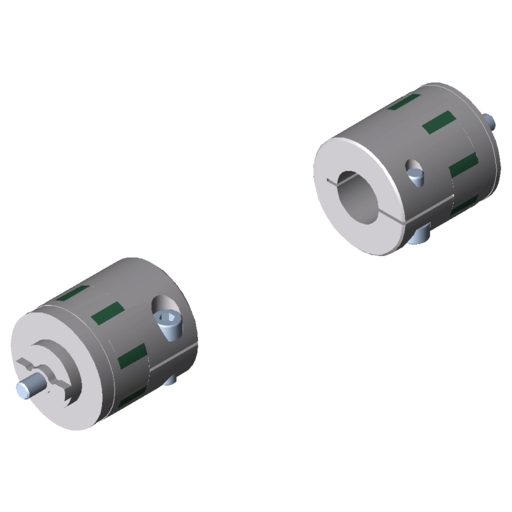

2 Coupling Halves D55/D25, Al 2 Coupling Halves D55 KLE 8 80×80, Al 2 Coupling Inserts D55, PU, green Tightening torque, Coupling Halves D55 KLE 8 80×80, Al: 25 Nm Tightening torque, clamping hub screw: 9.6 Nm
Scope of Delivery
2 Coupling Halves D55/D25, Al 2 Coupling Halves D55 KLE 8 80x80, Al 2 Coupling Inserts D55, PU, green Tightening torque, Coupling Halves D55 KLE 8 80x80, Al: 25 Nm Tightening torque, clamping hub screw: 9.6 Nm
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 715 g |
| Delivery unit | 1 set |
To synchronise two Linear Units KLE, the corresponding Synchronising Sets are available. Each of these contains two complete couplings for connecting the Drive Unit pulleys. Note: When designing the drive for synchronised KLEs, the permissible drive torques of the components, in particular the coupling on the motor side, must be taken into account.
A suitable Tube St (sawn to length) turns the Synchronising Set into a complete synchroniser shaft.
The permissible speed of the Synchroniser Shaft depends on its length. n = Rotational speed of the Synchroniser Shaft a = Distance between Linear Units
