Adjustment Modules

The JM Adjustment Module is delivered with two different drives; trapezoidal screw for manual adjustment and ball screw for motor operation. The module is constructed with double hardened, ground, precision shafts with four ball bushings. Diameter 12,20,30. On request, the adjustment module is delivered with adjustment knob included.

The JM Adjustment Module is particularly suitable for applications requiring vertical or horizontal adjustments, but also when a cheaper motor driven linear module is required.

Technical info

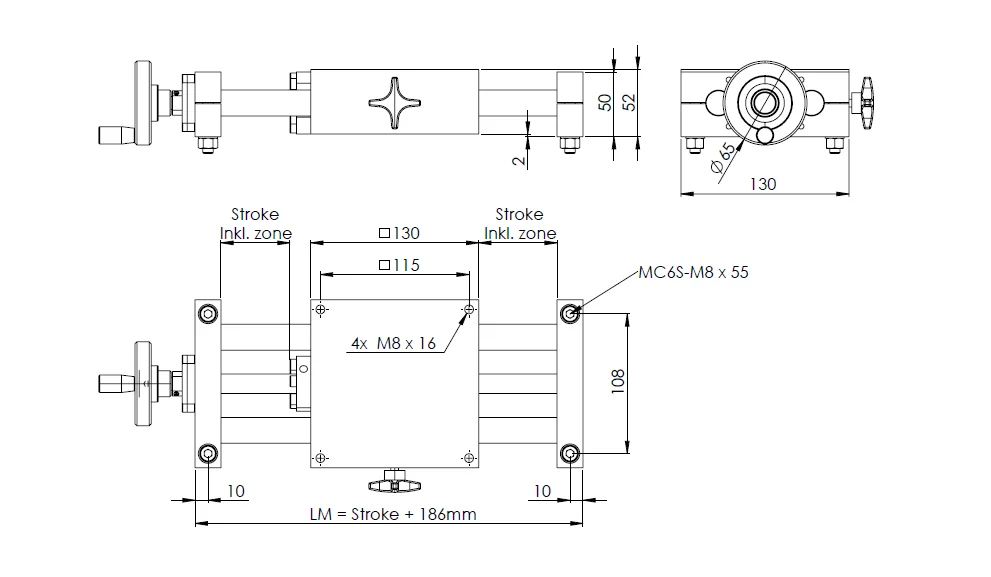

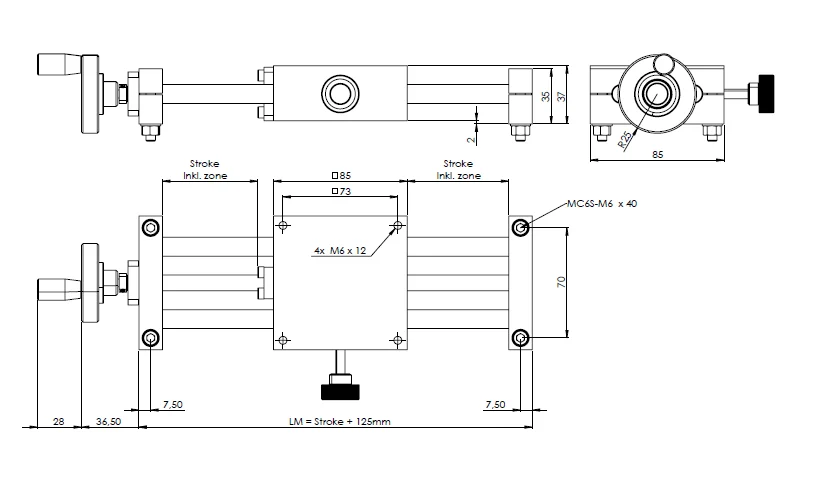

Technical dimensions - With crank

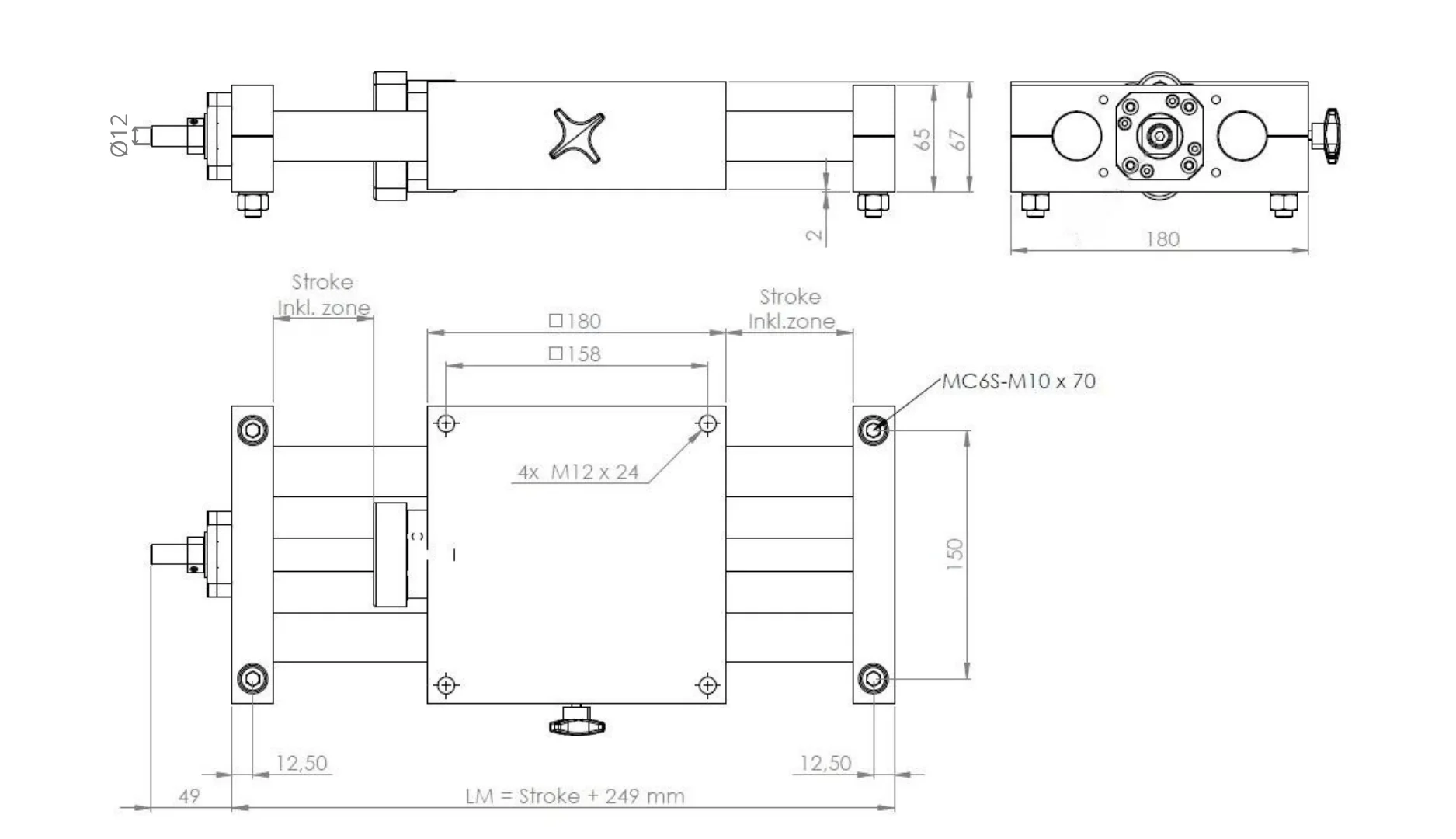

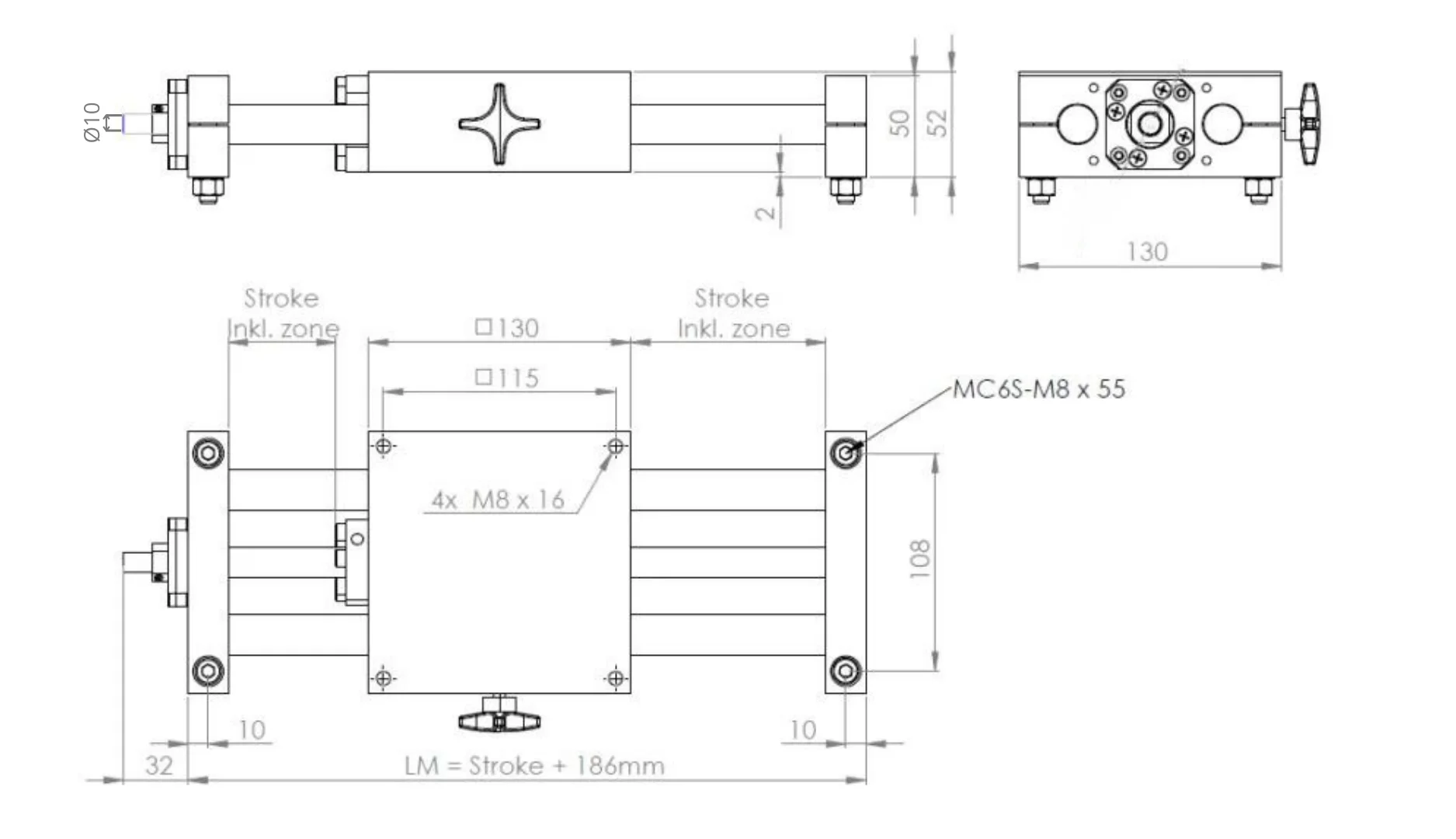

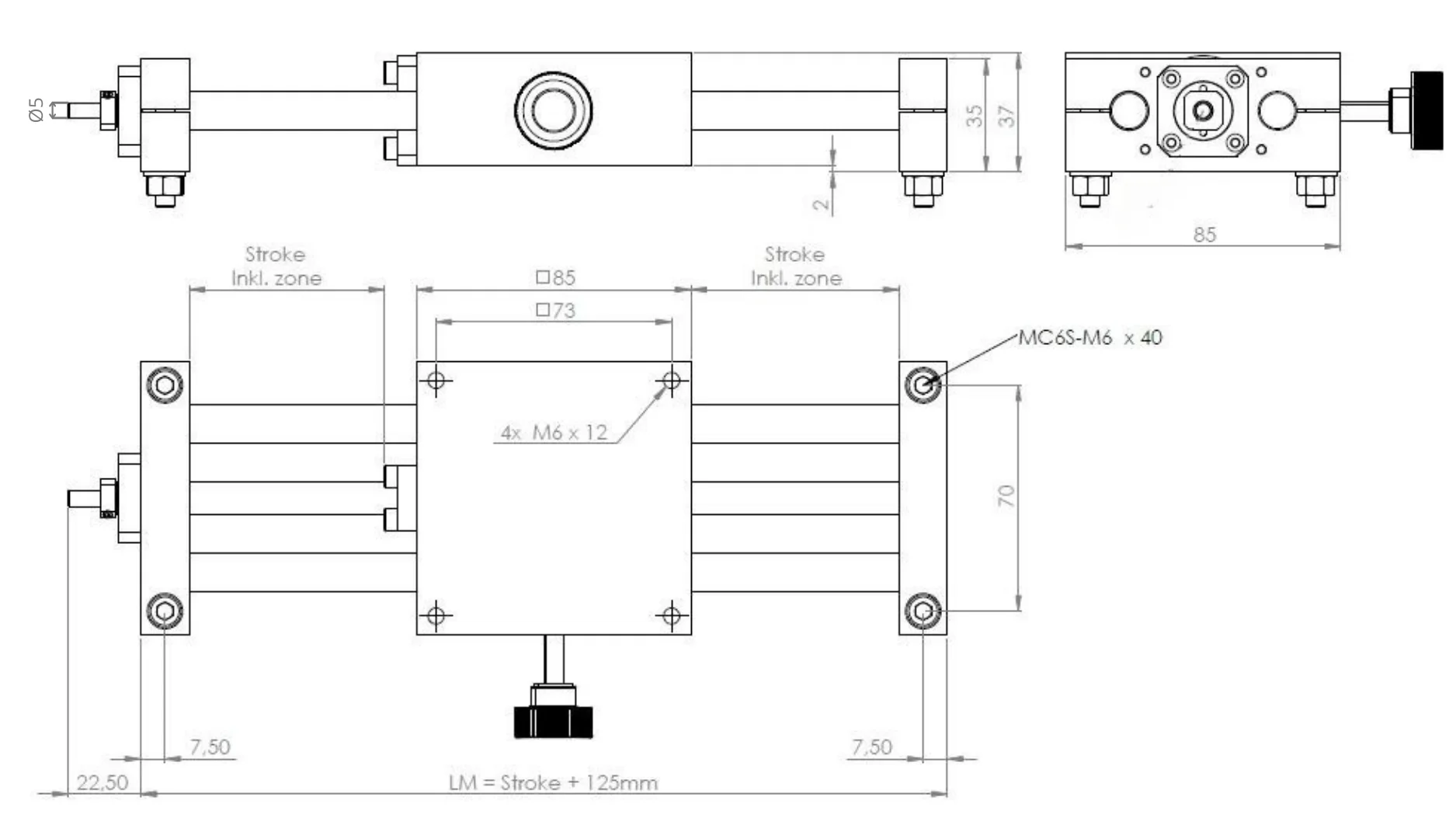

Technical dimensions - Without Crank

Load & Moment
