CN-Compact Rail

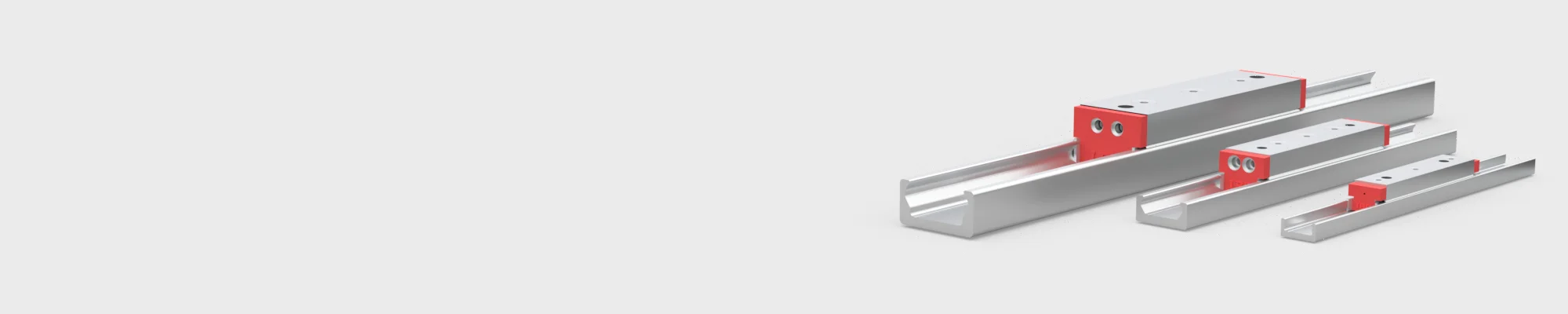

CN carriages from the Compact Rail series come sealed with two protective strips, keeping dirt at bay. Designed to handle varying load moments, they offer precision and protection in environments with potential contaminants.

Technical info

Technical dimensions

Rail Size

Load & Moment

Mounting Hole



Carriage type and main load direction Rollers Dimensions [mm]
  A n H H1 B BS h2 C Cw Cx
CN 18-21 ** 3 – 18.0 16.5 8.3 – 80.0 94.0 –
CN 28H-21 ** 3 – 28.0 24.1 12.3 – 102.0 116.0 –
CN 43-21 ** 3 – 43.0 37.5 21.0 – 134.0 148.0 –
CU 28H-21 ** 3 – 28.0 24.1 12.3 – 160.0 174.0 26.0
CU 28H-22/A 4 – 28.0 24.1 12.3 – 160.0 174.0 26.0
CU 28H-22/B 4 – 28.0 24.1 12.3 – 160.0 174.0 26.0
CU 28H-22/C 4 – 28.0 24.1 12.3 – 160.0 174.0 26.0
CU 28H-32 ** 4 – 28.0 24.1 12.3 – 160.0 174.0 26.0
CU 28H-41 ** 4 – 28.0 24.1 12.3 – 160.0 174.0 26.0
CU 43-21 ** 3 – 43.0 37.5 21.0 – 218.0 232.0 37.0
CU 43-22/A 4 – 43.0 37.5 21.0 – 218.0 232.0 37.0
CU 43-22/B 4 – 43.0 37.5 21.0 – 218.0 232.0 37.0
CU 43-22/C 4 – 43.0 37.5 21.0 – 218.0 232.0 37.0
CU 43-32 ** 5 – 43.0 37.5 21.0 – 218.0 232.0 37.0
CU 43-41 5 – 43.0 37.5 21.0 – 218.0 232.0 37.0



Designation H1 Bs Conical V d2 t2 Cylindrical C db ds t1
Profile 18 18 8.25 M4 DIN 7991 5 2.6 M4 TORX 5.0 9.5 2.0
Profile 28H 28 12.30 M5 DIN 7991 6 2.8 M5 TORX 6.4 11.0 2.0
Profile 43 43 21.00 M8 DIN 7991 9 4.3 M8 TORX 10.5 18.0 3.1



Model. L [MM] la [MM] lt [MM] n Weight  [kg]
LCX / LCU 18 160 40 80 2 0.09
LCX / LCU 18 240 40 80 3 0.13
LCX / LCU 18 320 40 80 4 0.18
LCX / LCU 18 400 40 80 5 0.22
LCX / LCU 18 480 40 80 6 0.26
LCX / LCU 18 560 40 80 7 0.31
LCX / LCU 18 640 40 80 8 0.35
LCX / LCU 18 720 40 80 9 0.40
LCX / LCU 18 800 40 80 10 0.44
LCX / LCU 18 880 40 80 11 0.48
LCX / LCU 18 960 40 80 12 0.53
LCX / LCU 18 1040 40 80 13 0.57
LCX / LCU 18 1120 40 80 14 0.62
LCX / LCU 18 1200 40 80 15 0.66
LCX / LCU 18 1280 40 80 16 0.70
LCX / LCU 18 1360 40 80 17 0.75
LCX / LCU 18 1440 40 80 18 0.79
LCX / LCU 18 1520 40 80 19 0.84
LCX / LCU 18 1600 40 80 20 0.88
LCX / LCU 18 1680 40 80 21 0.92
LCX / LCU 18 1760 40 80 22 0.97
LCX / LCU 18 1840 40 80 23 1.01
LCX / LCU 18 1920 40 80 24 1.06
LCX / LCU 18 2000 40 80 25 1.10



Designation H1 Bs Conical V d2 t2 Cylindrical C db ds t1
Profile 18 18 8.25 M4 DIN 7991 5 2.6 M4 TORX 5.0 9.5 2.0
Profile 28H 28 12.30 M5 DIN 7991 6 2.8 M5 TORX 6.4 11.0 2.0
Profile 43 43 21.00 M8 DIN 7991 9 4.3 M8 TORX 10.5 18.0 3.1



Model. L [MM] la [MM] lt [MM] n Weight  [kg]
LCX / LCU 28h 240 40 80 3 0.26
LCX / LCU 28h 320 40 80 4 0.35
LCX / LCU 28h 400 40 80 5 0.44
LCX / LCU 28h 480 40 80 6 0.53
LCX / LCU 28h 560 40 80 7 0.62
LCX / LCU 28h 640 40 80 8 0.70
LCX / LCU 28h 720 40 80 9 0.79
LCX / LCU 28h 800 40 80 10 0.88
LCX / LCU 28h 880 40 80 11 0.97
LCX / LCU 28h 960 40 80 12 1.06
LCX / LCU 28h 1040 40 80 13 1.14
LCX / LCU 28h 1120 40 80 14 1.23
LCX / LCU 28h 1200 40 80 15 1.32
LCX / LCU 28h 1280 40 80 16 1.41
LCX / LCU 28h 1360 40 80 17 1.50
LCX / LCU 28h 1440 40 80 18 1.58
LCX / LCU 28h 1520 40 80 19 1.67
LCX / LCU 28h 1600 40 80 20 1.76
LCX / LCU 28h 1680 40 80 21 1.85
LCX / LCU 28h 1760 40 80 22 1.94
LCX / LCU 28h 1840 40 80 23 2.02
LCX / LCU 28h 1920 40 80 24 2.11
LCX / LCU 28h 2000 40 80 25 2.20
LCX / LCU 28h 2080 40 80 26 2.29
LCX / LCU 28h 2160 40 80 27 2.38
LCX / LCU 28h 2240 40 80 28 2.46
LCX / LCU 28h 2320 40 80 29 2.55
LCX / LCU 28h 2400 40 80 30 2.64
LCX / LCU 28h 2480 40 80 31 2.73
LCX / LCU 28h 2560 40 80 32 2.82
LCX / LCU 28h 2640 40 80 33 2.90
LCX / LCU 28h 2720 40 80 34 2.99
LCX / LCU 28h 2800 40 80 35 3.08
LCX / LCU 28h 2880 40 80 36 3.17
LCX / LCU 28h 2960 40 80 37 3.26
LCX / LCU 28h 3040 40 80 38 3.34
LCX / LCU 28h 3120 40 80 39 3.43
LCX / LCU 28h 3200 40 80 40 3.52



Designation H1 Bs Conical V d2 t2 Cylindrical C db ds t1
Profile 18 18 8.25 M4 DIN 7991 5 2.6 M4 TORX 5.0 9.5 2.0
Profile 28H 28 12.30 M5 DIN 7991 6 2.8 M5 TORX 6.4 11.0 2.0
Profile 43 43 21.00 M8 DIN 7991 9 4.3 M8 TORX 10.5 18.0 3.1



Model. L [MM] la [MM] lt [MM] n Weight  [kg]
LCX / LCU 43 400 40 80 5 1.08
LCX / LCU 43 480 40 80 6 1.30
LCX / LCU 43 560 40 80 7 1.52
LCX / LCU 43 640 40 80 8 1.73
LCX / LCU 43 720 40 80 9 1.95
LCX / LCU 43 800 40 80 10 2.17
LCX / LCU 43 880 40 80 11 2.38
LCX / LCU 43 960 40 80 12 2.60
LCX / LCU 43 1040 40 80 13 2.82
LCX / LCU 43 1120 40 80 14 3.04
LCX / LCU 43 1200 40 80 15 3.25
LCX / LCU 43 1280 40 80 16 3.47
LCX / LCU 43 1360 40 80 17 3.69
LCX / LCU 43 1440 40 80 18 3.90
LCX / LCU 43 1520 40 80 19 4.12
LCX / LCU 43 1600 40 80 20 4.34
LCX / LCU 43 1680 40 80 21 4.55
LCX / LCU 43 1760 40 80 22 4.77
LCX / LCU 43 1840 40 80 23 4.99
LCX / LCU 43 1920 40 80 24 5.20
LCX / LCU 43 2000 40 80 25 5.42
LCX / LCU 43 2080 40 80 26 5.64
LCX / LCU 43 2160 40 80 27 5.85
LCX / LCU 43 2240 40 80 28 6.07
LCX / LCU 43 2320 40 80 29 6.29
LCX / LCU 43 2400 40 80 30 6.50
LCX / LCU 43 2480 40 80 31 6.72
LCX / LCU 43 2560 40 80 32 6.94
LCX / LCU 43 2640 40 80 33 7.15
LCX / LCU 43 2720 40 80 34 7.37
LCX / LCU 43 2800 40 80 35 7.59
LCX / LCU 43 2880 40 80 36 7.80
LCX / LCU 43 2960 40 80 37 8.02
LCX / LCU 43 3040 40 80 38 8.24
LCX / LCU 43 3120 40 80 39 8.46
LCX / LCU 43 3200 40 80 40 8.67
LCX / LCU 43 3280 40 80 41 8.89
LCX / LCU 43 3360 40 80 42 9.11
LCX / LCU 43 3440 40 80 43 9.32
LCX / LCU 43 3520 40 80 44 9.54
LCX / LCU 43 3600 40 80 45 9.76



Main load directions of the carriages   Load main ratings load directions [IN] Tolerable moments of load [Nm]
CR CR CN VA C Co rad Co M, M2 Myd M, Mys
CR 18-21 CR 18-12 CN 18-21 1540 825 262 1.6 4.8  8.3 8.3
CR 18-22/A     1540 825 310 2.9 7.1 8.3 24.9
CR 18-22/B     1540 825 310 2.9 7.1 24.9 8.3
CR 18-32 CR 18-23   1832 978 365 2.9 9.5 24.9 24.9
CR 18-33/A     1832 978 442 3.4 11.9 24.9 41.2
CR 18-33/B     1832 978 442 3.4 11.9 41.2 24.9
CR 28H-21 CR 28H-12 CN 28H-21 4345 2213 652 6.4 16.4 28.0 28.0
CR 28H-22/A     4345 2213 765 11.8 22.3 28.0 84.1
CR 28H-22/B     4345 2213 765 11.8 22.3 84.1 28.0
CR 28H-32 CR 28H-23   5160 2630 919 11.8 30.0 84.1  84.1
CR 28H-33/A     5160 2630 1102 14.1 37.3 84.1 140.0
CR 28H-33/B     5160 2630 1102 14.1 37.3 140.0 84.1
CR 43-21 CR 43-12 CN 43-21 12300 5520 1580 23.7 60.1 104,7 104,7
CR 43-22/A     12300 5520 1890 43.7 81.6 104.7 313.8
CR 43-22/B     12300 5520 1890 43.7 81.6 313.8 104.7
CR 43-32 CR 43-23   14680 6560 2220 43.7 108.7 313.8  313.8
CR 43-33/A     14680 6560 2650 52.5 136.0 313.8 523.0
CR 43-33/B     14680 6560 2650 52.5 136.0 523.0 313.8





Carriage type and main load direction Rollers Dimensions [mm]
Down Up n Bl d d1 Ca Ct d2 H2
CN 18-21 ** 3 7.2 – – 14.0 52.0 M5 9.0
CN 28H-21 ** 3 10.0 – – 12,0 78,0 14.0
CN 43-21 ** 3 15.0 – – 10.0 114.0 M8 21.5
CU 28H-21 ** 3 10.0 – – 15.0 52.0 M5 14.0
CU 28H-22/A   4 10.0 – – 15.0 52.0 M5 14.0
CU 28H-22/B   4 10.0 – – 15.0 52.0 M5 14.0
CU 28H-22/C   4 10.0 – – 15.0 52.0 M5 14.0
CU 28H-32 ** 5 10.0 – – 15.0 52.0 M5 14.0
CU 28H-41 ** 5 10.0 – – 15.0 52.0 M5 14.0
CU 43-21 ** 3 15.0 – – 15.0 75.5 M8 21.5
CU 43-22/A   4 15.0 – – 15.0 75.5 M8 21.5
CU 43-22/B   4 15.0 – – 15.0 75.5 M8 21.5
CU 43-22/C   4 15.0 – – 15.0 75.5 M8 21.5
CU 43-32 ** 5 15.0 – – 15.0 75.5 M8 21.5
CU 43-41 5 15.0 – – 15.0 75.5 M8 21.5
