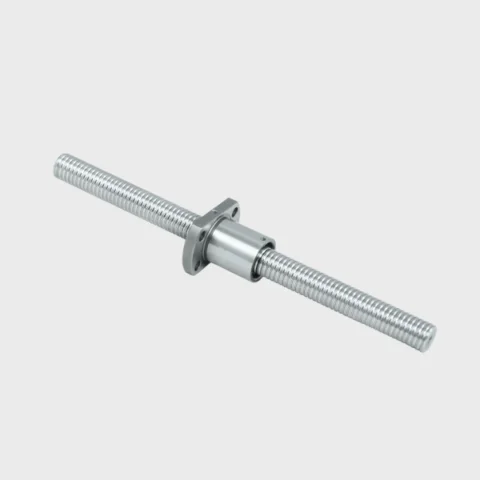

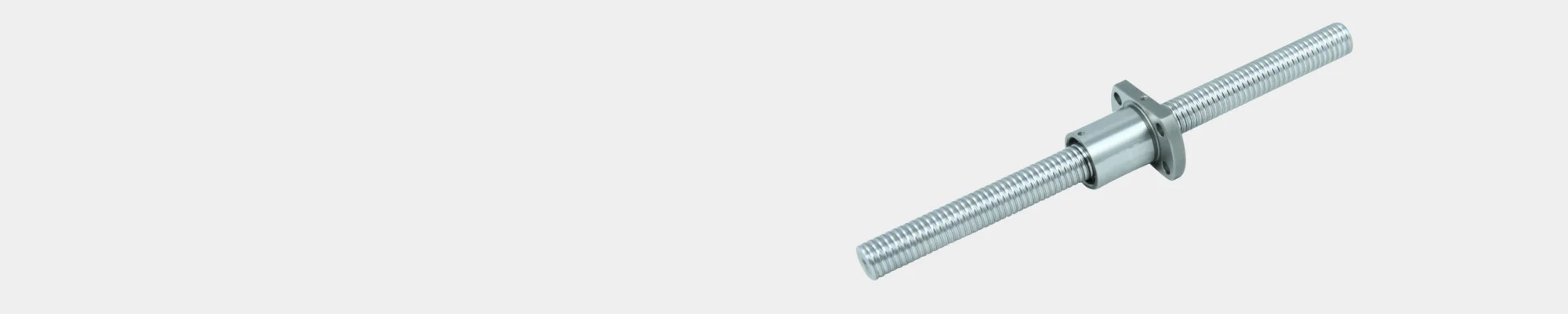

SFK Miniature Ball Screw

The SFK series is a miniature screw with flange nuts in diameters 8-10 mm, rolled C7 grade. Pitch alternatives with 1, 2 and 4 mm. The screw with nut is preloaded by 1%, and totally without play.

Technical info

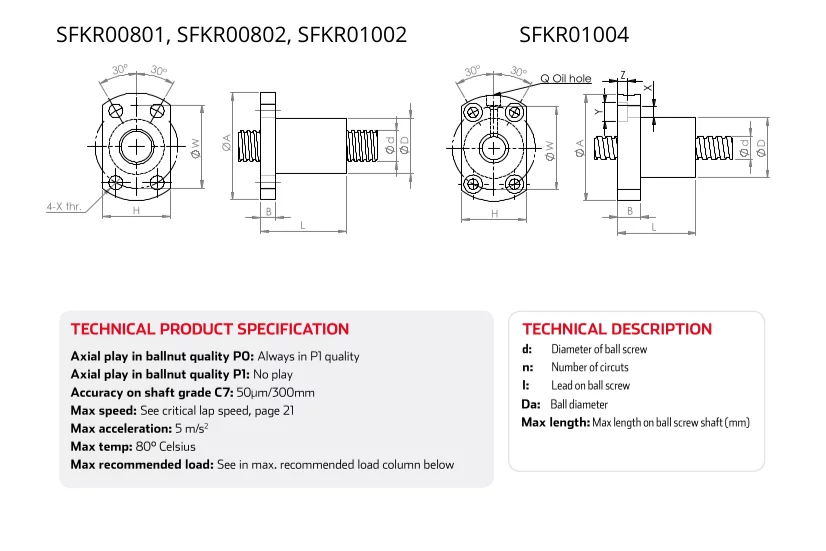

Technical dimensions

System Dimensions

Load & Moment

Mounting Hole



Model No. Dimension
D I Da n

Max

Length
SFKR00801 8 1 0.8 1×4 292
SFKR00802 8 2 1.2 1×3 300
SFKR01002 10 2 1.2 1×3 367
SFKR01004 10 4 2 1×3 367





Model No. Dimension
D A B L H
SFKR00801 14 27 4 16 18
SFKR00802 14 27 4 16 18
SFKR01002 18 35 5 28 22
SFKR01004 26 46 10 34 28



Model No. Load
Ca Coa K Max rec.load
SFkR00801 1610 4030 140 181
SFKR00802 2220 4580 130 206
SFKR01002 2430 5690 150 285
SFKR01004 4680 9050 170 453





Model No. Dimension
W X Y Z Q
SFKR00801 21 3.4 – – –
SFKR00802 21 3.4 – – –
SFKR01002 27 4.5 – – –
SFKR01004 36 4.5 8 4.5 M6
