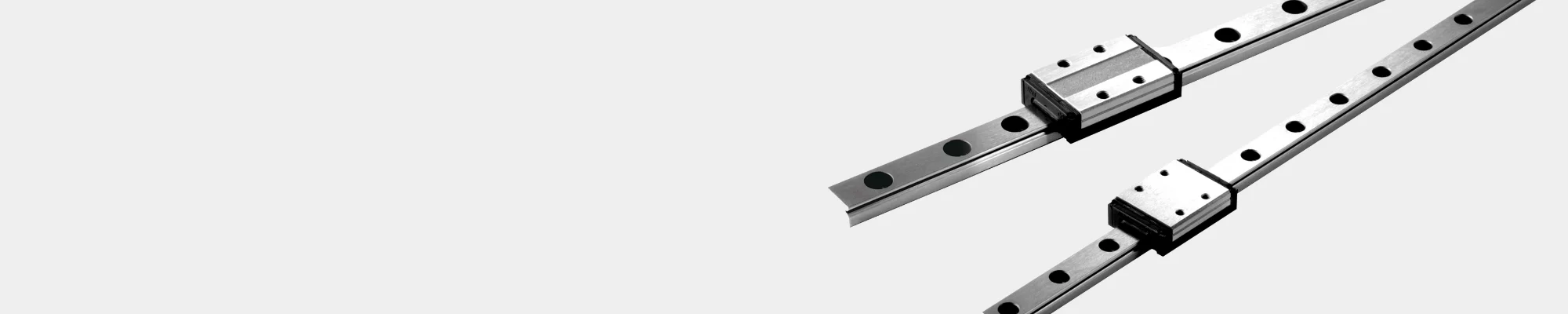

MSC Miniature Linear Guide

The PMI-MSC series is our Miniature linear guide series. Both rail and carriage are manufactured in stainless steel. Withstands corrosive environments better than normal steel linear guides. The carriage is narrow and normal length, enabling only top attachment.

No play with 0% preloading of dynamic load rating. Miniature linear guide are particularly suitable for smaller and lighter linear movements where a compact installation height is required.

Technical info

Technical dimensions

Rail size

Load & moment

Mounting Hole

Carriage Dimensions

Model No. External Dimension

Height

H

Width

W

Length

L

 W2 H2
MSC7M 8 17 23.6 5 1.5
MSC9M 10 20 31.1 5.5 2.2
MSC12M 13 27 34.6 7.5 3
MSC15M 16 32 43.5 8.5 4



Model No. Rail Dimension Weigth

Width

W1

Height

H1

 PitchP

E

Std.

 D x h x d Fastening Bolt

L0

Max

Rail

Kg/m
MSC7M 7 4.7 15 5 4.2×2.3×2.4 M2 490 0.22
MSC9M 9 5.5 20 7.5 6×3.3×3.5 M3 495 0.33
MSC12M 12 7.5 25 10 6×4.5×3.5 M3 1000 0.63
MSC15M 15 9.5 40 15 6×4.5×3.5 M3 1000 1.02



–

Model No. Basic Load Raiting Static Moment Raiting

Dynamic C

N

Static Co

N

Mp

Nm

My

Nm

MR

Nm
Single* Double* Single* Double*
MSC7M 940 1280 2.6 15.33 2.6 15.33 4.7
MSC9M 1710 2240 6.1 33.46 6.1 33.46 10.8
MSC12M 2620 3520 11.4 63.96 11.4 63.96 22.2
MSC15M 4520 5700 24.7 132.17 24.7 132.17 44.4

22.2

Model No. Carriage Dimension
B C S x l
MSC7M 12 8 M2x2.5
MSC9M 15 10 M3x3
MSC12M 20 15 M3x3.6
MSC15M 25 20 M3x4.2



Model No. Carriage Dimension Weight
L1 T G

Carriage

kg
MSC7M 18.4 3.5 0.8 13
MSC9M 25.8 4.5 1 29
MSC12M 28 6 1.5 40
MSC15M 36.1 7 G-M3 71
