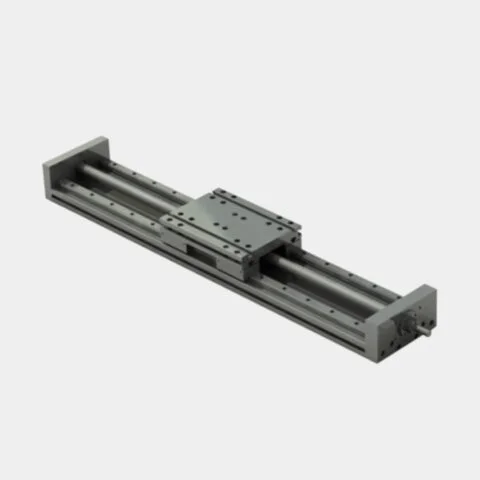

FKK Flexicarrier Module

The FKK Linear Module is intended for heavy movements. It is driven with a 32 or 40 mm ball screw and double 30-rails. The FKK linear module has extra torsional stiffness and can resist lifting forces up to 750 kg (vertical). It is equipped with a powerful two-row angle contact bearing on the drive side as well as double groove ball bearings on the loose side.

Technical info

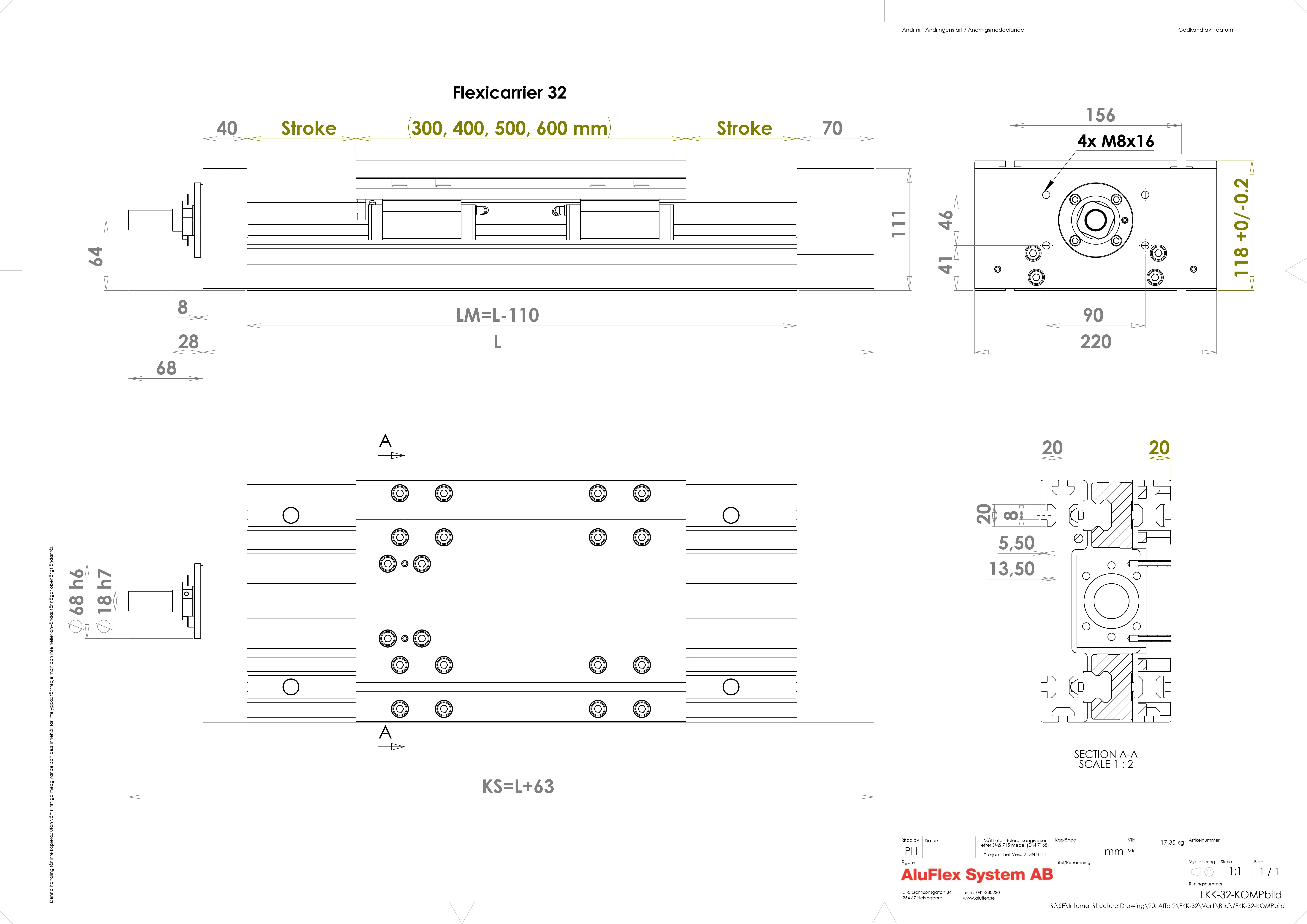

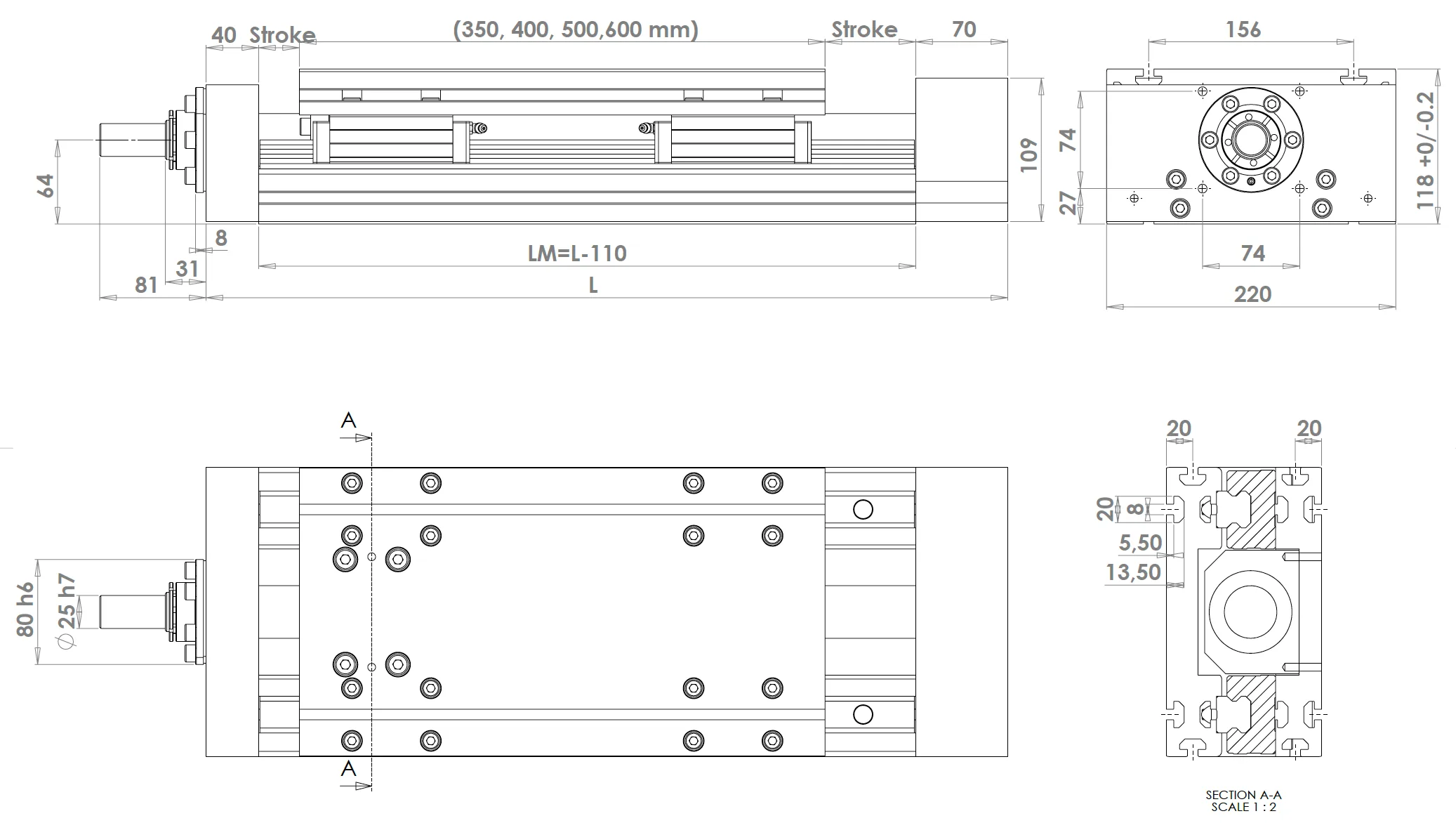

Technical dimensions

Load & Moment



Linear Module Carriage & Ball screw Load Rate Static [kN] Torque Static [Nm]
Type Cy (KN) Cz+ (KN) CZ- (KN) Mx0 (Nm) My0 (Nm) My0 (Nm) My0 (Nm) My0 (Nm)
Table Length         300 mm 400 mm 500 mm 600 mm
FKK30-220KGT32 MSA30S 138.6 220 165 12870 15650 24530 34750 46520
Ball Screw 32×10 32×20 32×32 Mz0 (Nm) Mz0 (Nm) Mz0 (Nm) Mz0 (Nm)
Coa, static Ball Screw 51500 51500 43900 14000 20900 27800 34800
Table Length         350 mm 400 mm 500 mm 600 mm
FKK30-220KGT40 MSA30LS 230.5 366 274.5 19480 29220 36740 53130 71550
Ball Screw 40×10 40×40 Mz0 (Nm) Mz0 (Nm) Mz0 (Nm) Mz0 (Nm)
Coa, static Ball Screw 89900 76200 25800 31530 43200 54750
