INOX-Runner

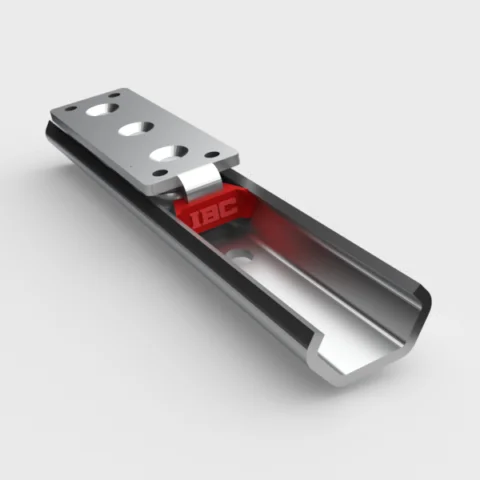

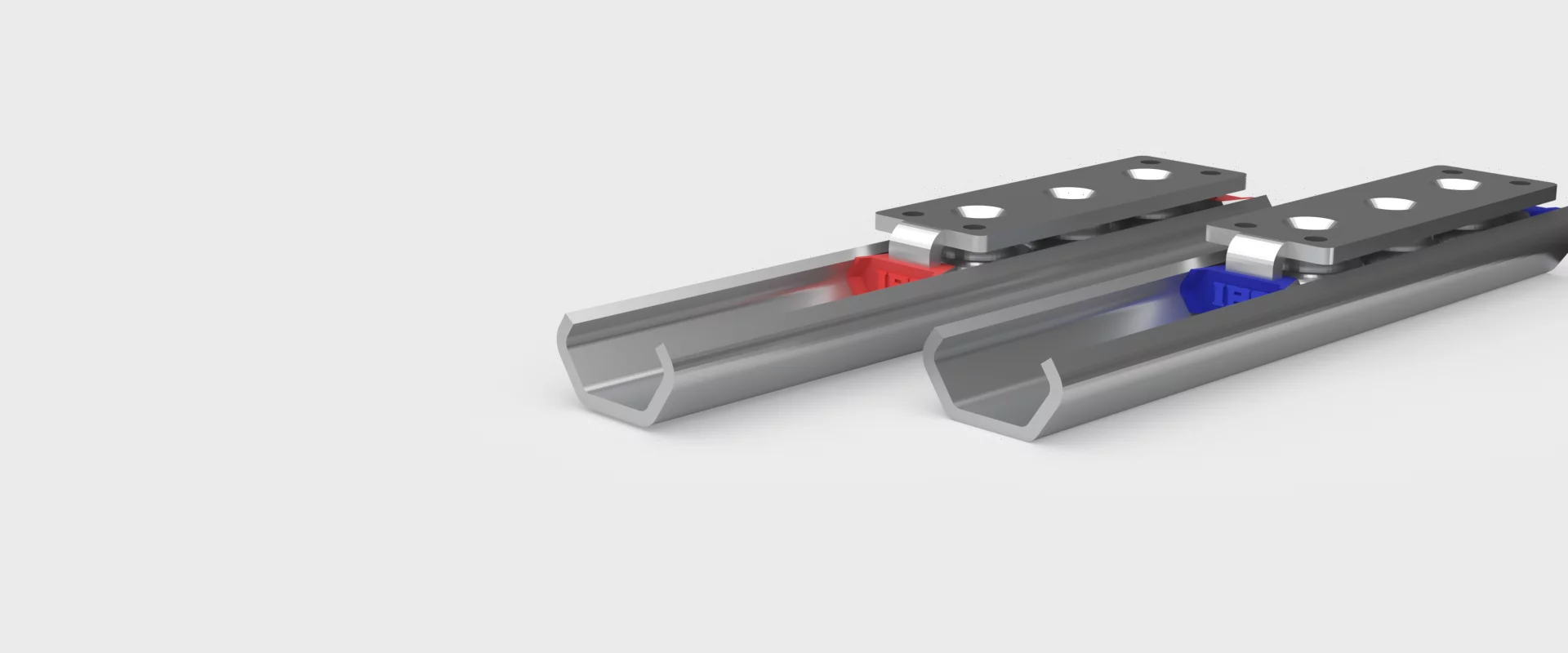

Innovative carrier system in stainless steel (AISI316L). INOX is available in size 30 and 45. Loads up to 1790 N / trolley. INOX-runner is available for approved grease and sealing for the food industry (blue seal). Also available for industrial approved grease and sealing for dirty and dusty environment (red seal). High and low temperature applications are also possible.
There are many different areas for INOX:
– The food industry and the beverage industry
– Medical technology and laboratory equipment
– Industrial applications
Technical info
Rail size
Carriage Dimension
Roller Dimension
Load And Moment
|
Rolling wheel Excentric |
Dimension |
la [mm] |
lt [mm] |
t1 [mm] |
t2 [mm] |
t3 [mm] |
B [mm] |
H [mm] |
T [mm] |
D [mm] |
Bolt hole |
Weight kg |
| S-LBX | 30 | 40 | 80 | 2 | 6.4 | 8.4 | 15 | 29.5 | 2.5 | 10 | M5 | 0.89 |
| 45 | 40 | 80 | 2 | 9 | 11 | 22 | 45.7 | 4 | 15.5 | M8 | 2.2 |
|
Rolling wheel Excentric |
Dimension |
B mm |
G mm |
A mm |
D mm |
F mm |
C mm |
E mm |
Weight kg |
| S-CBXE | 30 | 12,30 | 4,80 | 22,54 | 10,0 | M5 | 8.50 | 0,60 | 0.02 |
| 45 | 17,80 | 6,80 | 35,10 | 12,0 | m6 | 12,00 | 0,80 | 0,07 |
| Load ratings of carriage |
||
| Model | Radial stiffness C0rad | Axial stiffness C0ax |
| S-CB 30-21.2RS | 840 N | 420 N |
| S-CB 45-21.2RS | I790 N | 950 N |
