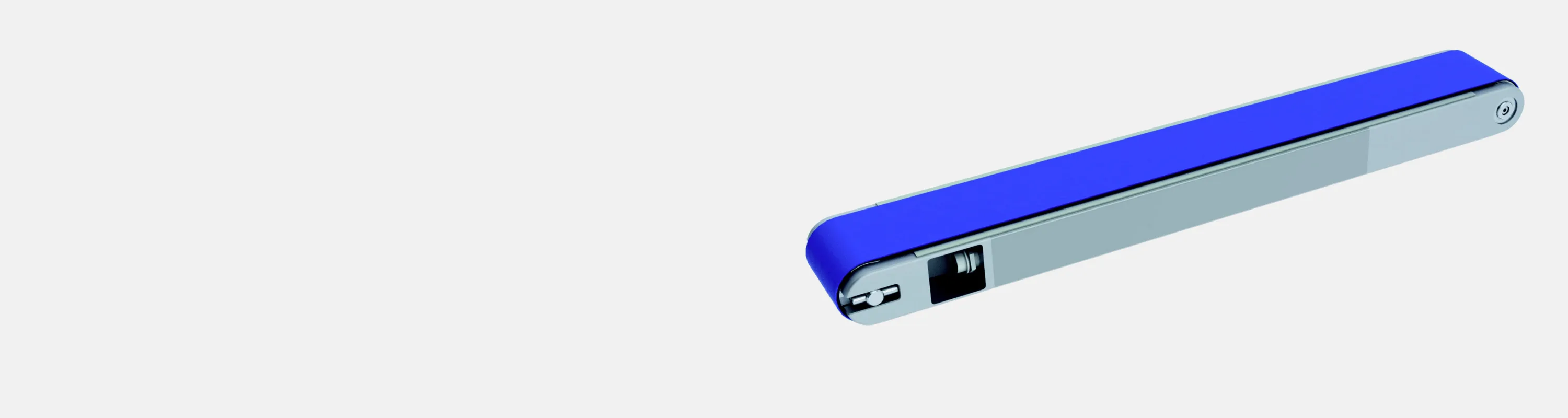

24V Mini Conveyor
The BCDM24V Mini Conveyor is a compact conveyor with an integrated internal drive, ideal for applications with limited space. Its streamlined design eliminates external motor interference, simplifying integration into systems. Key features include a 24V power supply with planetary gearbox, adjustable speeds based on load, and a choice of FDA-compliant conveyor belts. It offers options such as sliding bed in stainless steel supporting various customization needs.
The BCDM24V Mini Conveyor is also service-friendly, easily dismantling for maintenance in automated setups.
Technical info
Dimensions
| Conveyor length (L) | 370-2000 mm |
| Frame width (C) | 80, 100, 120, 140, 160, 180, 200 mm |
| Conveyor load | 5 kg/m |
| Drive | 24 V DC |
| Belt Speed * | 0,2 – 18 m/min |
| Conveyor Belt Material | PVC, PU, textile |
| Temperature | 10 – 60°C |
| Drum Diameter | 44 mm |
