Line XMS floor elements

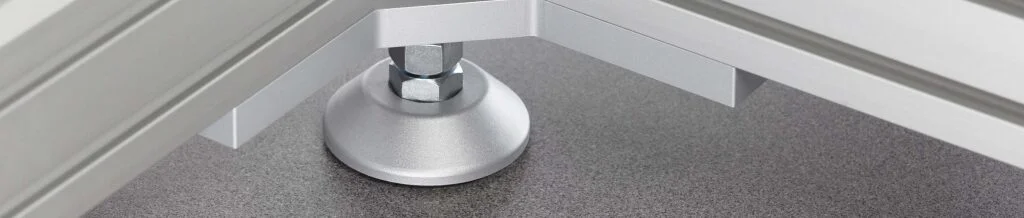

These special Base Plate/Transport Plates provide added stability for constructions built using Line XMS. Designed with a low-rise angle, they require relatively little space. However, the Base Plate/Transport Plates also transfer forces safely into adjacent horizontal profiles, without putting added strain on profile fastenings. This provides effective support for the fastening elements and boosts the rigidity of the machine frame when it is moved.
Products
Showing all 29 results
-
Knuckle Foot D80, M16x100, black
Art. no: 0.0.265.29 -
Knuckle Foot D80, M16x160, black
Art. no: 0.0.265.66 -
Knuckle Foot D80, M16x100, stainless
Art. no: 0.0.476.39 -
Foot Clamp X D80, white aluminium, similar to RAL 9006
Art. no: 0.0.495.96 -
Knuckle Foot X D40, M10x80, grey similar to RAL 7042
Art. no: 0.0.496.02 -
Knuckle Foot X D80, M16x100, white aluminium, similar to RAL 9006
Art. no: 0.0.496.03 -
L-Based Foot X 8 adjustable
Art. no: 0.0.600.13 -
Base Plate X 8 80×40, M8, white aluminium, similar to RAL 9006
Art. no: 0.0.600.55 -
Base Plate X 8 80×80, M16, white aluminium, similar to RAL 9006
Art. no: 0.0.600.56 -
Knuckle Foot X D40, M8x60, grey similar to RAL 7042
Art. no: 0.0.602.44 -
Knuckle Foot X D40, M8x80, grey similar to RAL 7042
Art. no: 0.0.602.46 -
Adjustable Foot X 8 PA 40×40
Art. no: 0.0.603.74 -
Base Plate X 8 80×40, M10, white aluminium, similar to RAL 9006
Art. no: 0.0.604.52 -
Base Plate X 8 80×80, M10, white aluminium, similar to RAL 9006
Art. no: 0.0.604.53 -
Base Plate X 8 80×40, M16, white aluminium, similar to RAL 9006
Art. no: 0.0.607.03 -
Knuckle Foot D80, M16x100, white aluminium, similar to RAL 9006
Art. no: 0.0.635.20 -
Knuckle Foot D80, M16x160, white aluminium, similar to RAL 9006
Art. no: 0.0.636.95 -
Base Plate X 8 200×200-90° M16
Art. no: 0.0.650.62 -
Base Plate X 8 160×160-90° M16
Art. no: 0.0.652.61 -
Base Plate X 8 240×160-2×90° M16
Art. no: 0.0.652.63 -
Base Plate X 8 40 R80-90° M16, white aluminium, similar to RAL 9006
Art. no: 0.0.670.45 -
Base Plate X 8 40 R40-90° M16, white aluminium, similar to RAL 9006
Art. no: 0.0.670.47 -
Base Plate X 8 80-45° M16, white aluminium, similar to RAL 9006
Art. no: 0.0.670.59 -
Base Plate X 8 40-45° M16, white aluminium, similar to RAL 9006
Art. no: 0.0.670.79 -
Base Plate X 8 160×160-90° R40 M16
Art. no: 0.0.698.63 -
Base Plate X 8 160×160-90° 45° M16
Art. no: 0.0.698.64 -
Base Plate X 8 40 160×160-90° M16
Art. no: 0.0.703.82 -
Base Plate X 8 40 160×160-90° 45° M16
Art. no: 0.0.704.22 -
Base Plate X 8 40 160×160-90° R40 M16
Art. no: 0.0.704.23
