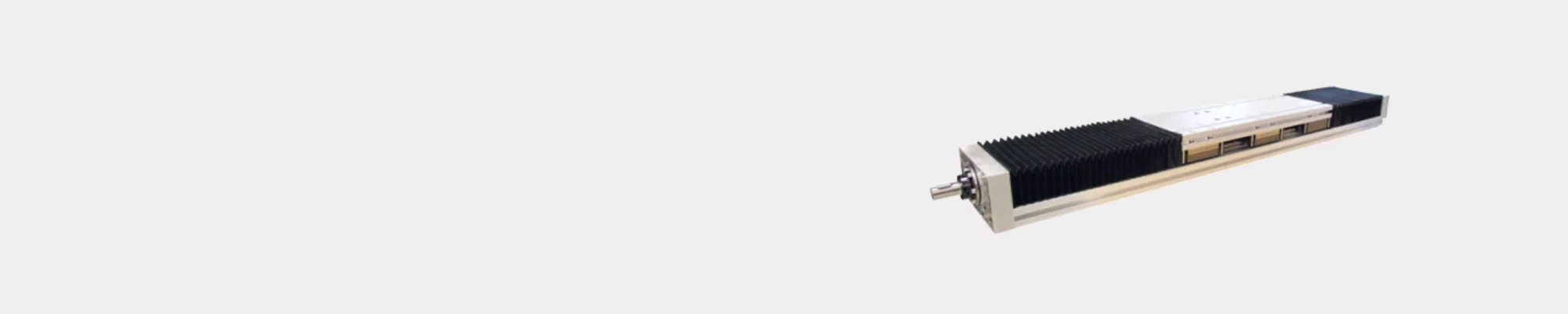

FKK Flexicarrier with Bellows

The FKK Linear Module is intended for heavy movements. It is driven with 32 or 40 mm ball screw and double 30-rails. The FKK linear module has extra torsional stiffness and can resist lifting forces up to 750 kg (vertical).

It is equipped with a powerful two-row angle contact bearing on the drive side as well as double groove ball bearings on the loose side. The FKK linear module can also be delivered with accordion type protective bellows.

Bear in mind that the bellows will then take up 10% of the linear module’s stroke length.

Technical info

Technical dimensions

Load & Moment



Linear Module Carriage & Ball screw Load Rate Static [kN] Torque Static [Nm]
Type Cy (KN) Cz+ (KN) CZ- (KN) Mx0 (Nm) My0 (Nm) My0 (Nm) My0 (Nm) My0 (Nm)
Table Length         300 mm 400 mm 500 mm 600 mm
FKK30-220KGT32 MSA30S 138.6 220 165 12870 15650 24530 34750 46520
Ball Screw 32×10 32×20 32×32 Mz0 (Nm) Mz0 (Nm) Mz0 (Nm) Mz0 (Nm)
Coa, static Ball Screw 51500 51500 43900 14000 20900 27800 34800
Table Length         350 mm 400 mm 500 mm 600 mm
FKK30-220KGT40 MSA30LS 230.5 366 274.5 19480 29220 36740 53130 71550
Ball Screw 40×10 40×40 Mz0 (Nm) Mz0 (Nm) Mz0 (Nm) Mz0 (Nm)
Coa, static Ball Screw 89900 76200 25800 31530 43200 54750
