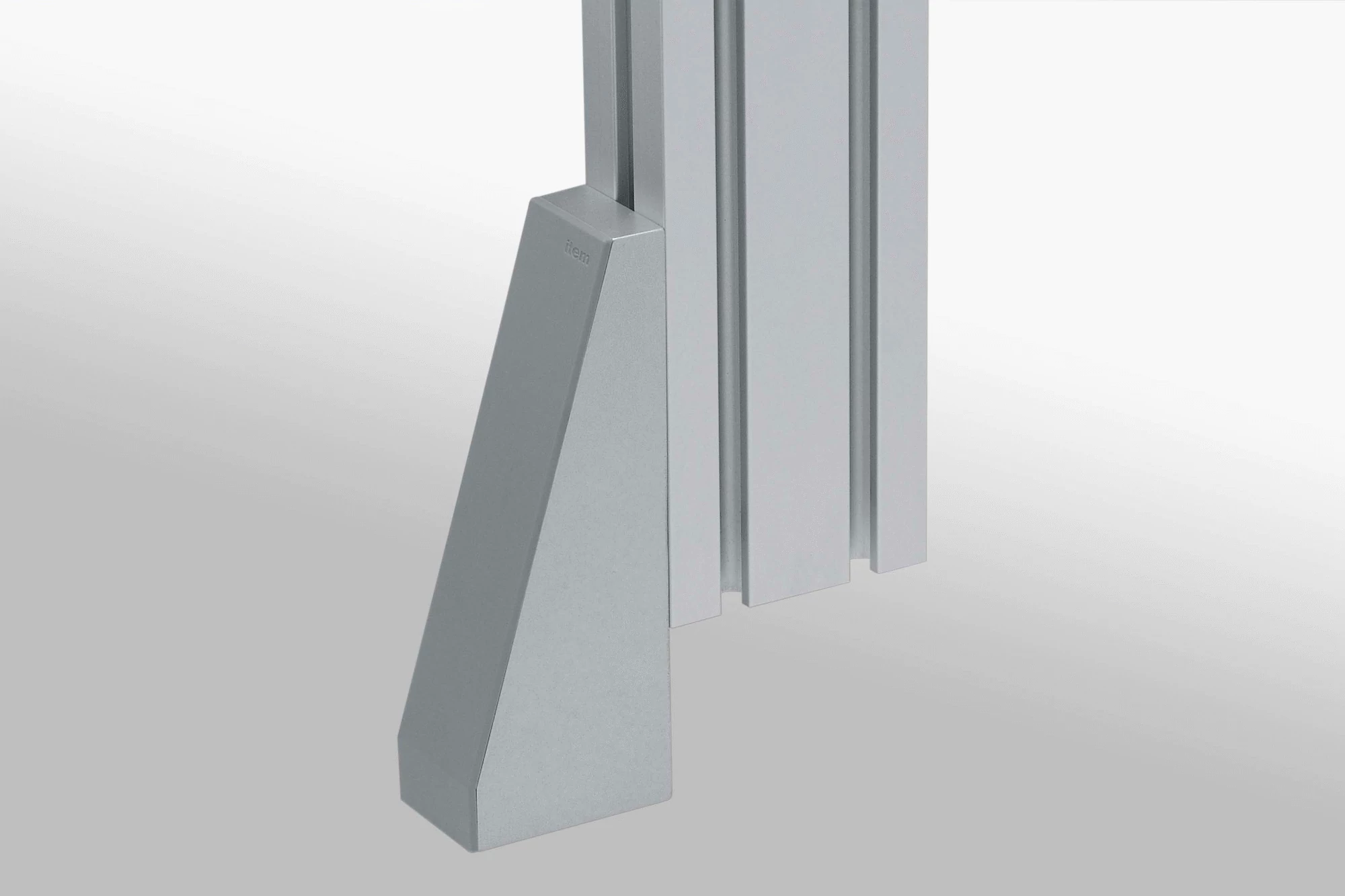

L-Based Foot X 8 adjustable
Housing, die-cast aluminium, white aluminium Cap, PA-GF, grey T-Slot Nut V 8 St M8, bright zinc-plated Button-Head Screw ISO 7380-M8x80, St, bright zinc-plated Button-Head Screw ISO 7380-M8x16, St, bright zinc-plated Square nut, St, bright zinc-plated Washer DIN 433-8.4, St, bright zinc-plated
Scope of Delivery
Housing, die-cast aluminium, white aluminium Cap, PA-GF, grey T-Slot Nut V 8 St M8, bright zinc-plated Button-Head Screw ISO 7380-M8x80, St, bright zinc-plated Button-Head Screw ISO 7380-M8x16, St, bright zinc-plated Square nut, St, bright zinc-plated Washer DIN 433-8.4, St, bright zinc-plated
Properties
| Line | line X |
|---|---|
| line 8 | line 8 |
| ESD-safe | No |
| Weight | m = 342 g |
| Force max | Fmax. = 6000 N |
| Delivery unit | 1 set |
L-Based Feet are suitable for fastening light or heavy equipment to the wall or floor. They are fastened to the profile using a fastening screw and T-Slot Nut. Floor-Fastening Sets up to an M10 thread size can be used for connection to the wall or floor (see Section 2.3 of the MB Building Kit System Comprehensive Catalogue – Accessories for Floor Elements).
L-Based Foot X 8 adjustable provides a simple method of levelling equipment on uneven floors by means of height adjustment. The adjustment is made by turning the adjusting screw (1). The selected height is then fixed by tightening the fastening screw at the side (2). The Floor-Fastening Set can be screwed into L-Based Foot X 8 using a socket wrench.
