| Base Plate X 8 40 160×160-90° M16 | CADPDFRFQ |

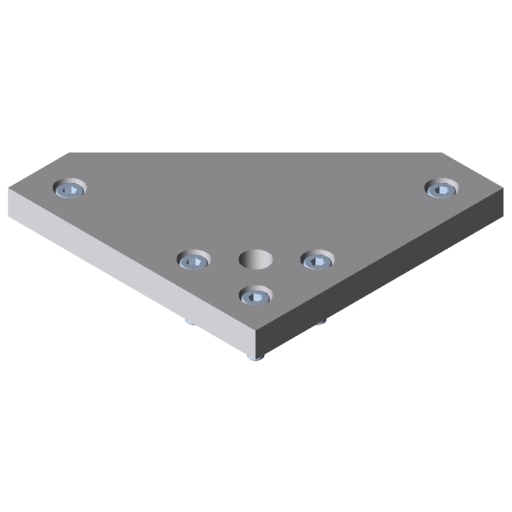

Preview
Base Plate X 8 40 160×160-90° M16

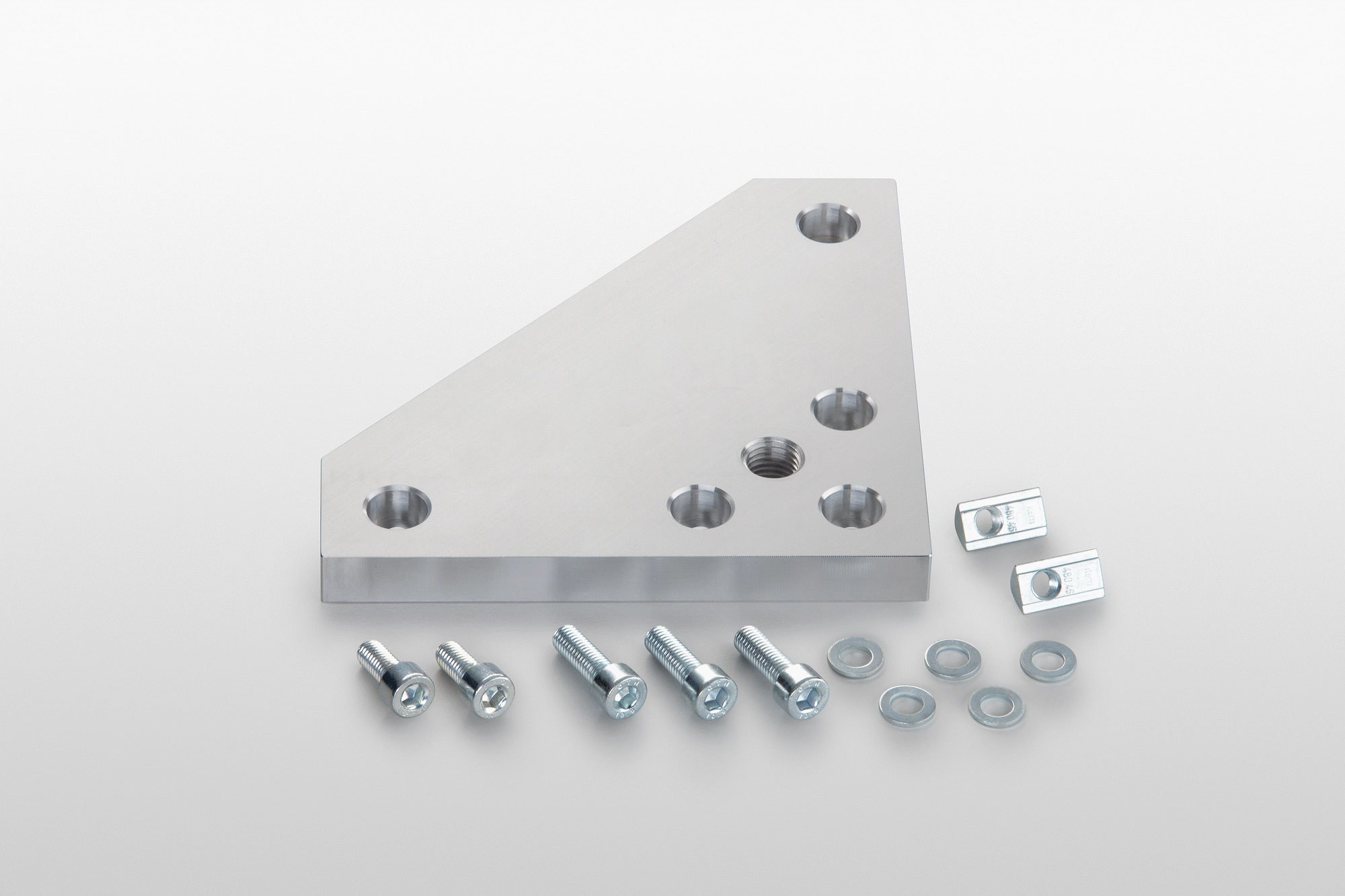

Plate, AI, white aluminium similar to RAL 9006 3 Hexagon Socket Head Cap Screws DIN 912-M8x25, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912-M8x18, St, bright zinc-plated 5 washers DIN 433-8.4, St, bright zinc-plated 2 T-Slot Nuts V 8 St M8, St, bright zinc-plated
Scope of Delivery
Plate, AI, white aluminium similar to RAL 9006 3 Hexagon Socket Head Cap Screws DIN 912-M8x25, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912-M8x18, St, bright zinc-plated 5 washers DIN 433-8.4, St, bright zinc-plated 2 T-Slot Nuts V 8 St M8, St, bright zinc-plated
Properties
| Line | line X |
|---|---|
| ESD-safe | Yes |
| Weight | m = 1.673 kg |
| Delivery unit | 1 set |
Compatible Base Plates and screw-attached Caps are also available specifically to suit Profiles X 8 M45 - XMS with cable conduits that are accessible from outside.
