| Timing-Belt Reverse Unit 5 40 R10 with Bore D12 | CADPDFRFQ |
Preview
Timing-Belt Reverse Unit 5 40 R10 with Bore D12
Timing-Belt Reverse Unit, die-cast Al, black Ball-bearing timing pulley with ⌀ 12 H7 bore Hub length: 18 mm One revolution equivalent to 140 mm Effective radius r e = 22.3 mm Friction torque at 1‰ preload on timing belt: T F = 0.05 Nm Max. load: T D = 3.3 Nm Belt length inside Reverse Unit in case of 90° reversal: 110 mm 180° reversal (emerging at 80 mm side): 135 mm 180° reversal (emerging at 64 mm side): 150 mm 2 Universal-Fastening Sets 5, die-cast zinc, bright zinc-plated Pitch p = 5 mm Number of teeth n = 28 Notes on Use and Installation

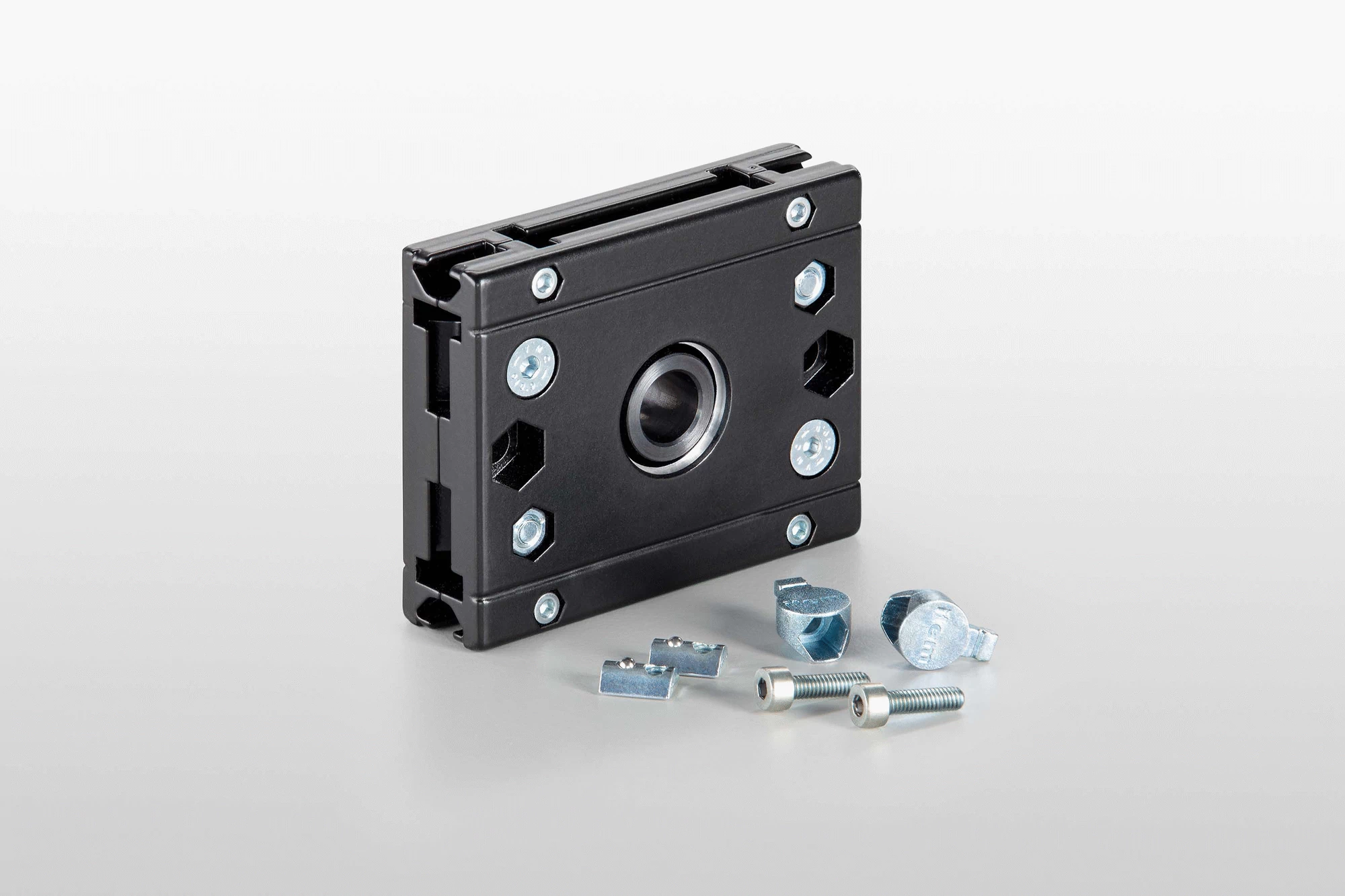

Scope of Delivery
Timing-Belt Reverse Unit, die-cast Al, black Ball-bearing timing pulley with ⌀ 12 H7 bore Hub length: 18 mm One revolution equivalent to 140 mm Effective radius r e = 22.3 mm Friction torque at 1‰ preload on timing belt: T F = 0.05 Nm Max. load: T D = 3.3 Nm Belt length inside Reverse Unit in case of 90° reversal: 110 mm 180° reversal (emerging at 80 mm side): 135 mm 180° reversal (emerging at 64 mm side): 150 mm 2 Universal-Fastening Sets 5, die-cast zinc, bright zinc-plated Pitch p = 5 mm Number of teeth n = 28 Notes on Use and Installation
Properties
| line 5 | line 5 |
|---|---|
| ESD-safe | No |
| Weight | m = 259.8 g |
| Delivery unit | 1 set |

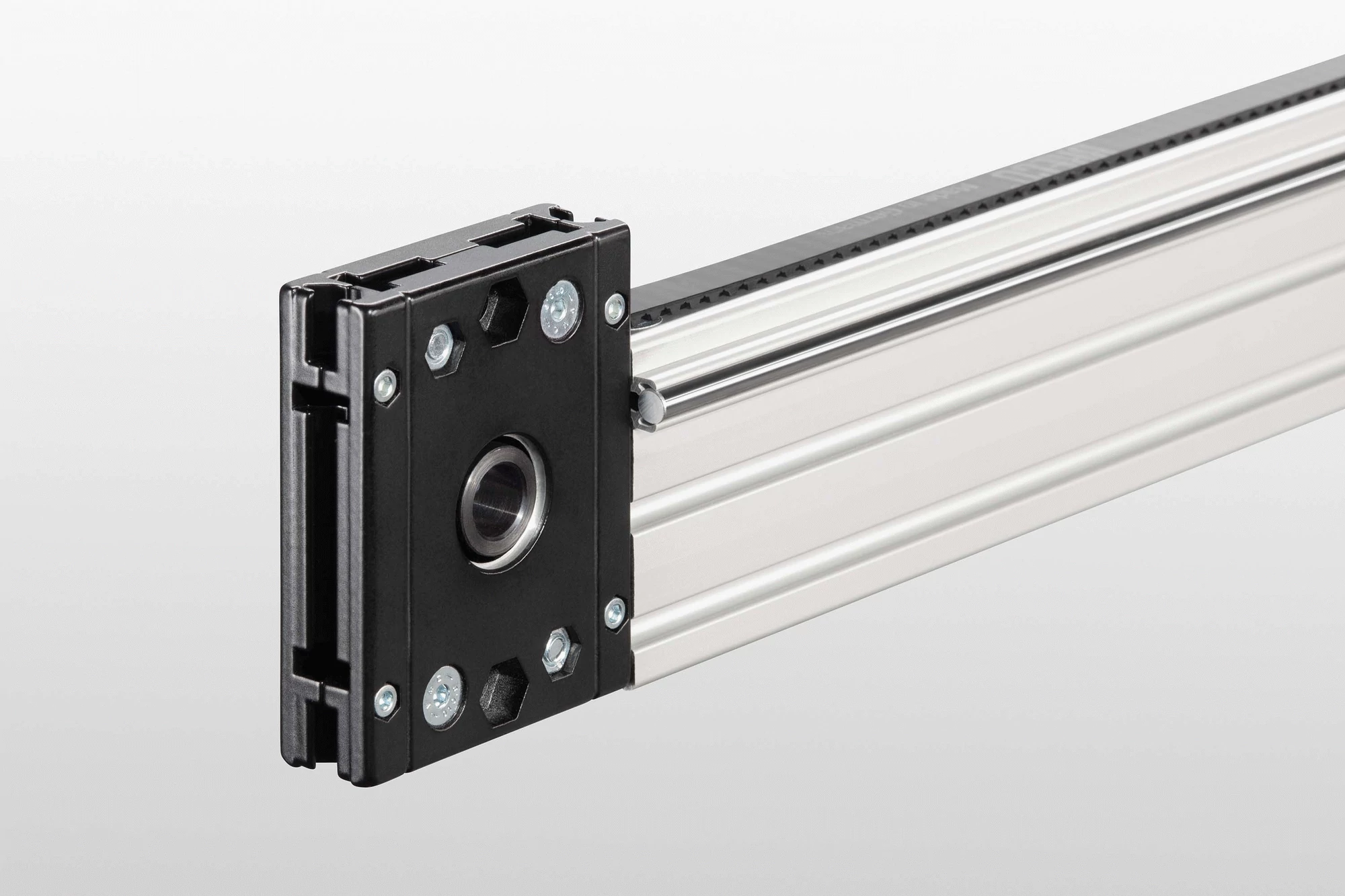

Creating customised Linear Units has never been easier! item Timing-Belt Reverse Units provide a reliable basis for linear axes using a timing-belt drive. The models with a D12, D15 or D34 bore are designed to support a backlash-free connection to item Motors and Gearboxes without requiring hub machining. The expanding hub couplings of Drive Sets ZU and Drive Set 8 D40/D15 can create a friction-based connection between all drive components. Everything fits together seamlessly without the need for machining. The item Automation System offers a wide selection of Gearboxes and servomotors with absolute encoders or resolvers, which helps reduce the complexity of solutions and create dependable Linear Units with a fast timing-belt drive. The universal Drive Sets from item are used to connect virtually any motor. Their coupling bore can be enlarged to match the drive shaft. The item Timing-Belt Reverse Units have been optimised for different profile and timing belt widths. The timing belt can be redirected by 90° or 180° inside the casing. The durable timing pulley, the robust casing and the use of T-Slot Nuts for installation ensure things run smoothly even when under load.
