Synchronising Set KRF 8 80 ZR

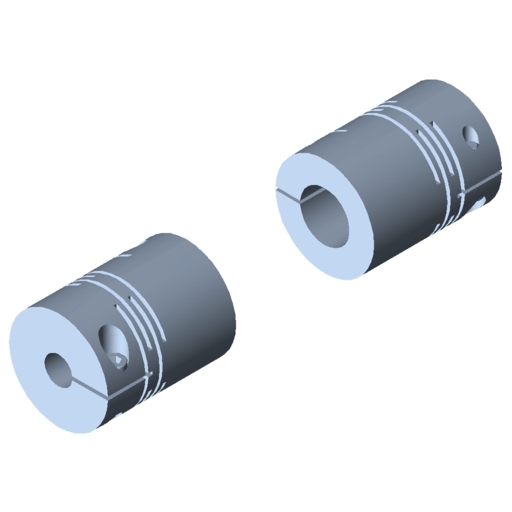

2 equaliser couplings D50, St, stainless Tightening torque, clamping hub screw: 14.5 Nm
Scope of Delivery
2 equaliser couplings D50, St, stainless Tightening torque, clamping hub screw: 14.5 Nm
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 1.24 kg |
| Delivery unit | 1 set |

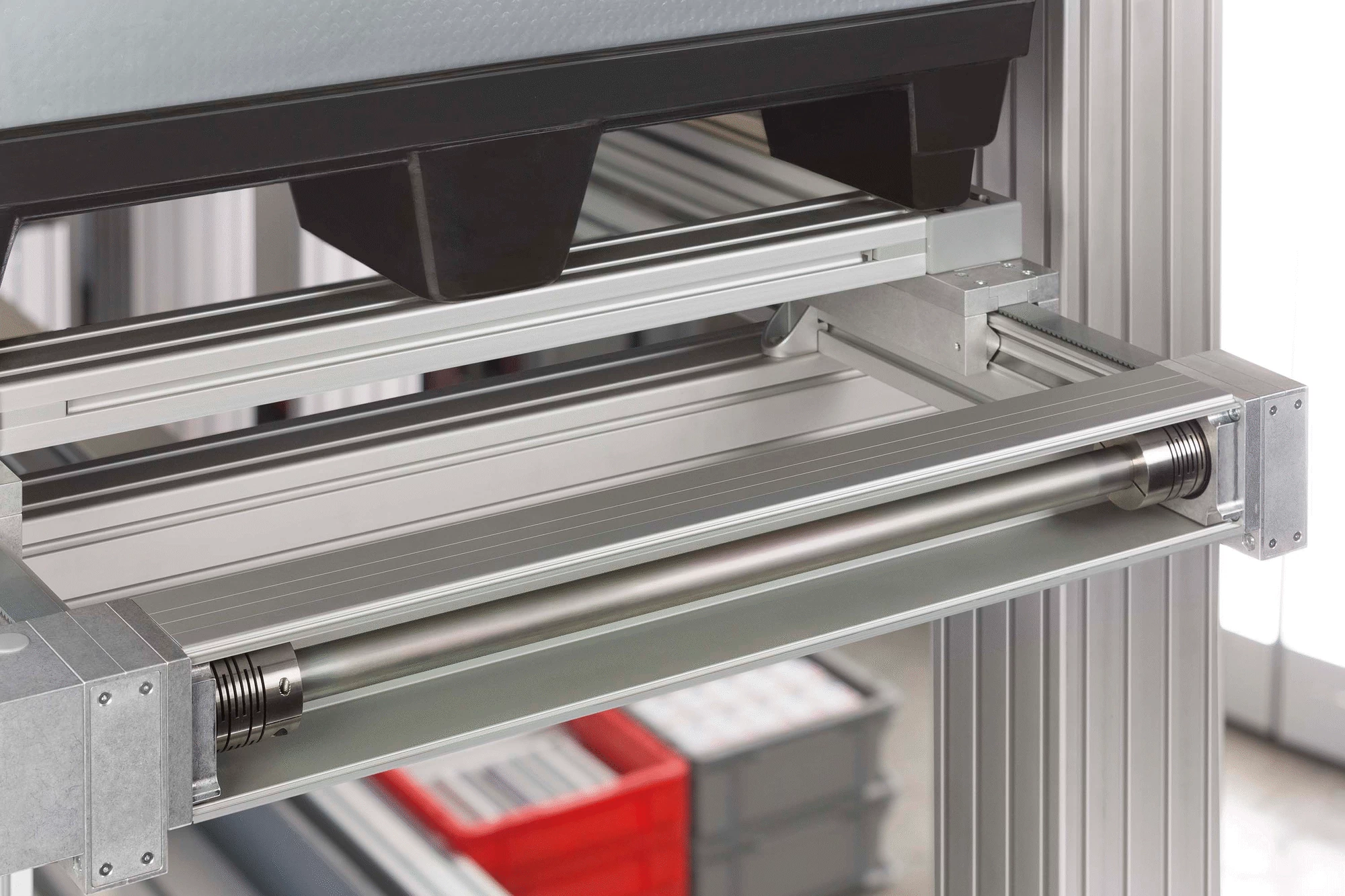

The robust equaliser couplings made from stainless steel connect the synchronising shaft to Linear Units KRF. Tube D25x3 (0.0.609.83) is required as a shaft. Note: To make installation easier, the protective layer of zinc should be removed from the ends of the steel tube.
b = a - 80 a = distance between Linear Units b = length of shaft
The permissible speed of the Synchroniser Shaft depends on its length. n = Rotational speed of the Synchroniser Shaft a = Distance between Linear Units
