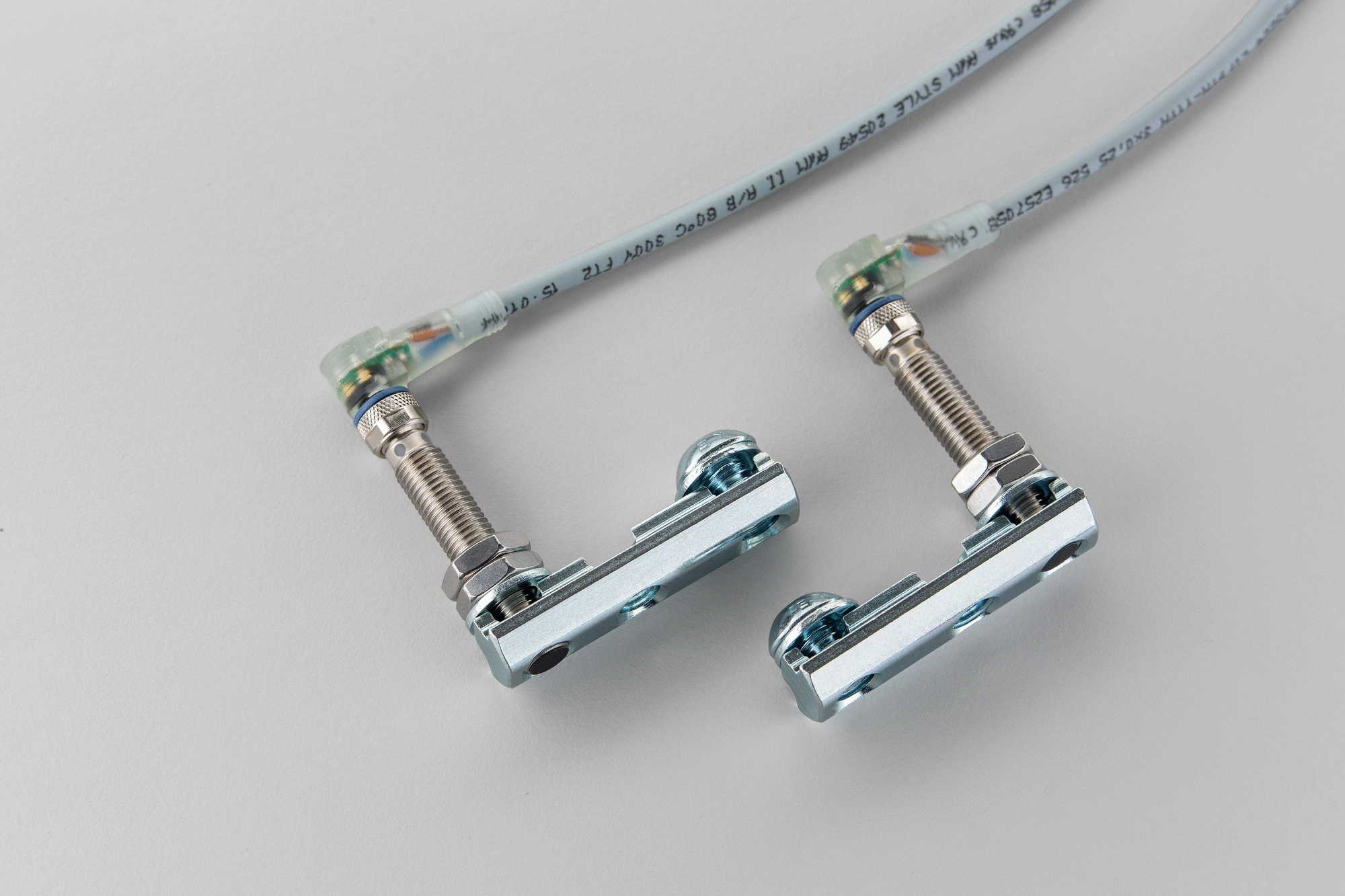

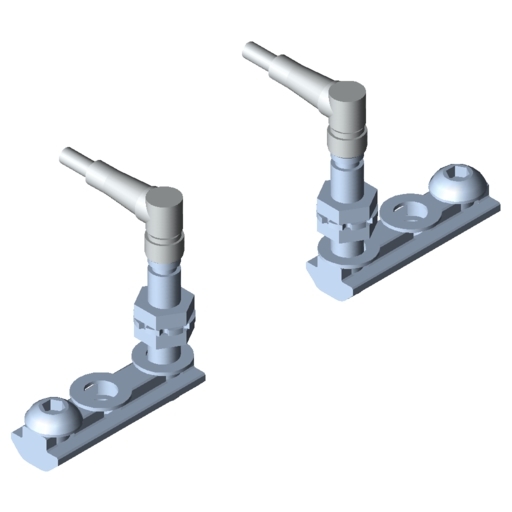

Proximity Switch Set LRE NO, plug-in
2 Proximity Switch fixings 8 2 Proximity Switches M8, plug-in 2 Proximity-Switch Connecting Cables, l = 5 m, d = 4 mm 2 Proximity-Switch Cams Inductive Proximity Switch, positive switching, suitable for installation in thread M8x1 Voltage = 10…30 V DC Max. switching current = 200 mA Sensing range = 1.5 mm LED control display
Scope of Delivery
2 Proximity Switch fixings 8 2 Proximity Switches M8, plug-in 2 Proximity-Switch Connecting Cables, l = 5 m, d = 4 mm 2 Proximity-Switch Cams Inductive Proximity Switch, positive switching, suitable for installation in thread M8x1 Voltage = 10...30 V DC Max. switching current = 200 mA Sensing range = 1.5 mm LED control display
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 405 g |
| Delivery unit | 1 pce. |
Always know your limits! item Proximity Switches are used for homing and for identifying the end positions on Linear Units. They are inductive devices and send their signals to the Controller via a connecting cable. The exact combination of components varies according to the model in use and where it is installed. Proximity Switch Sets contain all the components needed for Linear Units KRF, LRE and KGT. When placing an order, please note that some Proximity Switches are available in NO (normally open) and NC (normally closed) versions. Note: item MotionSoft ® commissioning software supports the use of Proximity Switches with item Controllers to ensure systems can be set up very quickly.
Possible arrangement of Proximity Switches 8 and Proximity-Switch Cams 8: The Proximity-Switch Cams run through the Timing-Belt Reverse Units. Particularly suitable when used with the drive end Timing Belt Reverse Unit for simplifying cable routing between the drive unit, Proximity Switch and motor control unit.
Possible arrangement of Proximity Switches 8 and Proximity-Switch Cams 8: The Proximity-Switch Cams do not run through the Timing-Belt Reverse Units.
