Mortise Lock 40/9mm
1 Einsteckschloss 40/9mm, Edelstahl matt 1 Schließblech, St, rostfrei, matt 6 Befestigungsschrauben, St, rostfrei 3 Nutensteine 8 Zn M5
Scope of Delivery

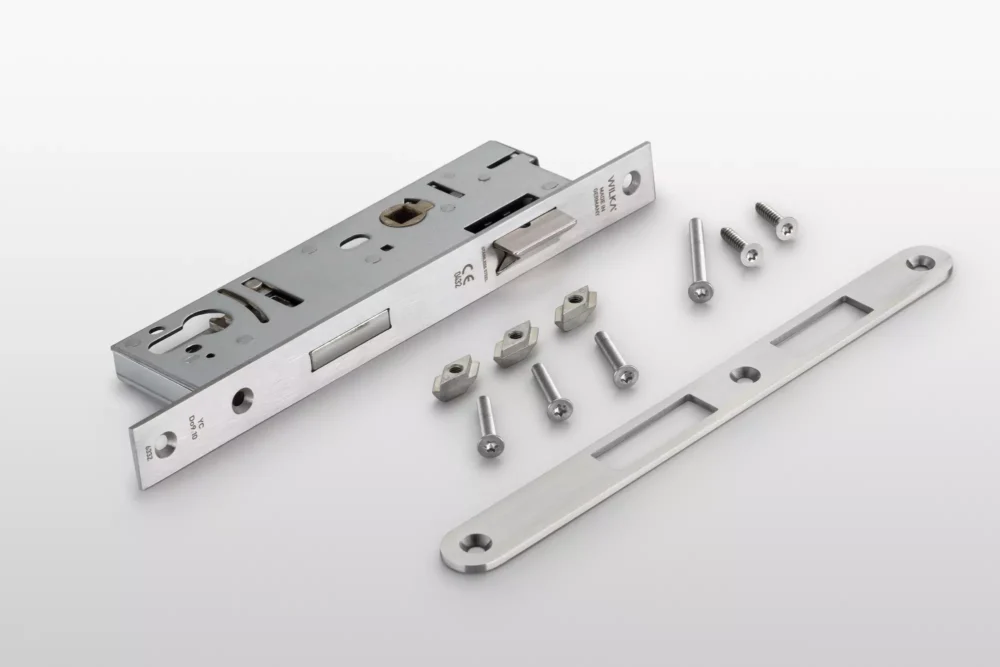

1 mortise lock 40/9mm, matt stainless steel 1 strike plate, St, stainless, matt 6 fastening screws, St, stainless 3 T-Slot Nuts 8 Zn M5
Properties
| ESD-safe | No |
|---|---|
| Weight | m = 692 g |
| Delivery unit | 1 set |

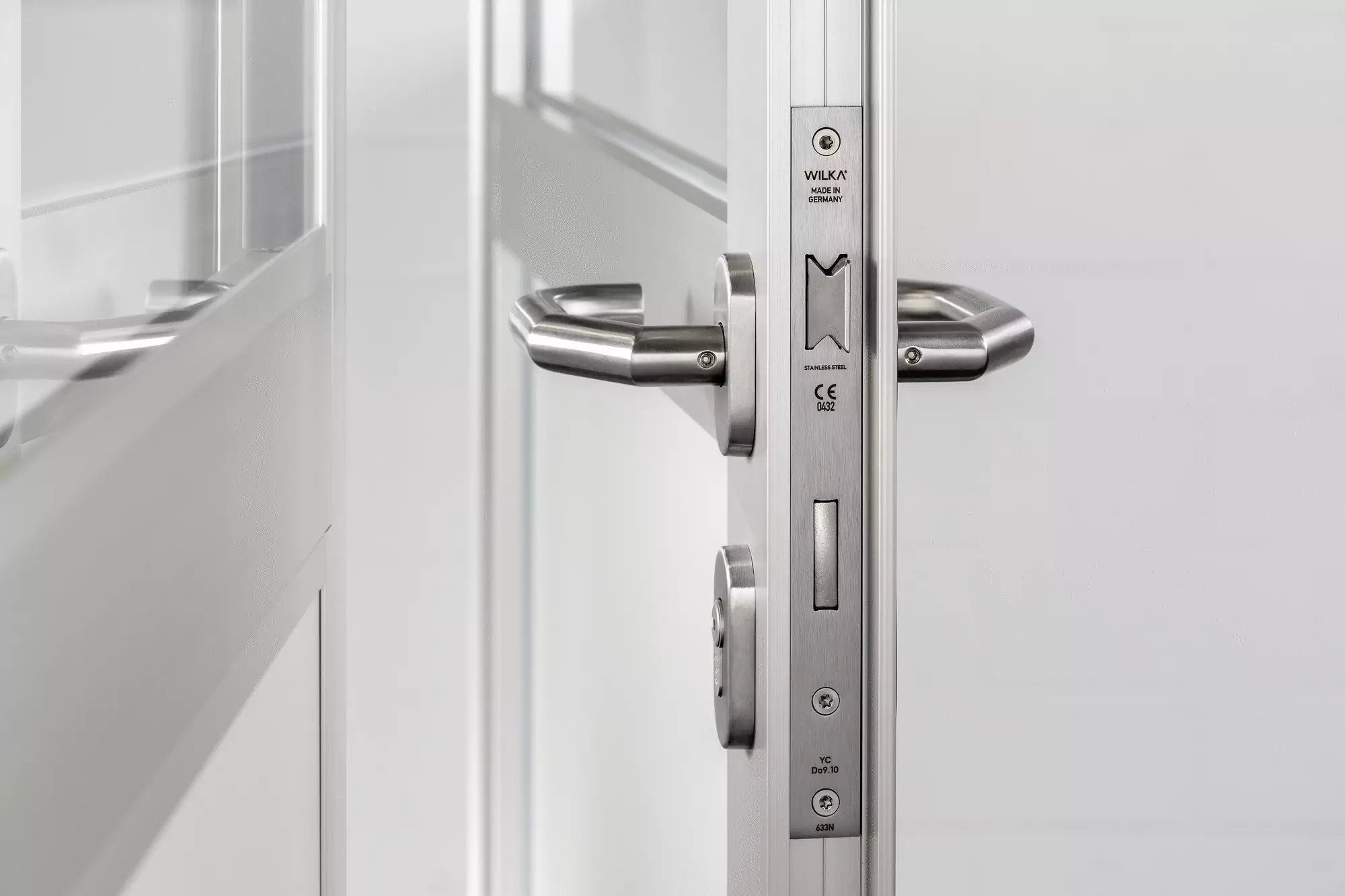

The item Access Door system is based on components that have been carefully coordinated to produce highly functional door solutions. The components are available both separately and as a standardised or configurable door solution. The finished door can be combined with an outer door frame made of Line 8 profiles (standard or light variants). It can also be opened and closed from both sides and features an all-round seal.
Mortise Lock 40/9mm is a lock unit consisting of a lock, strike plate and fixings. It must be combined with Door Handle Set 9mm (0.0.711.15), which is available separately. The Mortise Lock is compatible with 30/30 double profile cylinder locks such as Cylinder Lock DZ 30/30 (0.0.716.90). Both profiles need to be machined accordingly before they can accommodate the lock and strike plate. Please consult the installation guide for precise fastening dimensions.

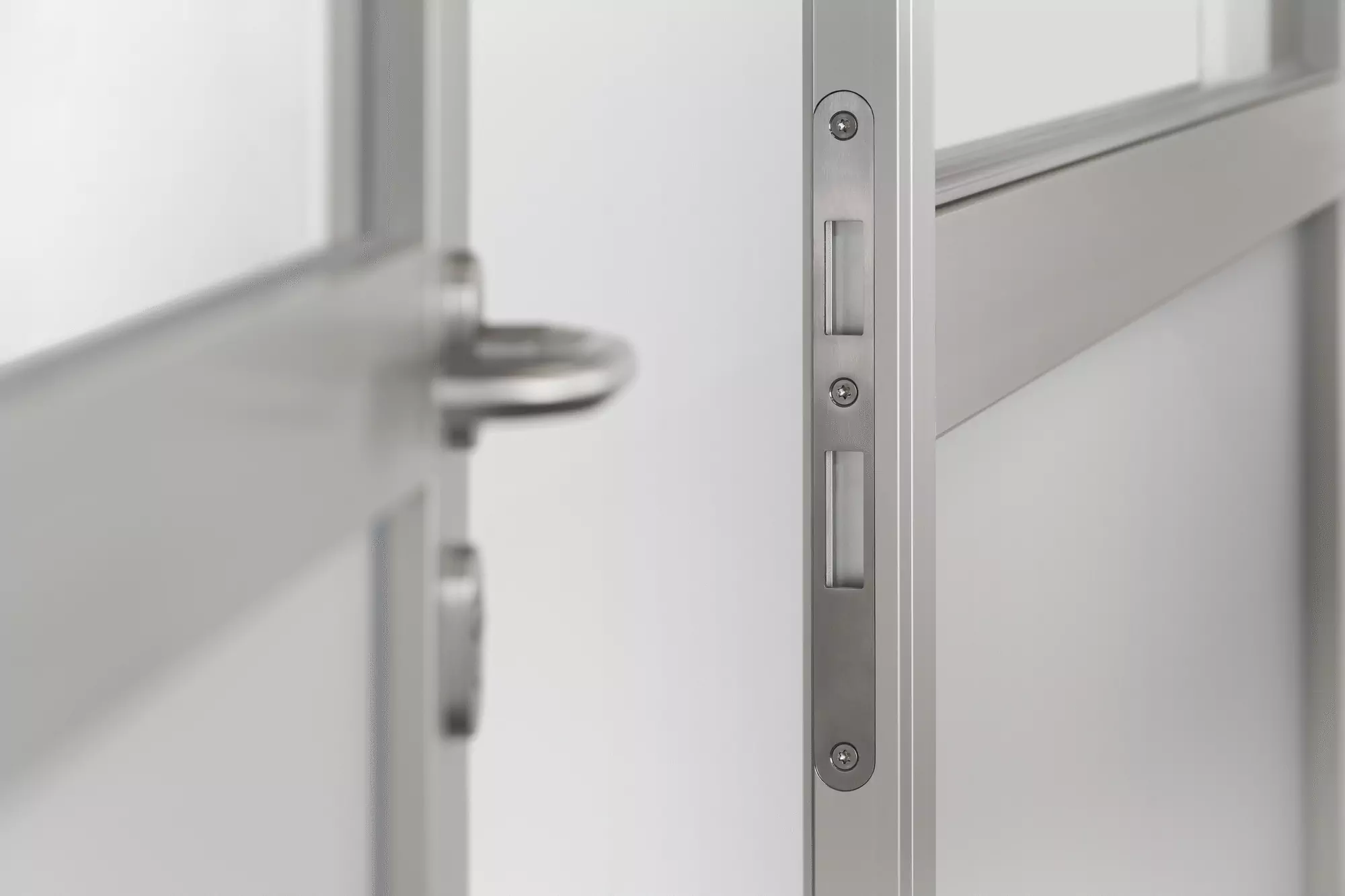

This door lock is fitted into Door Profile 8 103x40 (0.0.706.51). The opening direction can be switched by turning around the latch. The strike plate is fitted into Frame Profile 8 31x20 (0.0.707.73).
