| Linear Unit LRE 8 D25 200×80 ZU 80 R50 | CADPDFRFQ |

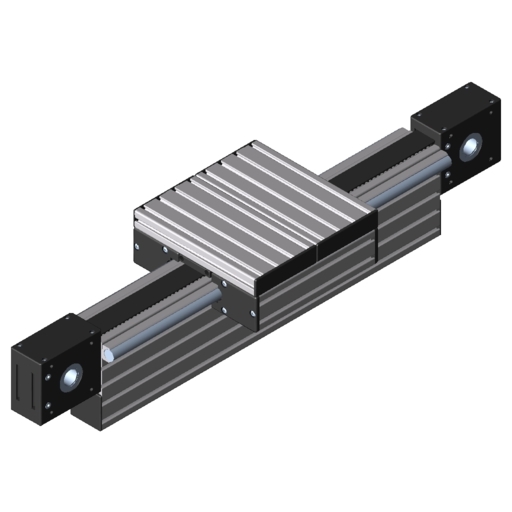

Preview
Linear Unit LRE 8 D25 200×80 ZU 80 R50
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Moment of Inertia, torsional | It = 489.79 cm4 |
| Moment of Inertia, x-axis | Ix = 2181.99 cm4 |
| Moment of Inertia, y-axis | Iy = 427.59 cm4 |
| Total mass | m = m1 + H * m2 |
| Maximum operating load | Fx max = 2100 N |
| Maximum force in direction y | Fy max = 7600 N |
| Maximum force in direction z | Fz max = 5200 N |
| Weight | m = 34.414781 kg |

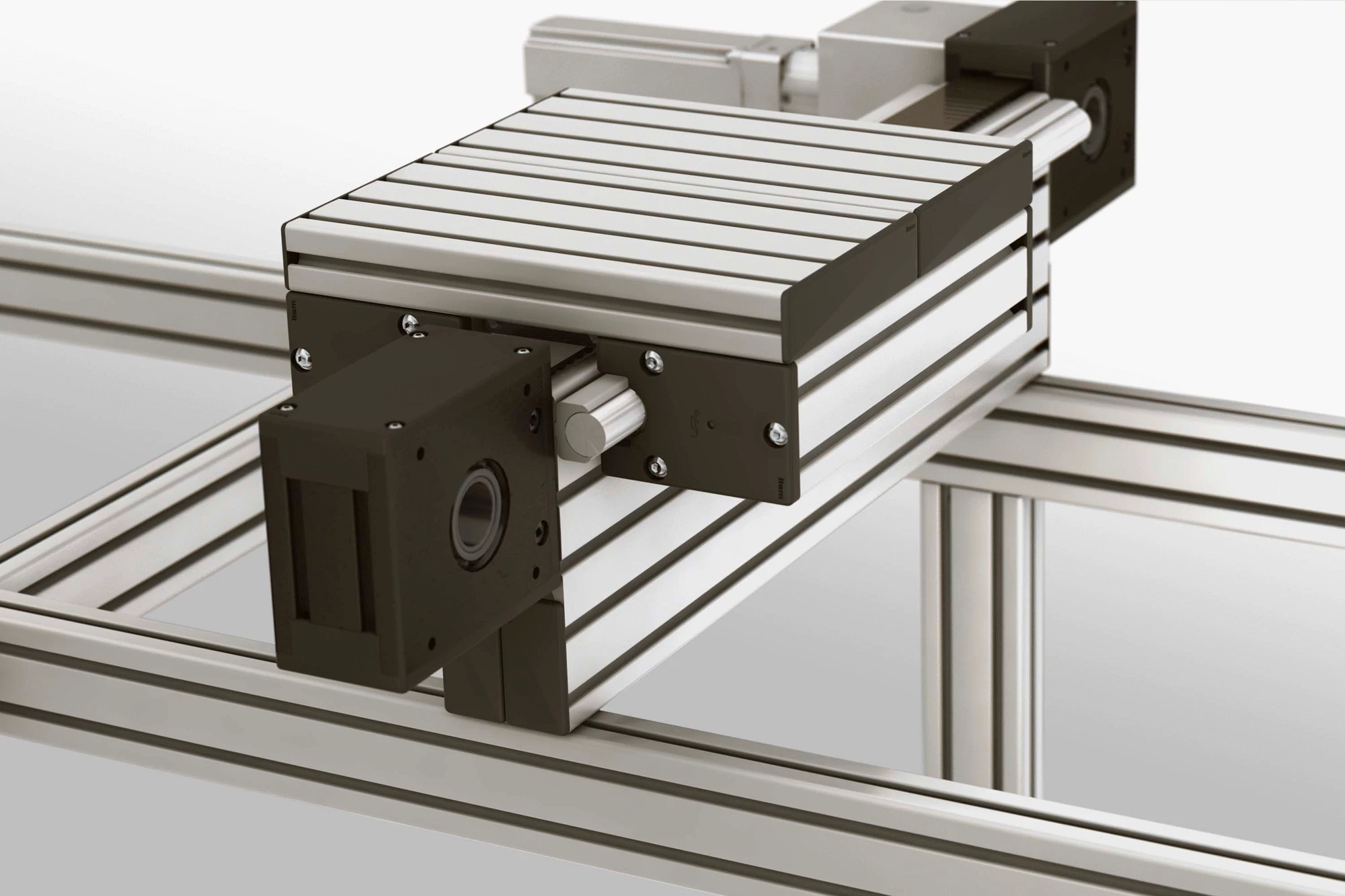

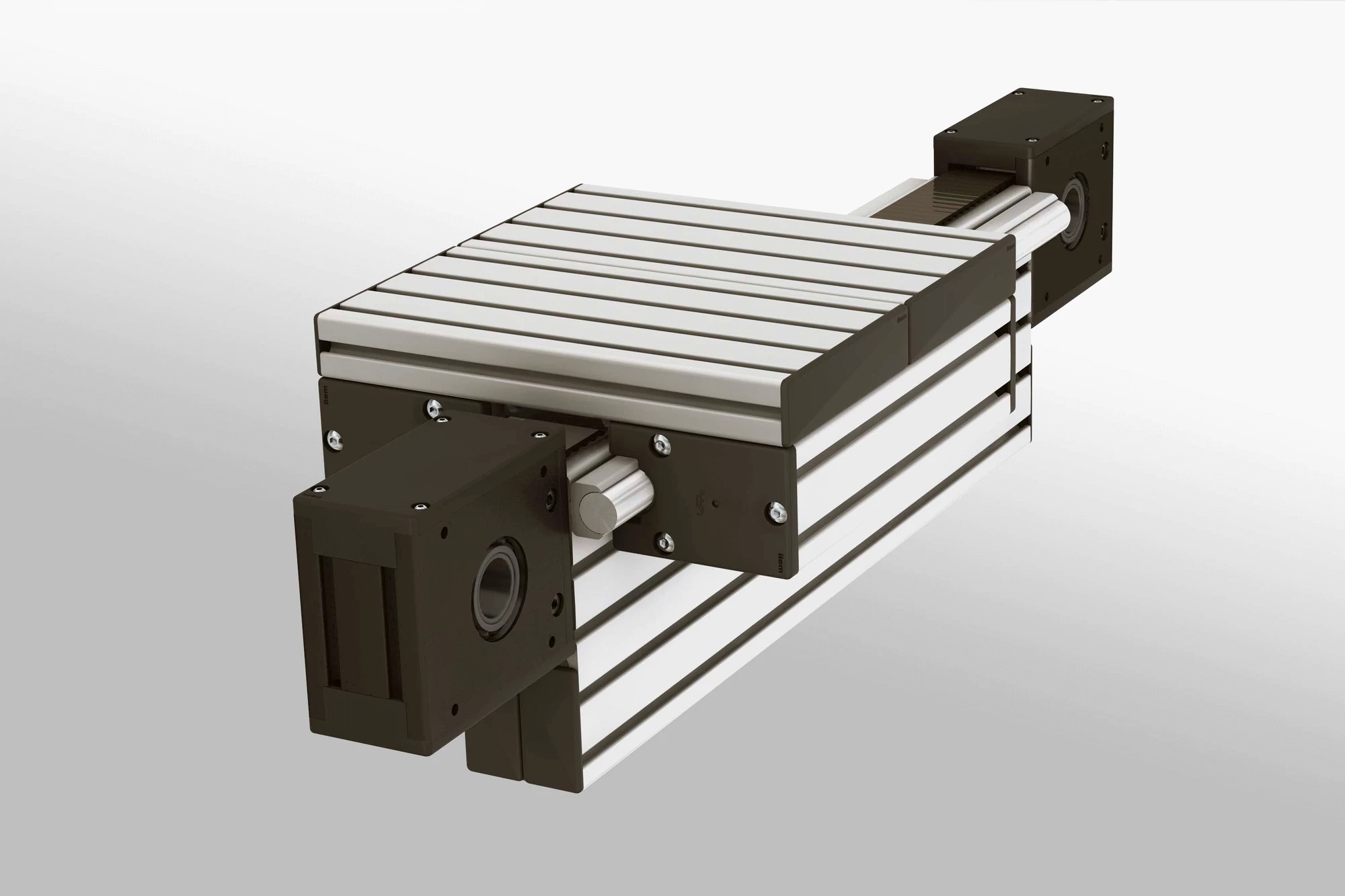

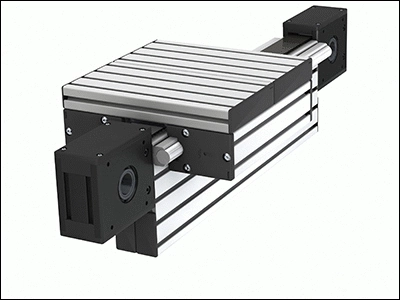

The Linear Units for heavy-duty use. Linear Units LRE 8 D25 can transport payloads up to 5200 N. Solid roller elements, stable steel shafts and support profiles with a cross-section measuring up to 200 x 80 mm make it possible to transport these types of load. The roller guide and high-performance timing-belt drive create the ideal conditions for high-speed operation. A 50 mm-wide timing belt is also available for high operating forces generated by hard acceleration and deceleration. Various support profiles can be selected to minimise profile deflection in the case of high loads and large support spans. The application is fastened to the stable carriage via the system grooves on the carriage plate.
h = horizontal orientation v = vertical orientation
Travel speed v in relation to input speed n (timing-belt drive)
Operational force Fx dependent on input torque M (timing-belt drives Fx > 500N)
