| Linear Unit LRE 8 D14 80×40 ZU 80 R25 | CADPDFRFQ |

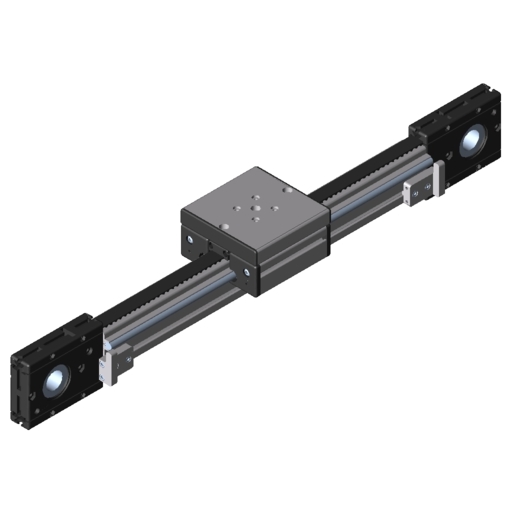

Preview

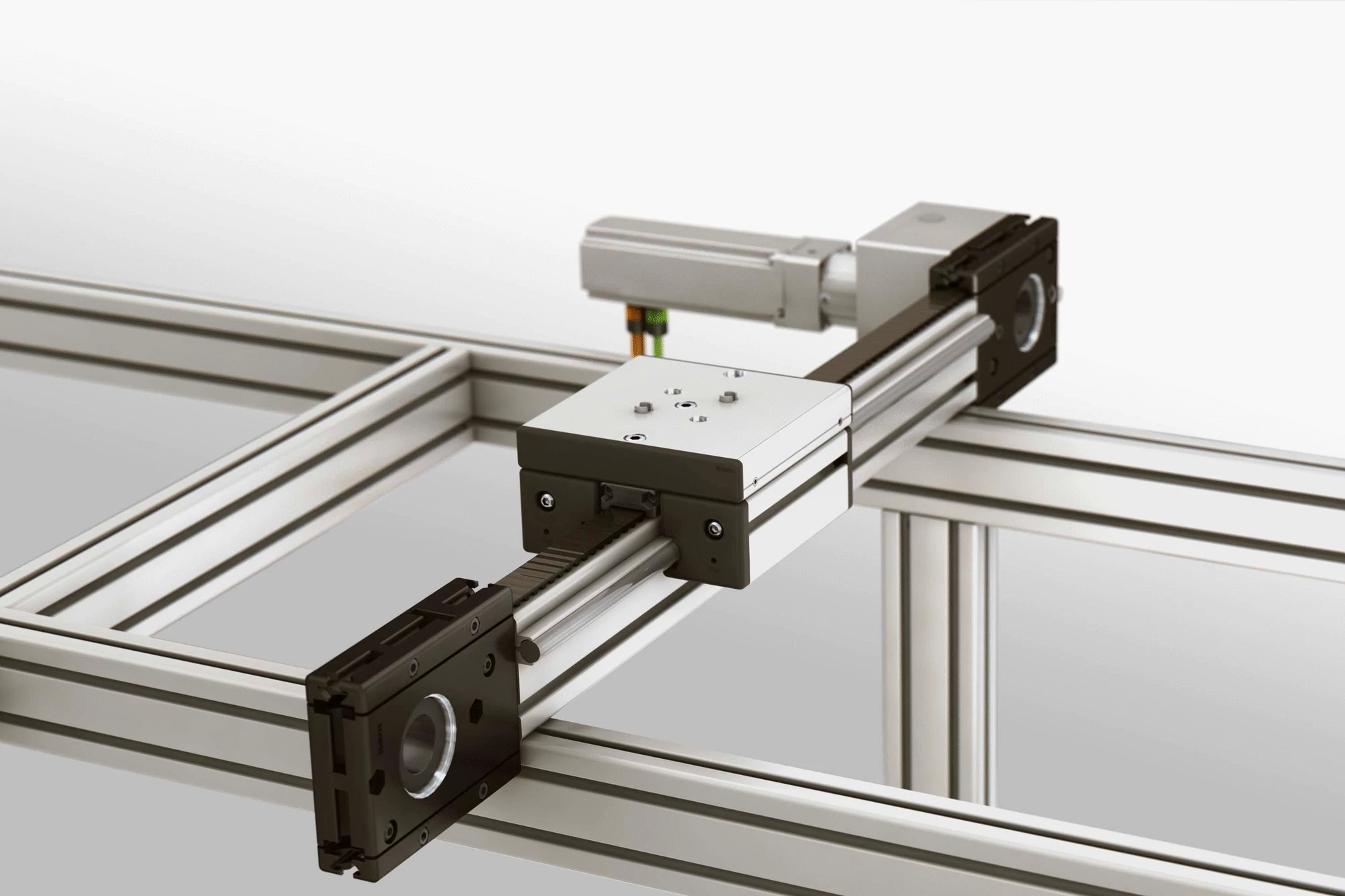

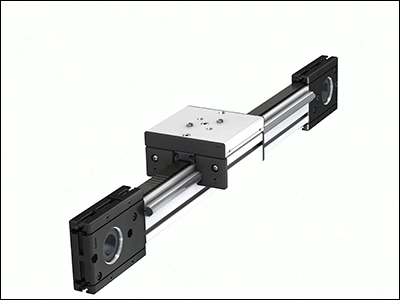

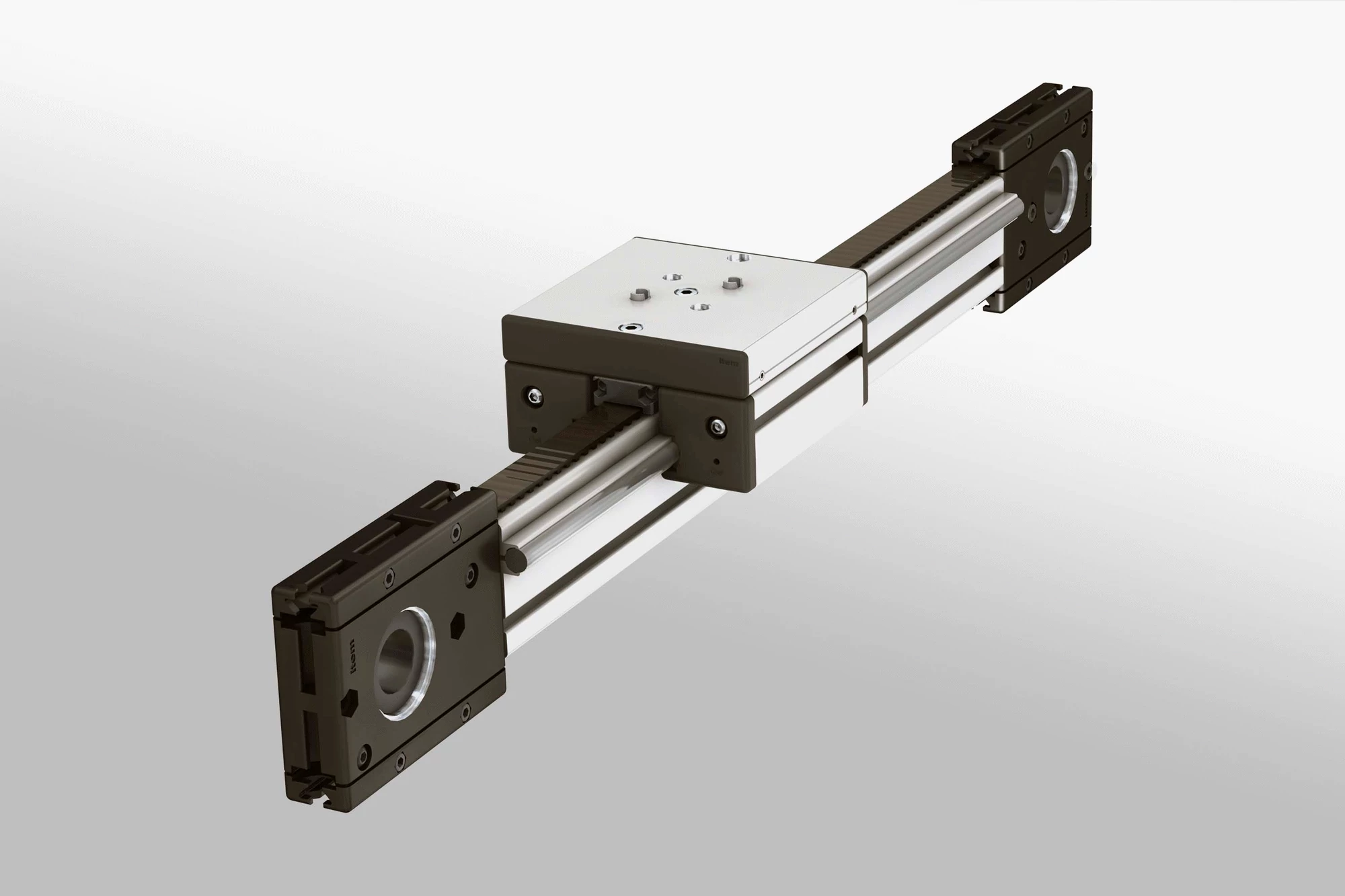

Linear Unit LRE 8 D14 80×40 ZU 80 R25
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Moment of Inertia, torsional | It = 18.83 cm4 |
| Moment of Inertia, x-axis | Ix = 101.19 cm4 |
| Moment of Inertia, y-axis | Iy = 26.87 cm4 |
| Total mass | m = m1 + H * m2 |
| Maximum operating load | Fx max = 1200 N |
| Maximum force in direction y | Fy max = 2400 N |
| Maximum force in direction z | Fz max = 1600 N |
| Weight | m = 11.760676 kg |
The standard Linear Units with impressive performance potential. Linear Units LRE 8 D14 offer the widest range of support profiles and a robust design for a long service life. The maximum payload of up to 160 kg opens up a broad range of potential applications. The carriage has a flat surface for accommodating application-specific mounting holes and the ingenious positioning collars ensure that the chosen application can be mounted with exceptional precision. As a result, changeover and maintenance operations can be completed in record time. Various support profiles are available so that profile deflection can be minimised for high loads and support spans.
h = horizontal orientation v = vertical orientation Maximum possible acceleration in relation to moved mass and installation orientation
Travel speed v in relation to input speed n (timing-belt drive)
Operational force Fx dependent on input torque M (timing-belt drives Fx > 500N)
