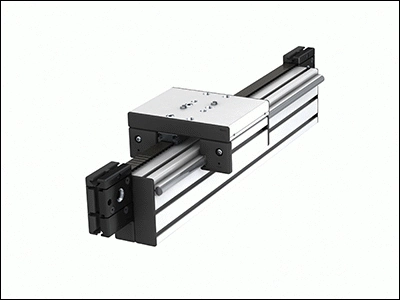

Linear Unit LRE 8 D14 120×80 ZU 40 R25

Art. no: 0.0.663.34 Category: Tag:
Set CAD-format
Linear Unit LRE 8 D14 120×80 ZU 40 R25CADPDFRFQ

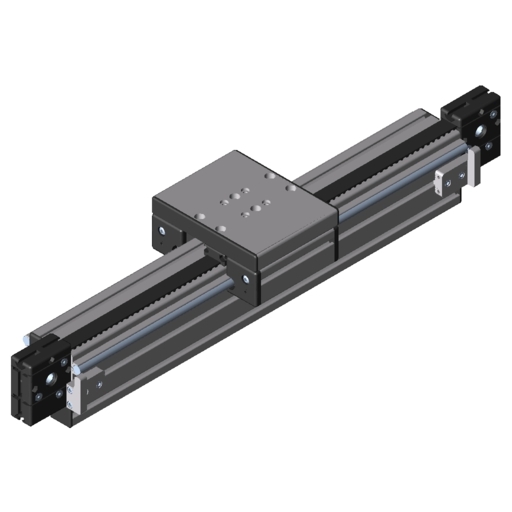

Preview

Properties

line 8line 8
ESD-safeNo
Moment of Inertia, torsionalIt = 261.66 cm4
Moment of Inertia, x-axisIx = 574.86 cm4
Moment of Inertia, y-axisIy = 274.86 cm4
Total massm = m1 + H * m2
Maximum operating loadFx max = 870 N
Maximum force in direction yFy max = 2400 N
Maximum force in direction zFz max = 1600 N
Weightm = 10.35469 kg

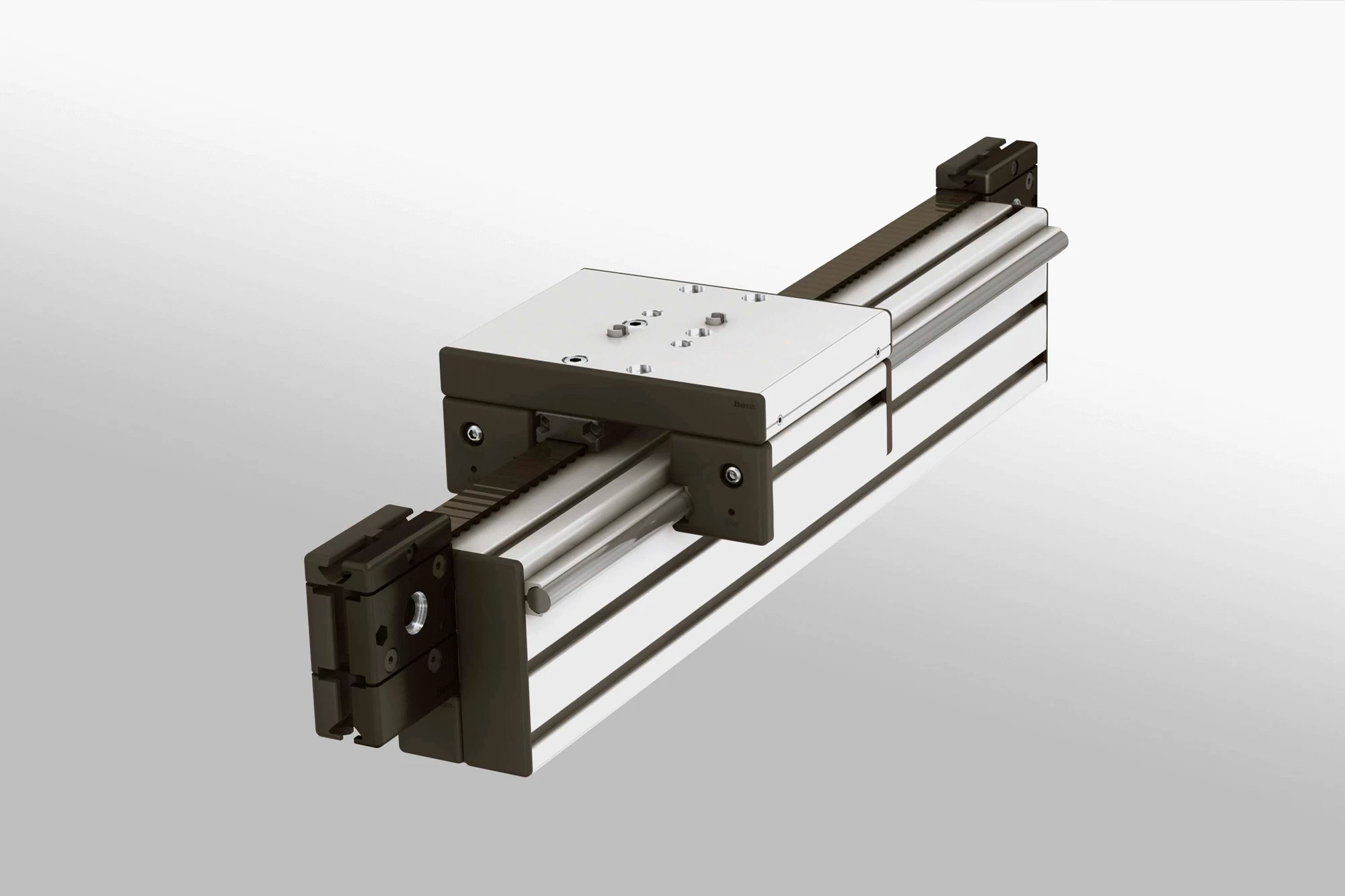

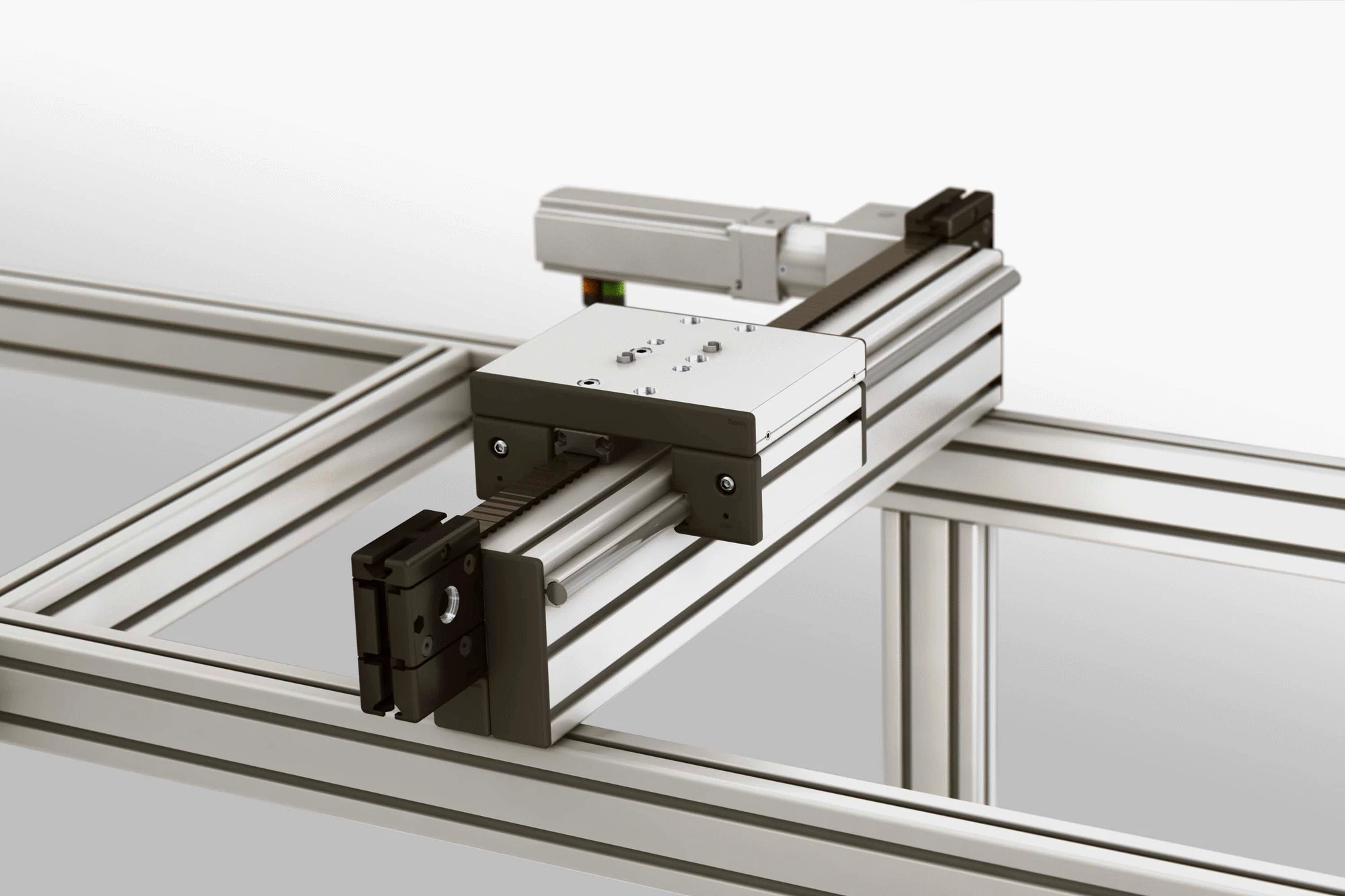

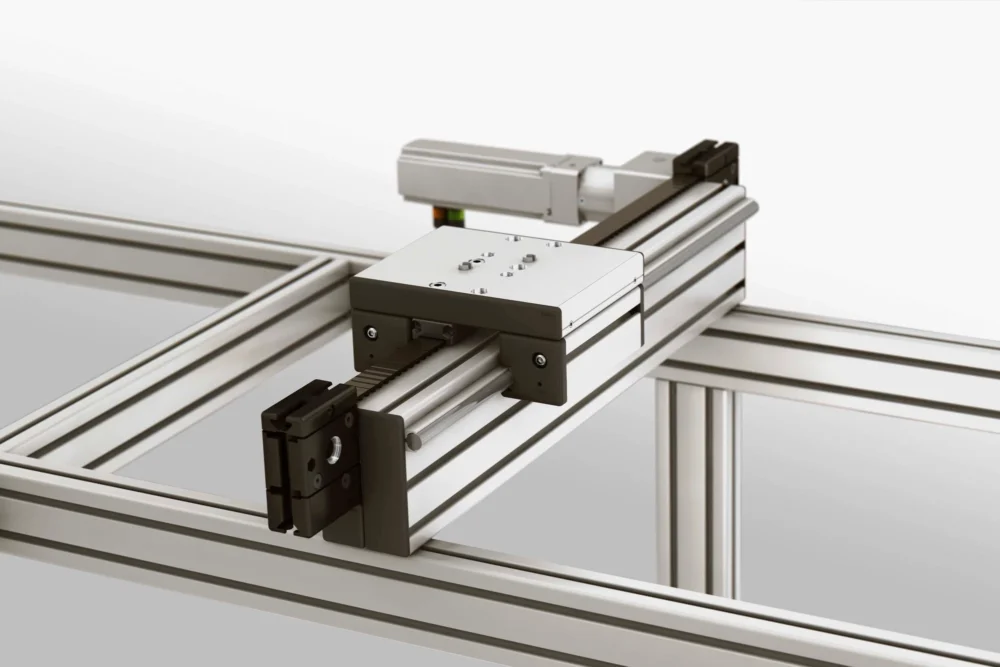

The standard Linear Units with impressive performance potential. Linear Units LRE 8 D14 offer the widest range of support profiles and a robust design for a long service life. The maximum payload of up to 160 kg opens up a broad range of potential applications. The carriage has a flat surface for accommodating application-specific mounting holes and the ingenious positioning collars ensure that the chosen application can be mounted with exceptional precision. As a result, changeover and maintenance operations can be completed in record time. Various support profiles are available so that profile deflection can be minimised for high loads and support spans.
h = horizontal orientation v = vertical orientation Maximum possible acceleration in relation to moved mass and installation orientation
Travel speed v in relation to input speed n (timing-belt drive)
Operational force Fx dependent on input torque M (timing-belt drives Fx > 500N)
