LM5KGT Ball screws (With steel strapping)

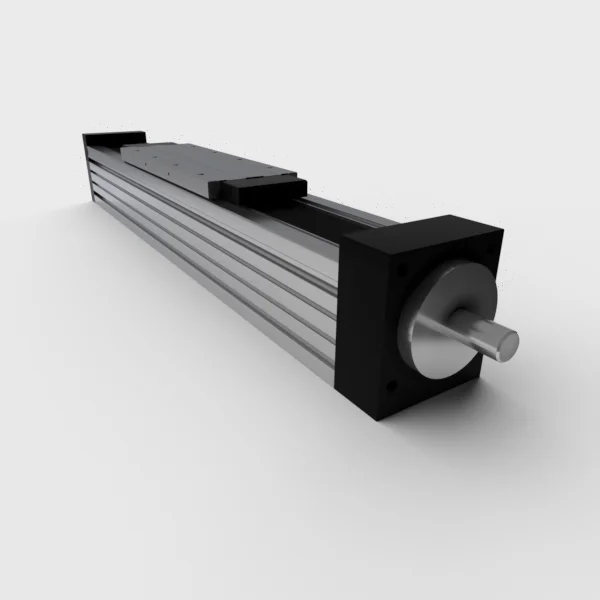

LM5 Linear Module, designed with a precision ball screw mechanism. Features a single ball rail guide to ensure top-tier positioning and repetition consistency. Side reinforcement and motor assemblies can be provided upon request.

Configurated product data

Nothing generated yet

You must configurate your product below before requesting quote
Art. no: Linear Module LM5KGT Categories: , Tag:
Set CAD-format
Linear_Module_LM5_BallScrew_New

Preview


Linear Module Maximum permissable load [kN] Maximum permissable torque [Nm]
Type static dynamic static dynamic
Cy 1.2 Cz 1.2 Cy 1.2 Cz 1.2 Mx My Mz Mx My Mz
 LMR3...R...N 35.0 35.0 18.0 18.0  286 1353 1353 160 1030 880
 LMR3...R...L/R 70.0 70.0 36.0 36.0  1456 2778 2778  808 2016  2016
 LMR4...R...N 59.9 59.9 34.2 34.2  646  1573  1573  400  1446  1446
 LMR4...R...L/R 119.9 119.9 68.4 68.4  3030  3860  3860  1868  3432  3432
 LMR5...R...N 85.0 85.0 49.6 49.6  1080  2316  2316  684  2290  2290
 LMR5...R...L/R 170.0 170.0 99.2 99.2  5588  8715  8715  3552  7659  7659

Art No. A B C D E F G H I J
SPLM32R/KGT 65 81 95 40 50 78 19.5 11 6.5 13.2
SPLM42R/KGT 80 96 110 40 50 78 23.0 11 6.5 16.7
SPLM52R/KGT 110 132 150 40 70 108 28.0 14 8.5 19.7





Normal Size Dimensions
Designation L Lm Length ball screw length steel strip Weigth
mm mm mm mm kg
LM5...BR...N Stroke + 525 L - 75 L + 50 L - 44 16.8 kg + 1.9kg/100 mm stroke
LM5...BR...L/R Stroke + 525 L - 75 L + 50 L - 44 21.75 kg + 2.21kg/100m stroke
