| End Cap and Lubricating System 8 D6, grey | CADPDFRFQ |
Preview

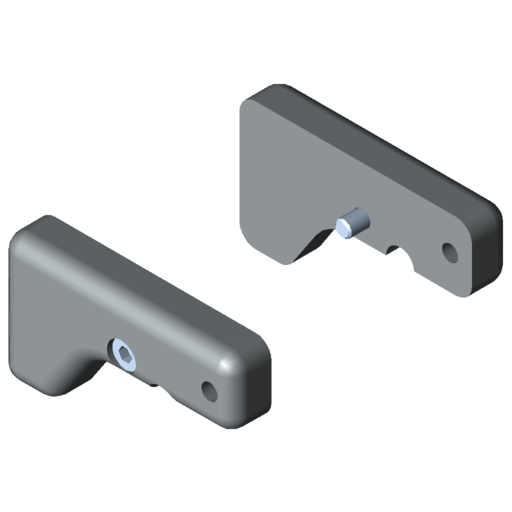

End Cap and Lubricating System 8 D6, grey
End Cap and Lubricating System 8 D6, right End Cap and Lubricating System 8 D6, left 2 Hexagon Socket Head Cap Screws DIN 912-M4x10, St, bright zinc-pl.
Art. no: 0.0.630.14
Categories: End cap and lubricating systems, End cap and lubricating systems
Tag: Static
Scope of Delivery
End Cap and Lubricating System 8 D6, right End Cap and Lubricating System 8 D6, left 2 Hexagon Socket Head Cap Screws DIN 912-M4x10, St, bright zinc-pl.
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 20 g |
| Delivery unit | 1 set |
| Material | PA-GF |
| Colour | grey |
The modern look for the item Roller Guides 8: The grey colouring of the End Cap and Lubricating Systems is the ideal complement to the elegant finish of the anodized aluminium profiles – and the other new, grey Caps. The End Cap and Lubricating Systems are essential in order to protect and lubricate the Bearing Units. The end cap and lubricating felt is saturated with oil when it leaves the factory. Recommended re-oiling interval: every six months.
Possible arrangement of the End Cap and Lubricating Systems which are required in every instance. The spring-loaded end cap and lubricating felt can be re-lubricated via the hole provided. Recommended re-lubricating cycle: every six months. In order to ensure adequate lubrication, the minimum stroke lengths required for the slides must be observed.
