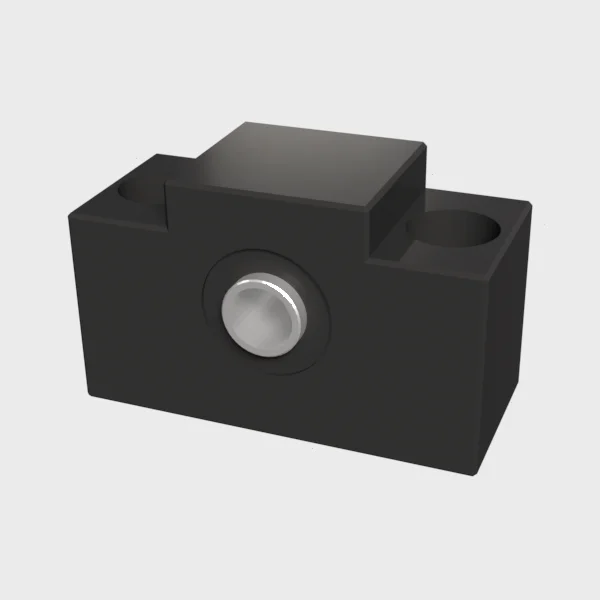

Bearing Unit EK-08

PILLOW BLOCK BEARING, FIXED TO SIZE 10 SCREW

SKU: EK-08-C7 Category: Tag:
Set CAD-format
Bearing Unit EK-08CADPDFRFQ

Preview

Model No. Static load Capacity (N) Max.Axial Dynamic. Load(N) Max. Recommended Axial Dyn.Load (N)
EK06 2000 740 370
EK08 2800 1030 515


Part No. Part Name Qty
1 Housing 1
2 Bearing 2
3 Holding lid 1
4 Spacer 2
5 Seal 2
6 Lock nut 1
7 (M) Hexagon socket-headsetscrew 1

Model No. Ball screw size Shaft Ød1 M T Weight Kg
Ek06 8 6 M3 12 0.18
EK08 10 8 M3 14 0.27

Ball Screw – mounthing method
Ball Screw – Catalog

Part No. Part Name Qty
1 Housing 1
2 Bearing 2
3 Holding lid 1
4 Spacer 2
5 Seal 2
6 Lock nut 1
7 (M) Hexagon socket-headsetscrew 1

Model No. P X Y Z
Ek06 30 5.5 9.5 11
EK08 38 6.6 11 12


Part No. Part Name Qty
1 Housing 1
2 Bearing 2
3 Holding lid 1
4 Spacer 2
5 Seal 2
6 Lock nut 1
7 (M) Hexagon socket-headsetscrew 1

Model No. L L1 B H b h B1 H1
+/-0.02 +/-0.02
Ek06 20 5.5 42 25 21 13 18 20
EK08 23 7 52 26 26 17 25 26
