Drive Set ZU 8 80 D80/D34 AP/WP 80
Coupling Housing 8 D80, Al Adapter Plate 8 D55/D80, for Gearbox AP/WP 80, Al Coupling Half D80/D20, for Gearbox AP/WP 80, Al Expanding hub coupling half D80/D34, St and Al Coupling Insert D80, PU, red Centring Piece D95-D65, St 4 Hexagon Socket Head Cap Screws DIN 912-M5x20, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M6x15, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M8x20, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M8x100, St, bright zinc-plated Cap D15, PA, grey Tightening torque, expanding hub screw: 49 Nm Tightening torque, clamping hub screw: 23 Nm
Scope of Delivery
Coupling Housing 8 D80, Al Adapter Plate 8 D55/D80, for Gearbox AP/WP 80, Al Coupling Half D80/D20, for Gearbox AP/WP 80, Al Expanding hub coupling half D80/D34, St and Al Coupling Insert D80, PU, red Centring Piece D95-D65, St 4 Hexagon Socket Head Cap Screws DIN 912-M5x20, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M6x15, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M8x20, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M8x100, St, bright zinc-plated Cap D15, PA, grey Tightening torque, expanding hub screw: 49 Nm Tightening torque, clamping hub screw: 23 Nm
Properties
| ESD-safe | No |
|---|---|
| Weight | m = 3.779 kg |
| Maximum permissible torque of coupling – drive side | Mmax = 92 Nm |
| Efficiency | . = 1 |
| Delivery unit | 1 set |

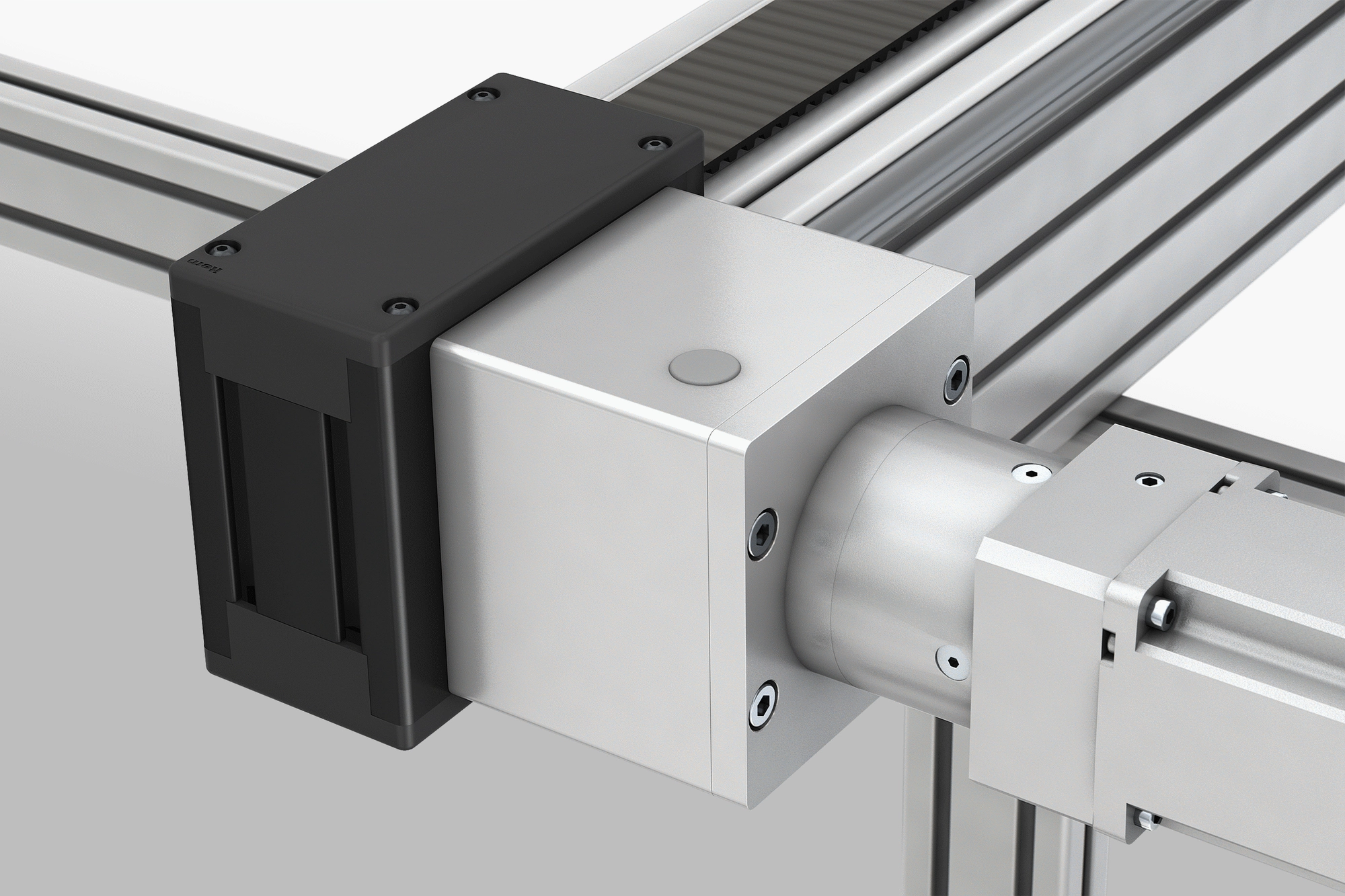

The Drive Sets are configured for the Linear Units that feature a hollow shaft diameter of 12 or 34 mm. The Coupling is supplied ready-to-install with a Housing and can be fitted directly to the Linear Unit. The drive side is prepared for connecting an Axial Planetary Gearbox (AP) or a Bevel Planetary Gearbox (WP). Various Drive Sets are available for the size of the drive in use.
