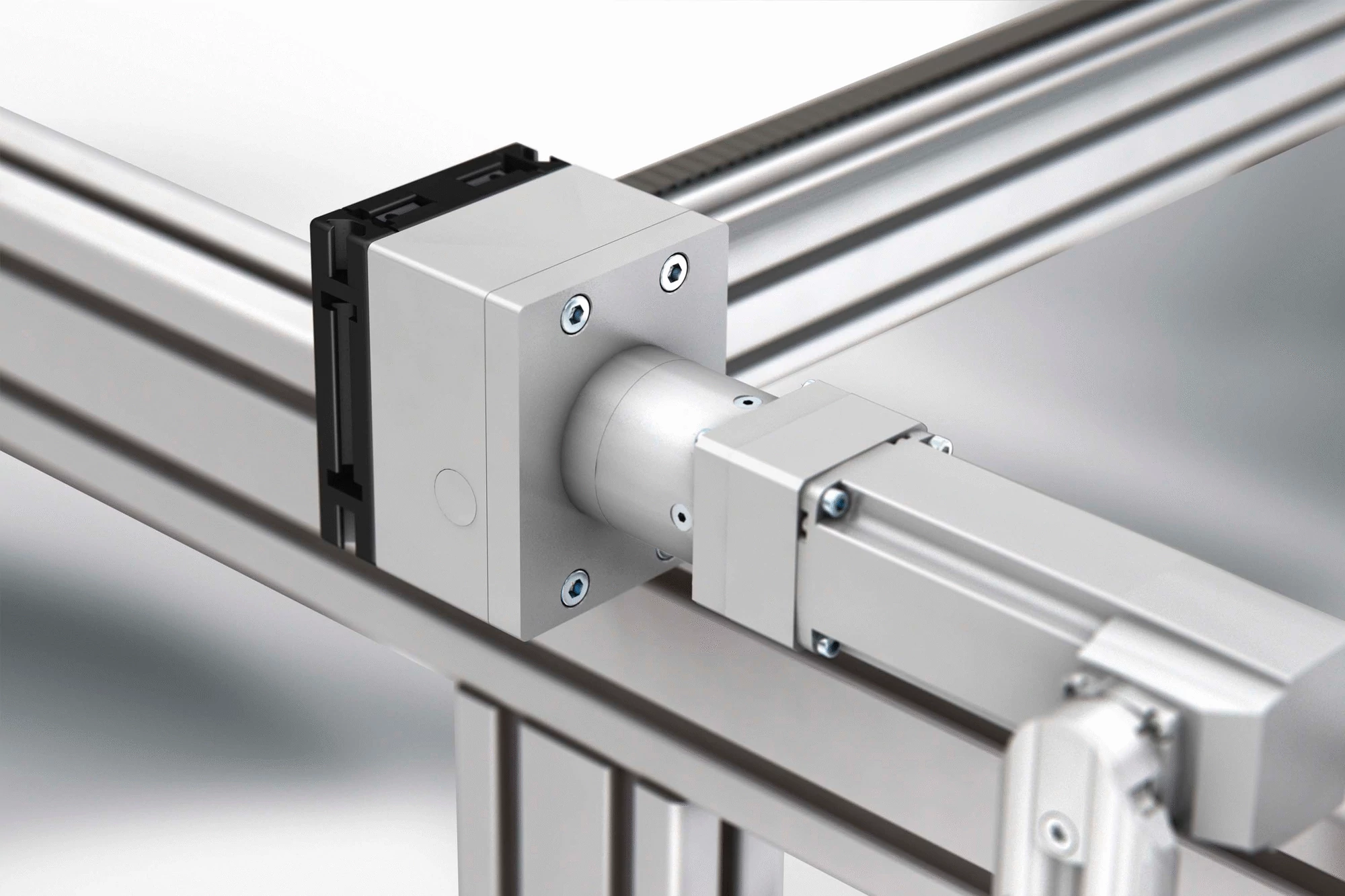

Drive Set ZU 5 40 D30/D12 AP/WP 40
Coupling Housing 5 D30, Al Adapter Plate 5 D30, for Gearbox AP/WP 40, Al Coupling Half D30/D10, for Gearbox AP/WP 40, Al Expanding hub coupling half D30/D12, St and Al Coupling Insert D30, PU, blue Spacer washer D12, Al Centring Piece D55-D22, St 4 Hexagon Socket Head Cap Screws DIN 912-M3x10, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M4x12, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M5x14, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912-M6x25, St, bright zinc-plated Cap D30F, PA, grey Tightening torque, expanding hub screw: 2.8 Nm Tightening torque, clamping hub screw: 2 Nm
Scope of Delivery
Coupling Housing 5 D30, Al Adapter Plate 5 D30, for Gearbox AP/WP 40, Al Coupling Half D30/D10, for Gearbox AP/WP 40, Al Expanding hub coupling half D30/D12, St and Al Coupling Insert D30, PU, blue Spacer washer D12, Al Centring Piece D55-D22, St 4 Hexagon Socket Head Cap Screws DIN 912-M3x10, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M4x12, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M5x14, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912-M6x25, St, bright zinc-plated Cap D30F, PA, grey Tightening torque, expanding hub screw: 2.8 Nm Tightening torque, clamping hub screw: 2 Nm
Properties
| ESD-safe | No |
|---|---|
| Weight | m = 557 g |
| Maximum permissible torque of coupling – drive side | Mmax = 3.3 Nm |
| Efficiency | . = 1 |
| Delivery unit | 1 set |
The Drive Sets are configured for the Linear Units that feature a hollow shaft diameter of 12 or 34 mm. The Coupling is supplied ready-to-install with a Housing and can be fitted directly to the Linear Unit. The drive side is prepared for connecting an Axial Planetary Gearbox (AP) or a Bevel Planetary Gearbox (WP). Various Drive Sets are available for the size of the drive in use.
