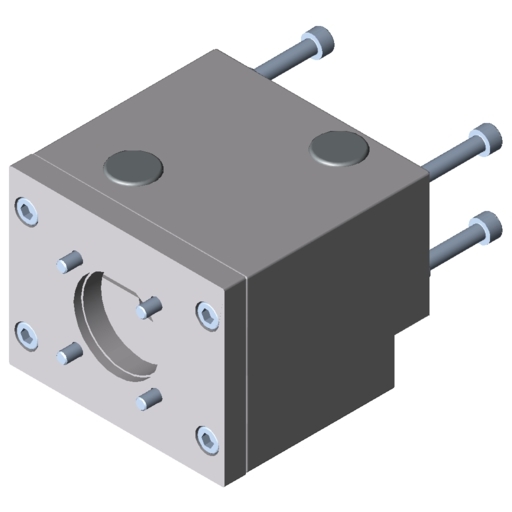

Drive Set, Rack 8 AP/WP 60
Coupling Housing for Gearbox AP/WP 60, Al Adapter Plate 8 80×80 for Gearbox AP/WP 60, Al Coupling Half D55/D14, for Gearbox AP/WP 60, Al Coupling Half D55/D15 PF, Al with parallel keyway Coupling Insert D55, PU, green 2 centring sleeves, St 4 Hexagon Socket Head Cap Screws DIN 912-M4x18, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M5x14, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M6x16, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M6x55, St, bright zinc-plated 2 Caps 8 D15, PA, grey Tightening torque, clamping hub screw: 9.6 Nm
Scope of Delivery
Coupling Housing for Gearbox AP/WP 60, Al Adapter Plate 8 80x80 for Gearbox AP/WP 60, Al Coupling Half D55/D14, for Gearbox AP/WP 60, Al Coupling Half D55/D15 PF, Al with parallel keyway Coupling Insert D55, PU, green 2 centring sleeves, St 4 Hexagon Socket Head Cap Screws DIN 912-M4x18, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M5x14, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M6x16, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M6x55, St, bright zinc-plated 2 Caps 8 D15, PA, grey Tightening torque, clamping hub screw: 9.6 Nm
Properties
| ESD-safe | No |
|---|---|
| Weight | m = 1.755 kg |
| Maximum permissible torque of coupling – drive side | Mmax = 23 Nm |
| Efficiency | . = 1 |
| Delivery unit | 1 set |

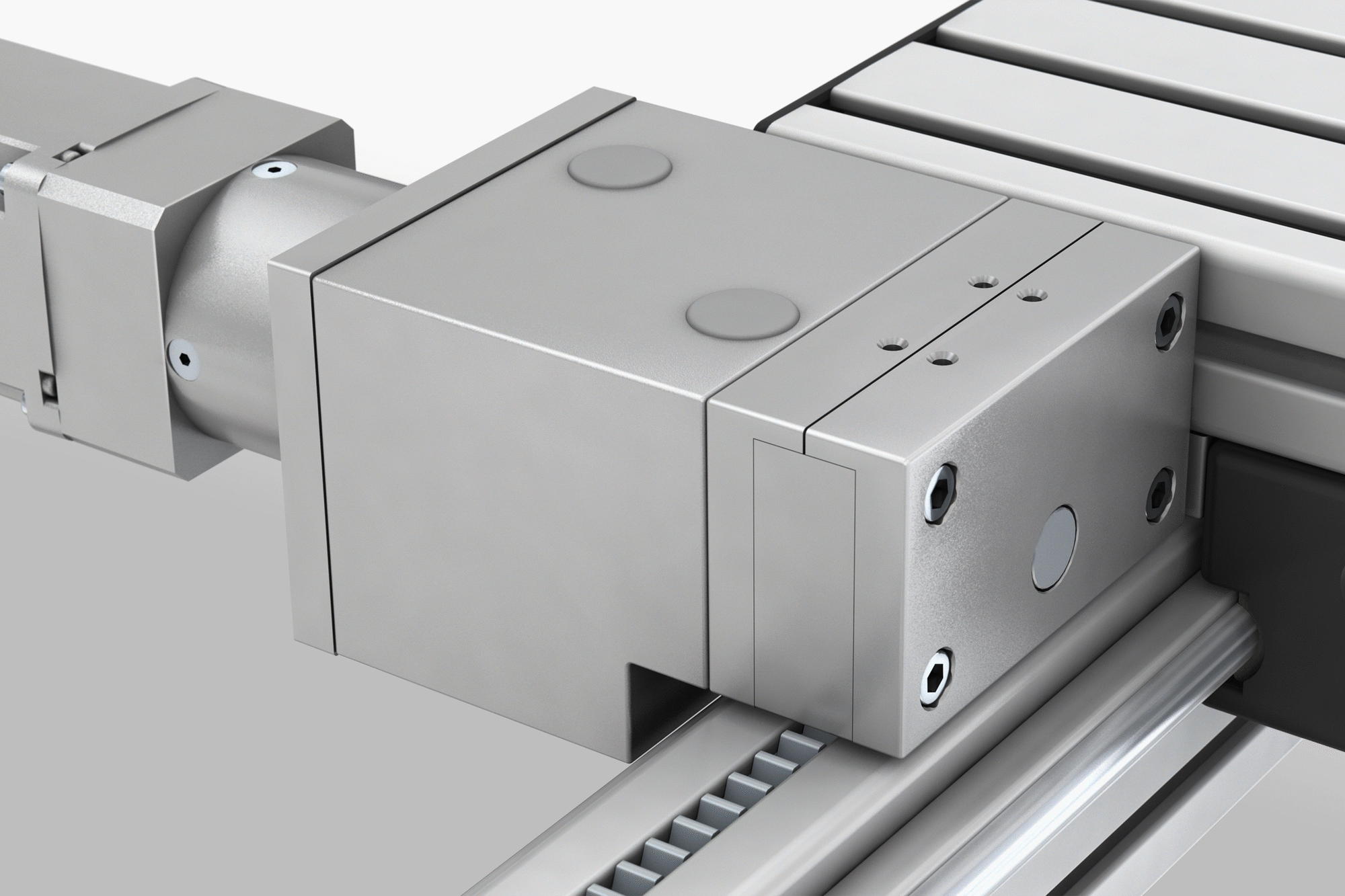

The Drive Sets are configured for the Linear Units with a rack drive (ZS). The Coupling is supplied ready-to-install with a Housing and can be fitted directly to the Linear Unit. The drive side is prepared for connecting an Axial Planetary Gearbox (AP) or a Bevel Planetary Gearbox (WP). Various Drive Sets are available for the size of the drive in use.
