| Drive Set KRF 8 ZR AP/WP 60 | CADPDFRFQ |
Preview
Drive Set KRF 8 ZR AP/WP 60
Coupling Housing KRF 8 ZR, Al Adapter Plate 8 80×80, for Gearbox AP/WP 60, Al Self-aligning coupling D50/D14, St, for Gearbox AP/WP 60, stainless Centre ring D32/D48, St 4 Hexagon Socket Head Cap Screws DIN 912-M4x18, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M5x12, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M6x16, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M6x50, St, bright zinc-plated 2 Caps D15, PA, grey Tightening torque, clamping hub screw: 14.5 Nm
Scope of Delivery
1 Coupling Housing KRF 8 ZR, Al 1 Adapter Plate 8 80x80, for Gearbox AP/WP 60, Al 1 Self-aligning coupling D50/D14, St, for Gearbox AP/WP 60, stainless 1 Centre ring D32/D48, St 4 Hexagon Socket Head Cap Screws DIN 912-M4x18, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M5x12, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M6x16, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M6x50, St, bright zinc-plated 2 Caps D15, PA, grey 1 Tightening torque, clamping hub screw: 14.5 Nm
Properties
| ESD-safe | No |
|---|---|
| Weight | m = 1.813 kg |
| Maximum permissible torque of coupling – drive side | Mmax = 23 Nm |
| Efficiency | . = 1 |
| Delivery unit | 1 set |

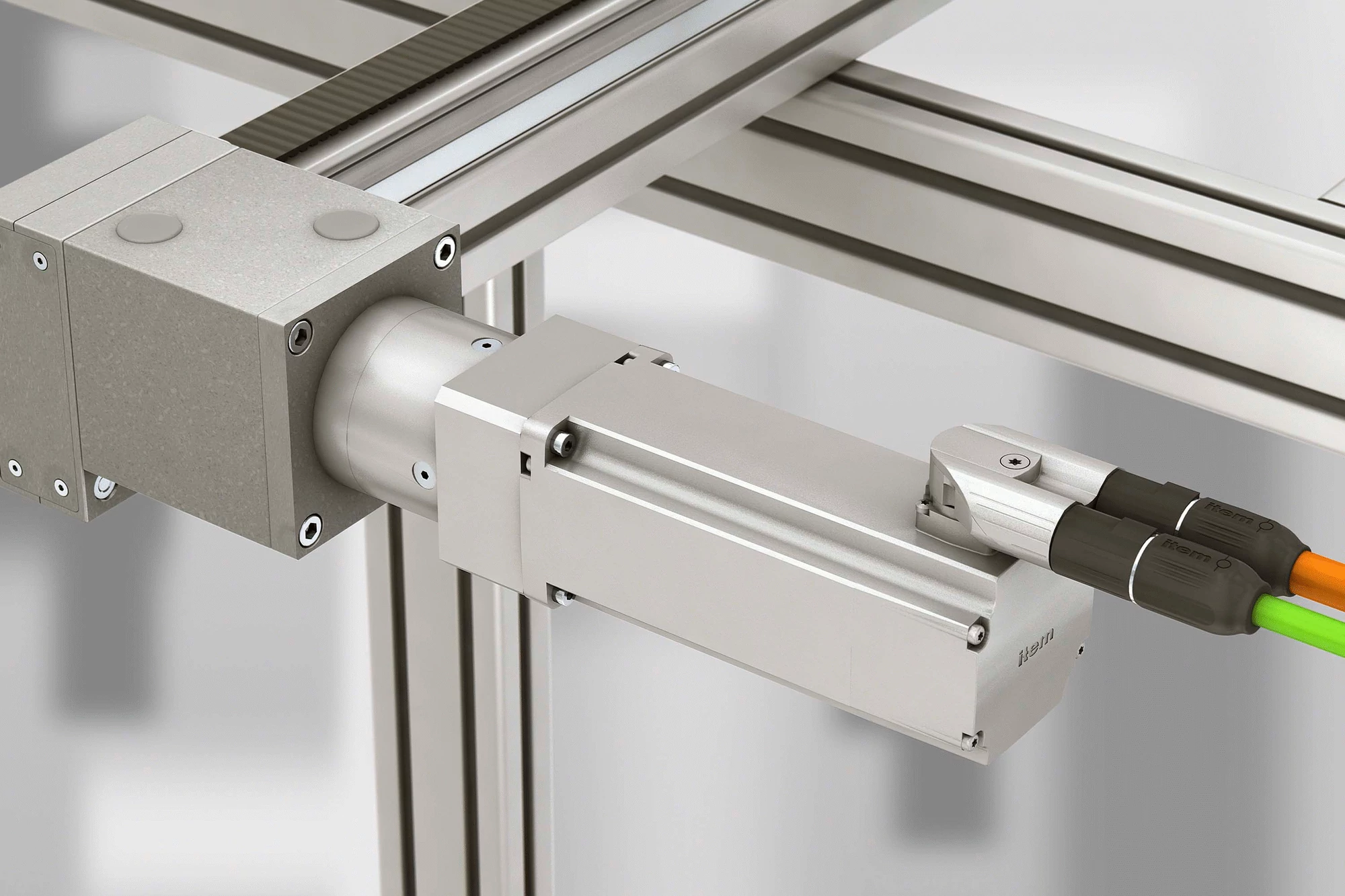

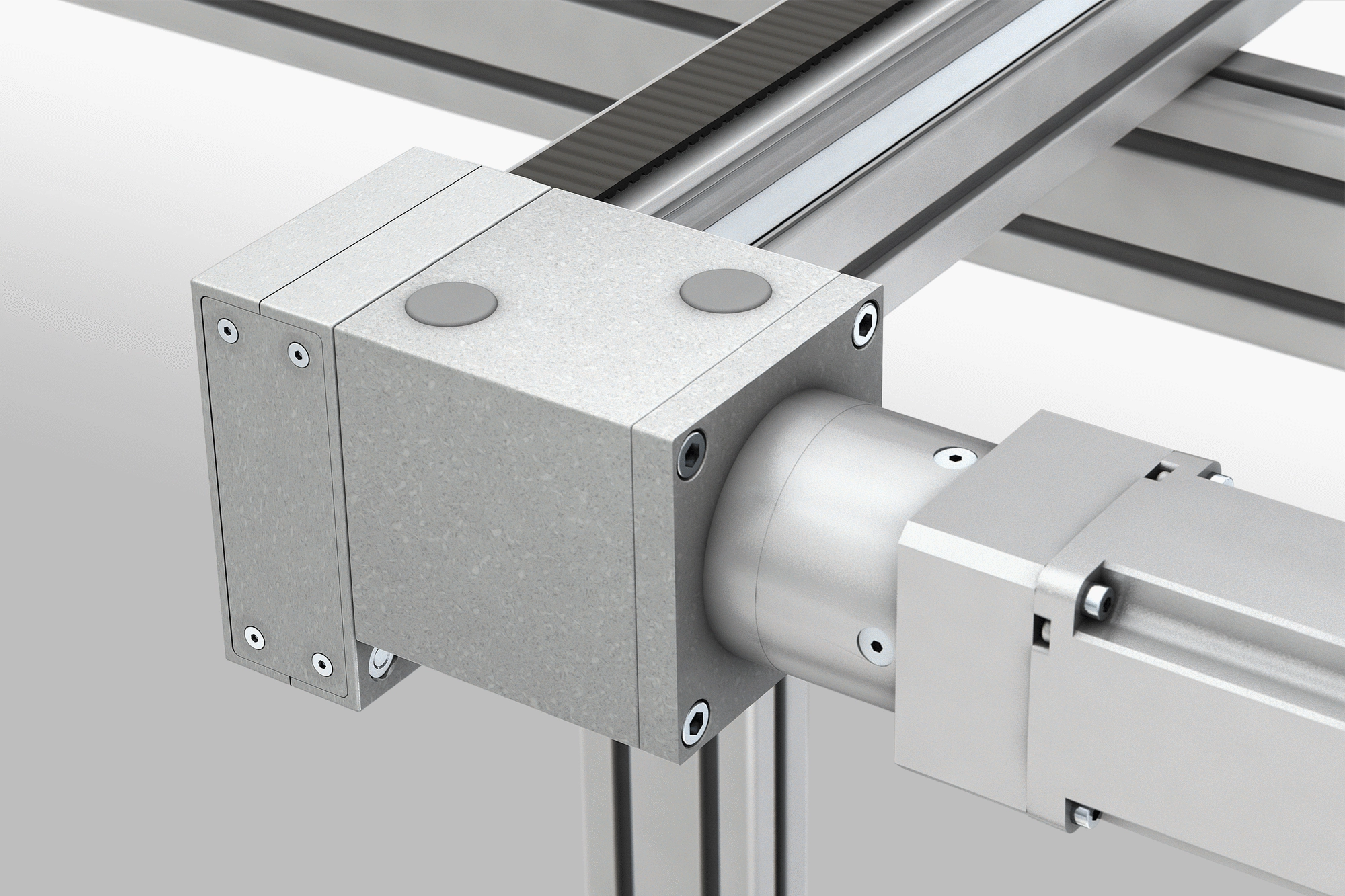

The Drive Sets are configured for Linear Unit KRF. The Coupling is supplied ready-to-install with a Housing and can be fitted directly to the Linear Unit. The drive side is prepared for connecting an Axial Planetary Gearbox (AP) or a Bevel Planetary Gearbox (WP). Various Drive Sets are available for the size of the drive in use.
