| Drive Set KLE 8 80×80 AP/WP 60 | CADPDFRFQ |
Preview

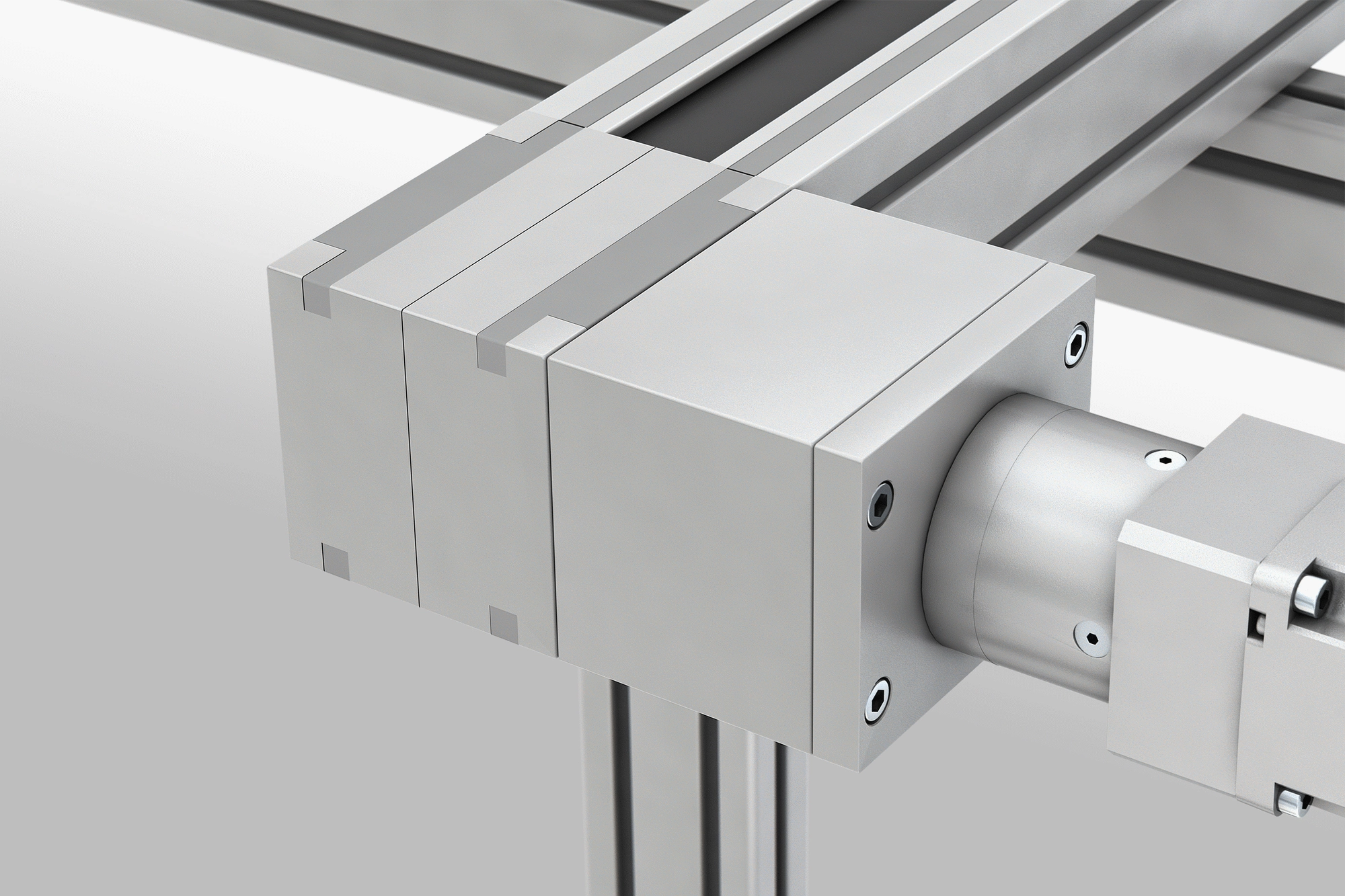

Drive Set KLE 8 80×80 AP/WP 60
Coupling housing KLE 8 80×80, Al Adapter plate KLE 8 80×80, for Gearbox AP/WP 60, Al Coupling half D55/D14, for Gearbox AP/WP 60, Al Coupling half D55 KLE 8 80×80, Al Coupling insert D55, PU, green Centring piece D55 KLE 8 80×80, St 4 Hexagon Socket Head Cap Screws DIN 912-M4x18, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M5x14, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M6x16, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M6x85, St, bright zinc-plated Hexagon Socket Head Cap Screw DIN 912-M8x25, St, bright zinc-plated Cap 8 D15, PA, grey Tightening torque, coupling half D55 KLE 8 80×80, Al: 25 Nm Tightening torque, clamping hub screw: 9.6 Nm
Scope of Delivery
Coupling housing KLE 8 80x80, Al Adapter plate KLE 8 80x80, for Gearbox AP/WP 60, Al Coupling half D55/D14, for Gearbox AP/WP 60, Al Coupling half D55 KLE 8 80x80, Al Coupling insert D55, PU, green Centring piece D55 KLE 8 80x80, St 4 Hexagon Socket Head Cap Screws DIN 912-M4x18, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M5x14, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M6x16, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M6x85, St, bright zinc-plated Hexagon Socket Head Cap Screw DIN 912-M8x25, St, bright zinc-plated Cap 8 D15, PA, grey Tightening torque, coupling half D55 KLE 8 80x80, Al: 25 Nm Tightening torque, clamping hub screw: 9.6 Nm
Properties
| ESD-safe | No |
|---|---|
| Weight | m = 1.708 kg |
| Maximum permissible torque of coupling – drive side | Mmax = 50 Nm |
| Efficiency | . = 1 |
| Delivery unit | 1 set |
The Drive Sets are configured for Linear Units KLE in various sizes. The Coupling is supplied ready-to-install with a Housing and can be fitted directly to the Linear Unit. The drive side is prepared for connecting an Axial Planetary Gearbox (AP) or a Bevel Planetary Gearbox (WP). Various Drive Sets are available for the size of the drive in use.
