| Drive Set KLE 6 60×60 AP/WP 60 | CADPDFRFQ |
Preview
Drive Set KLE 6 60×60 AP/WP 60
Coupling Housing KLE 6 60×60, Al Adapter Plate KLE 6 60×60, for Gearbox AP/WP 60, Al Coupling Half D40 KLE 6 60×60, Al Coupling Half D40/D14, for Gearbox AP/WP 60, Al Coupling Insert D40, PU, green Centring Piece D40 KLE 6 60×60, St 4 Hexagon Socket Head Cap Screws DIN 912-M4x18, St, bright zinc-plated 8 Hexagon Socket Head Cap Screws DIN 912-M5x14, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M5x65, St, bright zinc-plated Hexagon Socket Head Cap Screw DIN 912-M6x20, St, bright zinc-plated Cap D30F, PA, grey Tightening torque, Coupling Half D40 KLE 6 60×60, Al: 14 Nm Tightening torque, clamping hub screw: 9.6 Nm
Scope of Delivery
Coupling Housing KLE 6 60x60, Al Adapter Plate KLE 6 60x60, for Gearbox AP/WP 60, Al Coupling Half D40 KLE 6 60x60, Al Coupling Half D40/D14, for Gearbox AP/WP 60, Al Coupling Insert D40, PU, green Centring Piece D40 KLE 6 60x60, St 4 Hexagon Socket Head Cap Screws DIN 912-M4x18, St, bright zinc-plated 8 Hexagon Socket Head Cap Screws DIN 912-M5x14, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M5x65, St, bright zinc-plated Hexagon Socket Head Cap Screw DIN 912-M6x20, St, bright zinc-plated Cap D30F, PA, grey Tightening torque, Coupling Half D40 KLE 6 60x60, Al: 14 Nm Tightening torque, clamping hub screw: 9.6 Nm
Properties
| ESD-safe | No |
|---|---|
| Weight | m = 812 g |
| Maximum permissible torque of coupling – drive side | Mmax = 12 Nm |
| Efficiency | . = 1 |
| Delivery unit | 1 set |

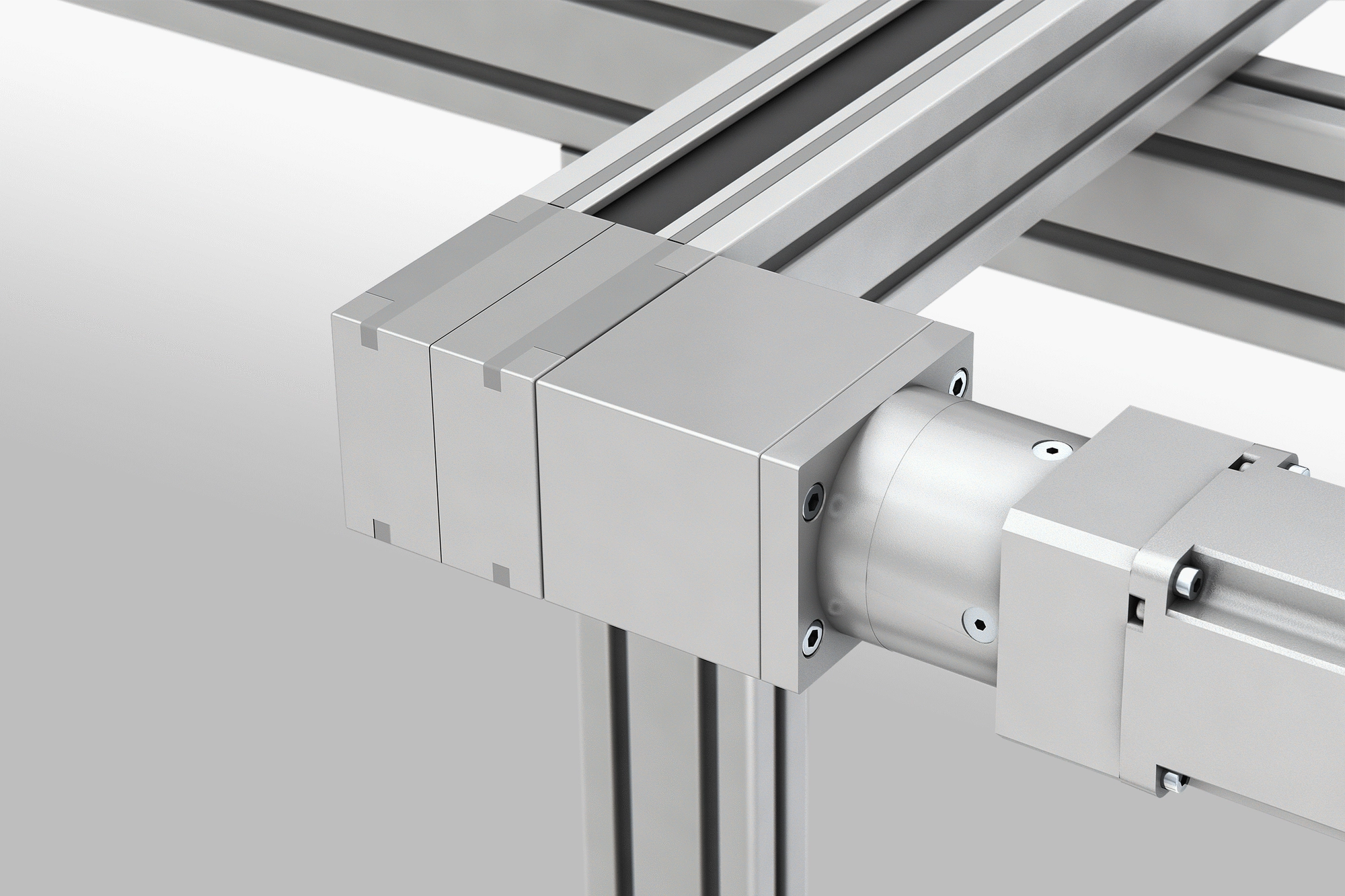

The Drive Sets are configured for Linear Units KLE in various sizes. The Coupling is supplied ready-to-install with a Housing and can be fitted directly to the Linear Unit. The drive side is prepared for connecting an Axial Planetary Gearbox (AP) or a Bevel Planetary Gearbox (WP). Various Drive Sets are available for the size of the drive in use.
