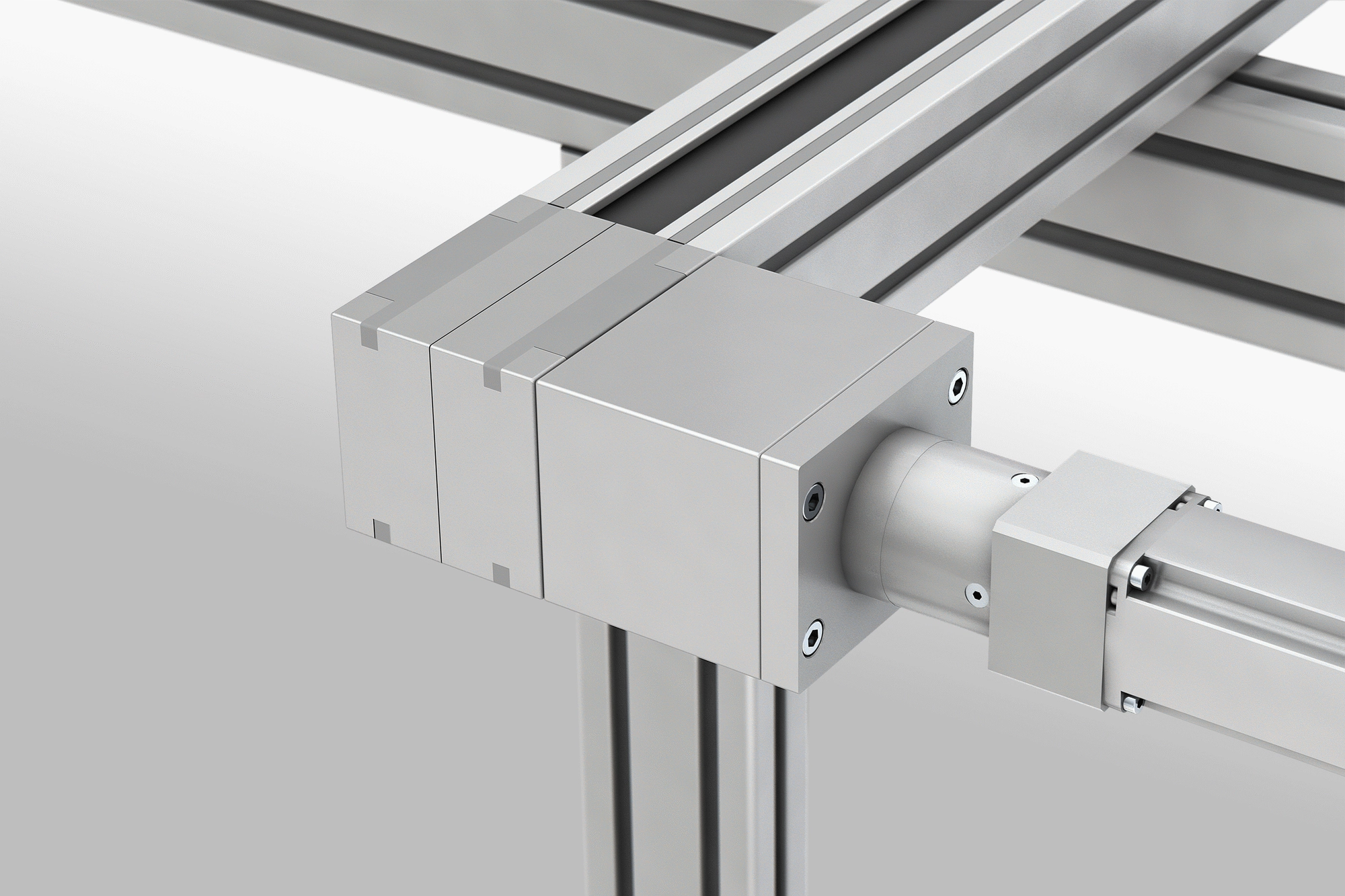

Drive Set KLE 6 60×60 AP/WP 40
Coupling housing KLE 6 60×60, Al Adapter plate KLE 6 60×60, for Gearbox AP/WP 40, Al Coupling half D40 KLE 6 60×60, Al Coupling half D40/D10, for Gearbox AP/WP 40, Al Coupling insert D40, PU, green Centring piece D40 KLE 6 60×60, St 4 Hexagon Socket Head Cap Screws DIN 912-M3x10, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M4x12, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M5x14, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M5x65, St, bright zinc-plated Hexagon Socket Head Cap Screw DIN 912-M6x20, St, bright zinc-plated Cap D30F, PA, grey Tightening torque, coupling half D40 KLE 6 60×60, Al: 14 Nm Tightening torque, clamping hub screw: 9.6 Nm
Scope of Delivery
Coupling housing KLE 6 60x60, Al Adapter plate KLE 6 60x60, for Gearbox AP/WP 40, Al Coupling half D40 KLE 6 60x60, Al Coupling half D40/D10, for Gearbox AP/WP 40, Al Coupling insert D40, PU, green Centring piece D40 KLE 6 60x60, St 4 Hexagon Socket Head Cap Screws DIN 912-M3x10, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M4x12, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M5x14, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M5x65, St, bright zinc-plated Hexagon Socket Head Cap Screw DIN 912-M6x20, St, bright zinc-plated Cap D30F, PA, grey Tightening torque, coupling half D40 KLE 6 60x60, Al: 14 Nm Tightening torque, clamping hub screw: 9.6 Nm
Properties
| ESD-safe | No |
|---|---|
| Weight | m = 807 g |
| Maximum permissible torque of coupling – drive side | Mmax = 12 Nm |
| Efficiency | . = 1 |
| Delivery unit | 1 set |
The Drive Sets are configured for Linear Units KLE in various sizes. The Coupling is supplied ready-to-install with a Housing and can be fitted directly to the Linear Unit. The drive side is prepared for connecting an Axial Planetary Gearbox (AP) or a Bevel Planetary Gearbox (WP). Various Drive Sets are available for the size of the drive in use.
