| Drive Set KLE 5 40×40 NEMA 24 | CADPDFRFQ |
Preview
Drive Set KLE 5 40×40 NEMA 24
1 coupling housing KLE 5 40×40, Al 1 adapter plate KLE 5 40×40, for motor NEMA 24, Al 1 coupling half D30/D8, for motor NEMA 24, Al 1 expanding hub coupling half D30/D12, St and Al 1 coupling insert D30, PU, blue 4 Hexagon Socket Head Cap Screws DIN 912 M4x45, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912 M4x16, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912 M4x12, St, bright zinc-plated 1 Cap D30 F, PA
Scope of Delivery
1 coupling housing KLE 5 40x40, Al 1 adapter plate KLE 5 40x40, for motor NEMA 24, Al 1 coupling half D30/D8, for motor NEMA 24, Al 1 expanding hub coupling half D30/D12, St and Al 1 coupling insert D30, PU, blue 4 Hexagon Socket Head Cap Screws DIN 912 M4x45, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912 M4x16, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912 M4x12, St, bright zinc-plated 1 Cap D30 F, PA
Properties
| line 5 | line 5 |
|---|---|
| ESD-safe | No |
| Weight | m = 346 g |
| Maximum permissible torque of coupling – drive side | Mmax = 2.2 Nm |
| Efficiency | . = 1 |
| Delivery unit | 1 set |

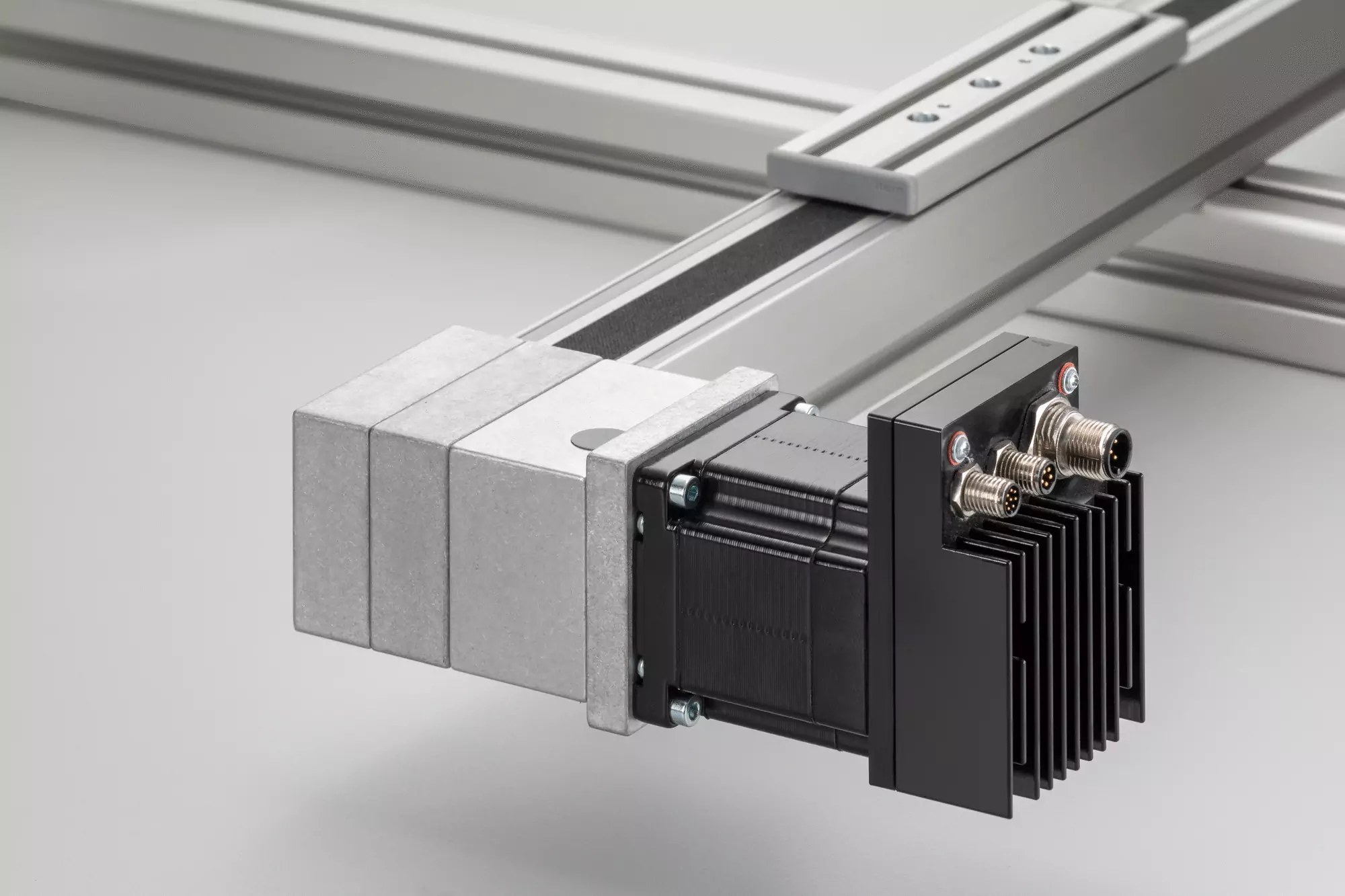

Drive Set KLE 5 40x40 NEMA 24 is used to connect stepper motors with a standardised NEMA 24 flange to item Linear Units KLE 5 40x40 LR. The coupling is supplied ready to install and with its housing. This plug-and-play solution ensures backlash-free power transmission with no need for machining and can be mounted directly to the linear unit.
