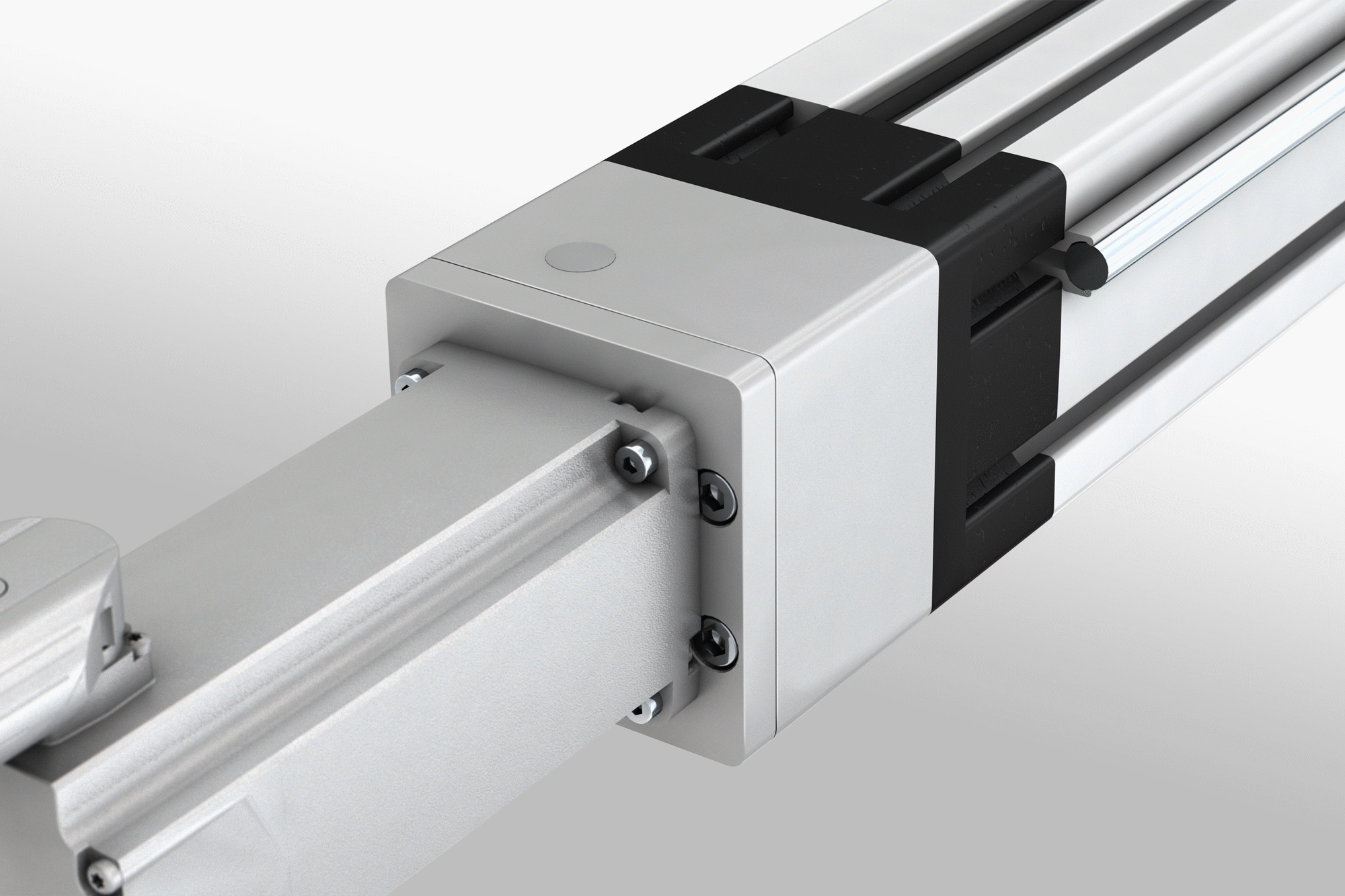

Drive Set KGT D40/D15 SE 60
Coupling Housing 8 D40, Al Adapter Plate 8 D40, for Motor SE 60, Al Coupling Adapter Plate D30/D55, Al Coupling Half D40/D14, for Motor SE 60, Al Expanding hub coupling half D40/D15, St and Al Coupling Insert D40, PU, green Centring Piece D63-D50, St Centring Piece D50-D50, St 4 Hexagon Socket Head Cap Screws DIN 912-M4x16, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M6x16, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912-M8x60, St, bright zinc-plated 2 Button-Head Screws ISO 7380-M6x16, St, bright zinc-plated Cap D30F, PA, grey Tightening torque, expanding hub screw: 9.6 Nm Tightening torque, clamping hub screw: 9.6 Nm
Scope of Delivery
Coupling Housing 8 D40, Al Adapter Plate 8 D40, for Motor SE 60, Al Coupling Adapter Plate D30/D55, Al Coupling Half D40/D14, for Motor SE 60, Al Expanding hub coupling half D40/D15, St and Al Coupling Insert D40, PU, green Centring Piece D63-D50, St Centring Piece D50-D50, St 4 Hexagon Socket Head Cap Screws DIN 912-M4x16, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M6x16, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912-M8x60, St, bright zinc-plated 2 Button-Head Screws ISO 7380-M6x16, St, bright zinc-plated Cap D30F, PA, grey Tightening torque, expanding hub screw: 9.6 Nm Tightening torque, clamping hub screw: 9.6 Nm
Properties
| ESD-safe | No |
|---|---|
| Weight | m = 1.162 kg |
| Maximum permissible torque of coupling – drive side | Mmax = 7.5 Nm |
| Efficiency | . = 1 |
| Delivery unit | 1 set |
The Drive Sets are configured for Linear Units equipped with roller elements and a ball screw drive (LRE KGT). To ensure maximum precision in spindle control, the Motor should be connected directly, without an additional Gearbox. Various models are available depending on the performance class of the Motor.
