Drive Set GSF 8 40 AP/WP 40
Coupling housing GSF 8, Al Adapter plate GSF 8, for Gearbox AP/WP 40, Al Coupling half D30/D10, for Gearbox AP/WP 40, Al Expanding hub coupling half D30/D12, St and Al Coupling insert D30, PU, blue 4 Hexagon Socket Head Cap Screws DIN 912-M3x10, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 7984-M4x45, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M4x12, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912-M5x14, St, bright zinc-plated Cap D30F, PA, grey Tightening torque, expanding hub screw: 2.8 Nm Tightening torque, clamping hub screw: 2 Nm
Scope of Delivery
Coupling housing GSF 8, Al Adapter plate GSF 8, for Gearbox AP/WP 40, Al Coupling half D30/D10, for Gearbox AP/WP 40, Al Expanding hub coupling half D30/D12, St and Al Coupling insert D30, PU, blue 4 Hexagon Socket Head Cap Screws DIN 912-M3x10, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 7984-M4x45, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M4x12, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912-M5x14, St, bright zinc-plated Cap D30F, PA, grey Tightening torque, expanding hub screw: 2.8 Nm Tightening torque, clamping hub screw: 2 Nm
Properties
| ESD-safe | No |
|---|---|
| Weight | m = 411 g |
| Maximum permissible torque of coupling – drive side | Mmax = 3 Nm |
| Efficiency | . = 1 |
| Delivery unit | 1 set |

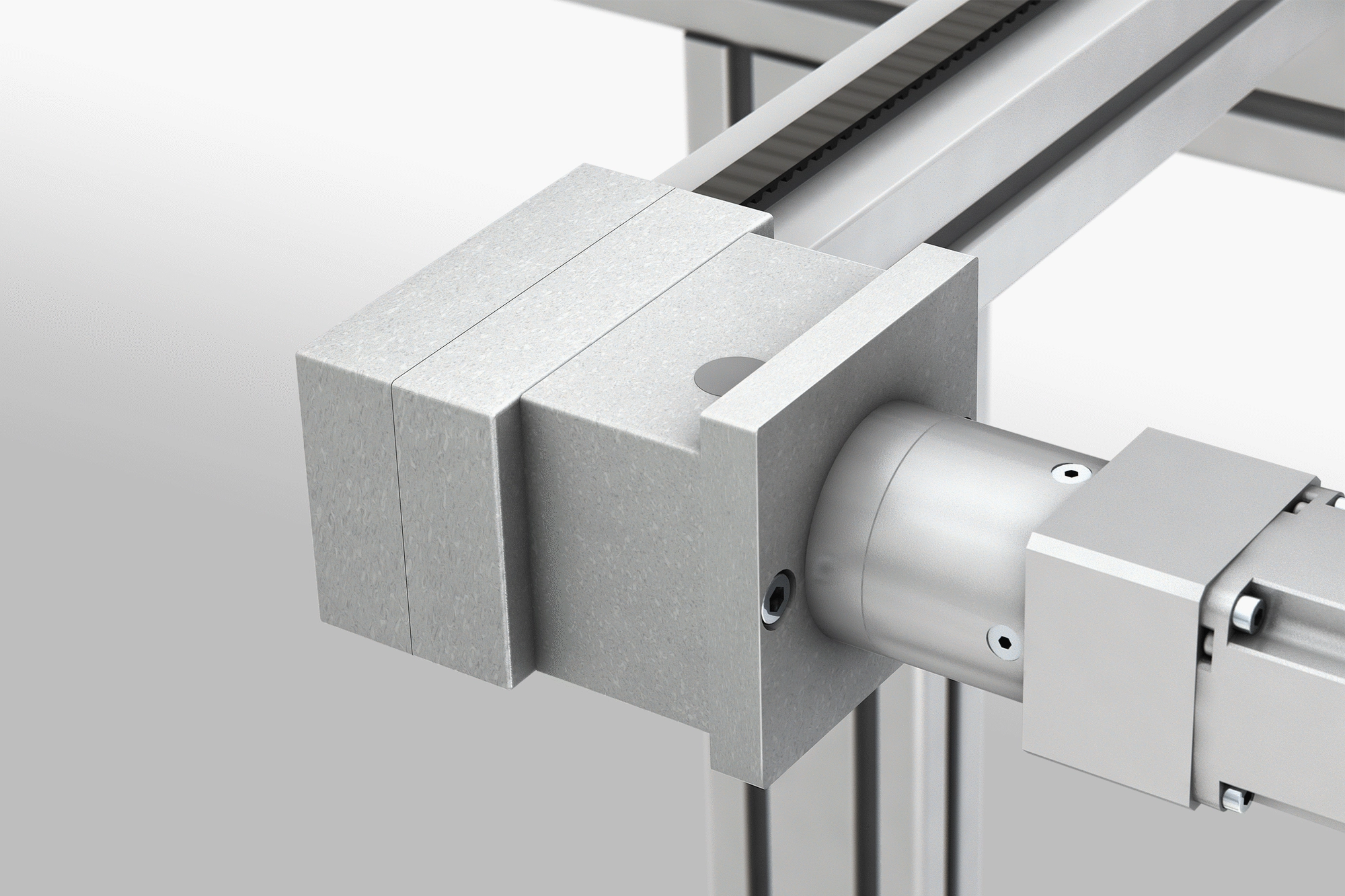

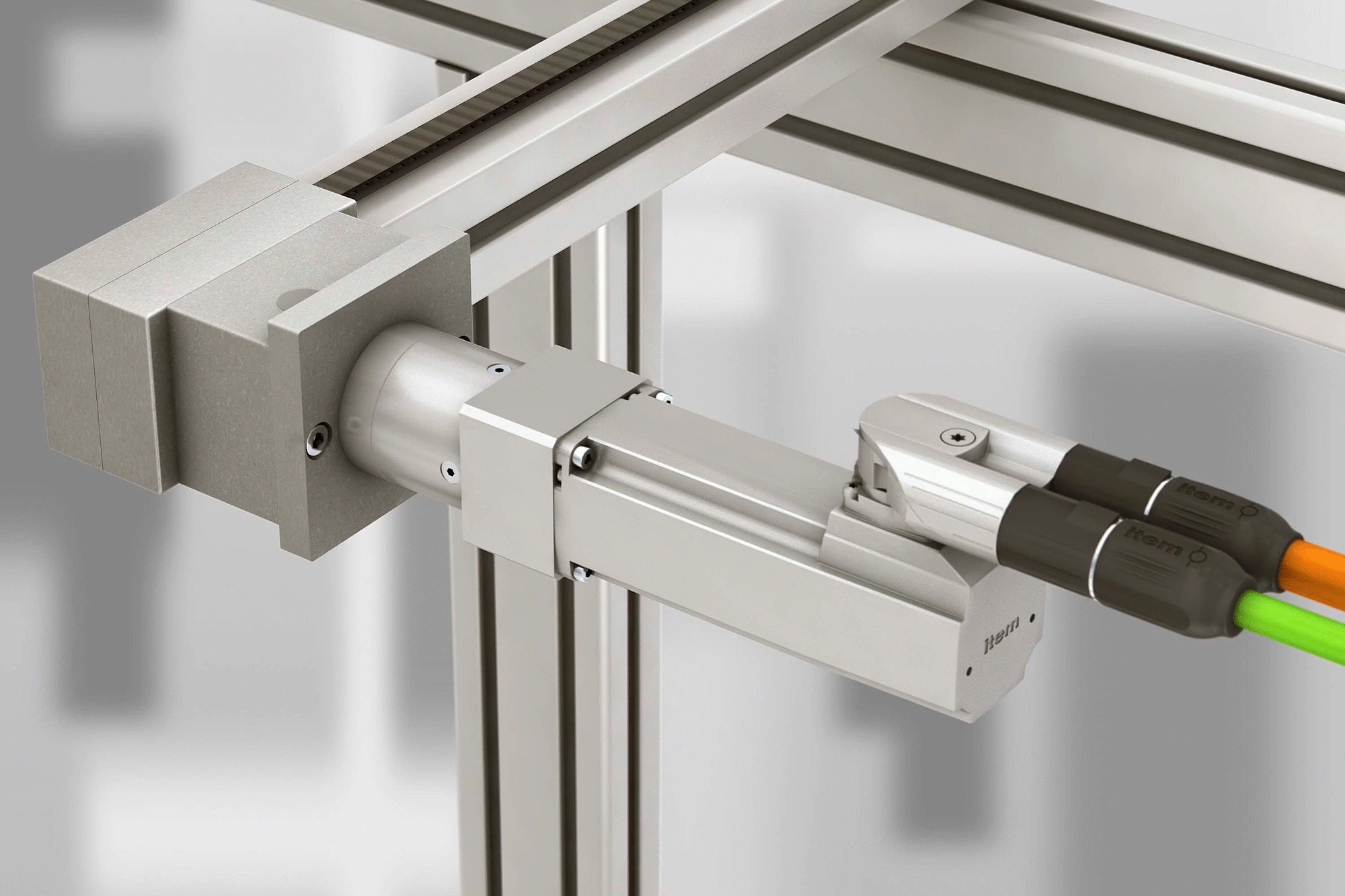

The Drive Set is configured for Linear Unit GSF. The expanding hub coupling is supplied ready-to-install with a housing and can be fitted directly to the Linear Unit. The drive side is prepared for connecting an axial planetary Gearbox (AP) or a bevel planetary Gearbox (WP).
