| Drive Set 8 D40/D15 AP/WP 60 | CADPDFRFQ |
Preview

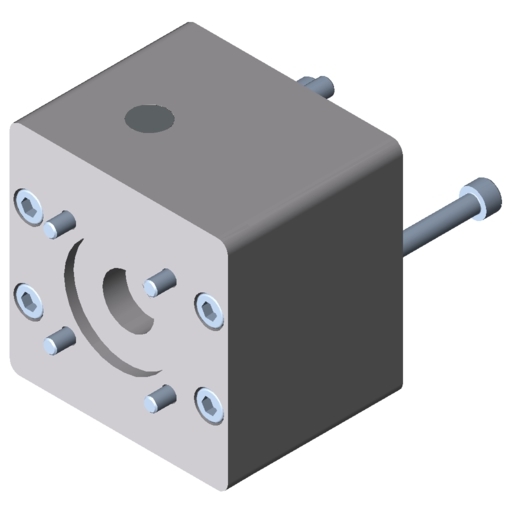

Drive Set 8 D40/D15 AP/WP 60
Coupling Housing 8 D40, Al Adapter Plate 8 D40, for Gearbox AP/WP 60, Al Coupling Half D40/D14, for Gearbox AP/WP 60, Al Expanding hub coupling half D40/D15, St and Al Coupling Insert D40, PU, green Centring Piece D50-D22, St 4 Hexagon Socket Head Cap Screws DIN 912-M4x16, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M5x12, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M6x16, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912-M6x45, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912-M6x60, St, bright zinc-plated Cap D30F, PA, grey Tightening torque, expanding hub screw: 9.6 Nm Tightening torque, clamping hub screw: 9.6 Nm
Scope of Delivery
Coupling Housing 8 D40, Al Adapter Plate 8 D40, for Gearbox AP/WP 60, Al Coupling Half D40/D14, for Gearbox AP/WP 60, Al Expanding hub coupling half D40/D15, St and Al Coupling Insert D40, PU, green Centring Piece D50-D22, St 4 Hexagon Socket Head Cap Screws DIN 912-M4x16, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M5x12, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M6x16, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912-M6x45, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912-M6x60, St, bright zinc-plated Cap D30F, PA, grey Tightening torque, expanding hub screw: 9.6 Nm Tightening torque, clamping hub screw: 9.6 Nm
Properties
| ESD-safe | No |
|---|---|
| Weight | m = 1.043 kg |
| Maximum permissible torque of coupling – drive side | Mmax = 20 Nm |
| Efficiency | . = 1 |
| Delivery unit | 1 set |
The Drive Sets are configured for the Linear Units that feature a hollow shaft diameter of 15 mm. The Coupling is supplied ready-to-install with a Housing and can be fitted directly to the Linear Unit. The drive side is prepared for connecting an Axial Planetary Gearbox (AP) or a Bevel Planetary Gearbox (WP).
