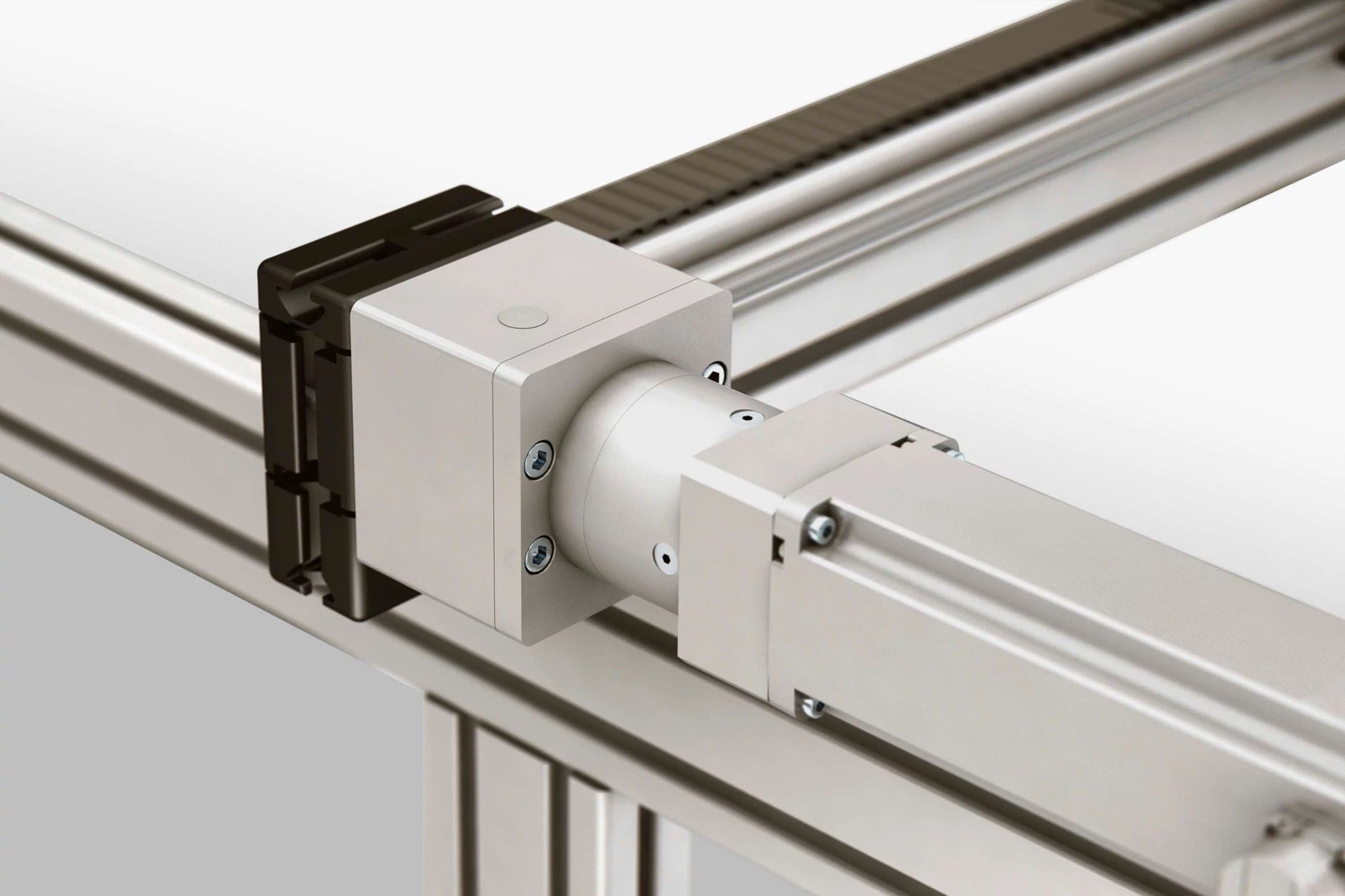

Drive Set 8 40 D40/D15
Coupling housing 8 D40, Al Adapter plate 8 D40, Al D40/D5 coupling half, Al – reborable up to max. ⌀20 mm Expanding hub coupling half D40/D15, St and Al Coupling insert D40, PU, green Centring piece D50-D22, St 4 Hexagon Socket Head Cap Screws DIN 912-M6x16, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912-M6x45, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912-M6x60, St, bright zinc-plated Cap D30F, PA, grey Tightening torque, expanding hub screw: 9.6 Nm Tightening torque, clamping hub screw: 9.6 Nm
Scope of Delivery
Coupling housing 8 D40, Al Adapter plate 8 D40, Al D40/D5 coupling half, Al – reborable up to max. ⌀20 mm Expanding hub coupling half D40/D15, St and Al Coupling insert D40, PU, green Centring piece D50-D22, St 4 Hexagon Socket Head Cap Screws DIN 912-M6x16, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912-M6x45, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912-M6x60, St, bright zinc-plated Cap D30F, PA, grey Tightening torque, expanding hub screw: 9.6 Nm Tightening torque, clamping hub screw: 9.6 Nm
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 1.05 kg |
| Maximum permissible torque of coupling – drive side | Mmax = 20 Nm |
| Efficiency | . = 1 |
| Delivery unit | 1 set |
The Drive Sets are configured for the Linear Units that feature a hollow shaft diameter of 15 mm. The Coupling is supplied ready-to-install with a Housing and can be fitted directly to the Linear Unit. The drive side is prepared for connecting an Axial Planetary Gearbox (AP) or a Bevel Planetary Gearbox (WP).
