| Direct-Fastening Set 8 90°, stainless | CADPDFRFQ |
Preview
Direct-Fastening Set 8 90°, stainless
Fastener, die-cast steel Countersunk Screw M8x27, St O-ring, NBR, black Hexagon Socket Head Cap Screw DIN 7984-M6x14, St
Scope of Delivery
Fastener, die-cast steel Countersunk Screw M8x27, St O-ring, NBR, black Hexagon Socket Head Cap Screw DIN 7984-M6x14, St
Properties
| line 8 | line 8 |
|---|---|
| Property | stainless |
| ESD-safe | Yes |
| Weight | m = 30 g |
| Delivery unit | 1 set |
| Tightening torque, stainless | Mstainl. = 5.5 Nm |

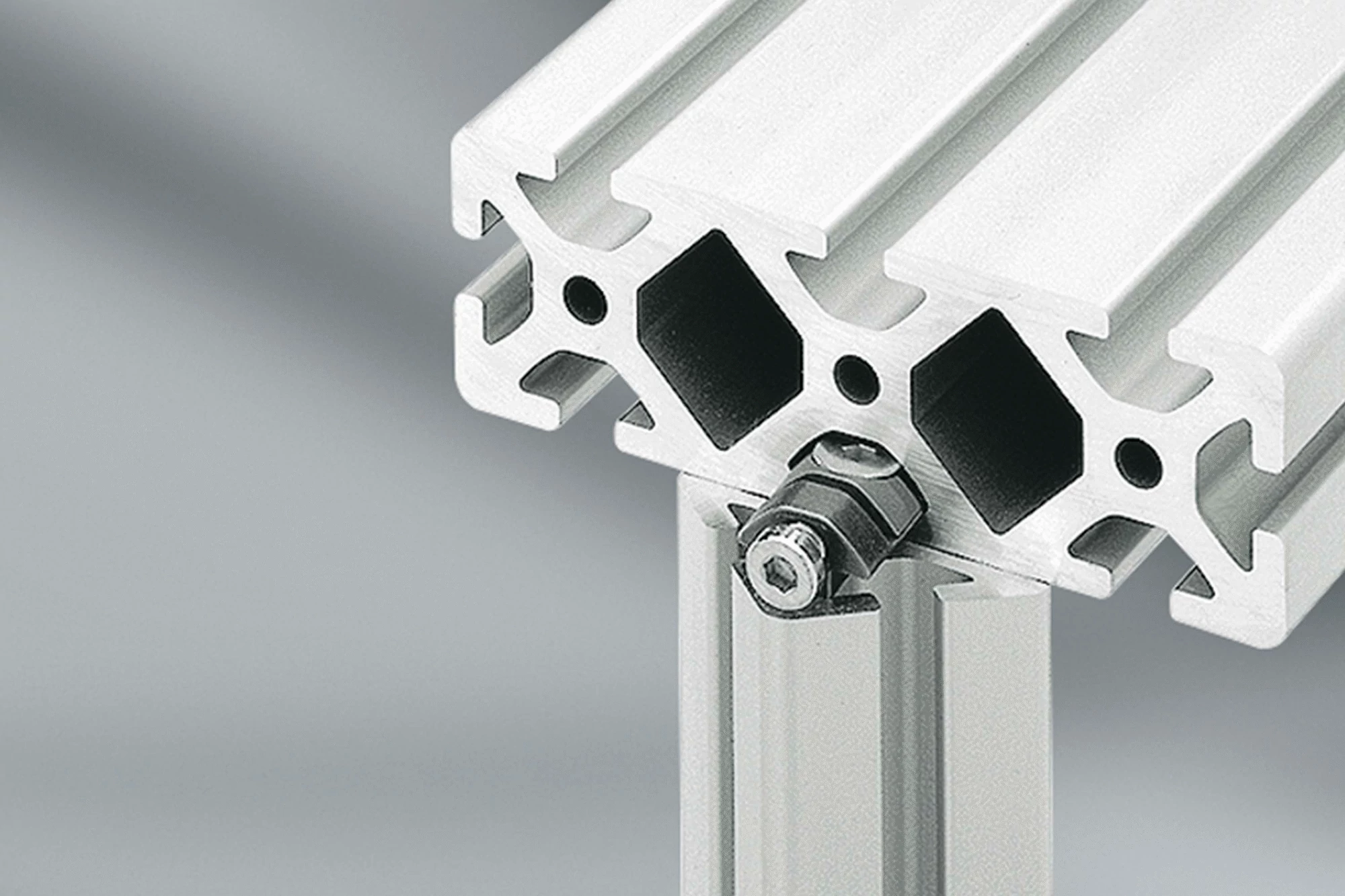

Direct-Fastening Set 8 90° is used for right-angled connection of Profiles 8. The profile can be secured at the end face and at any angle. The core bore must have an M8x18 thread.
