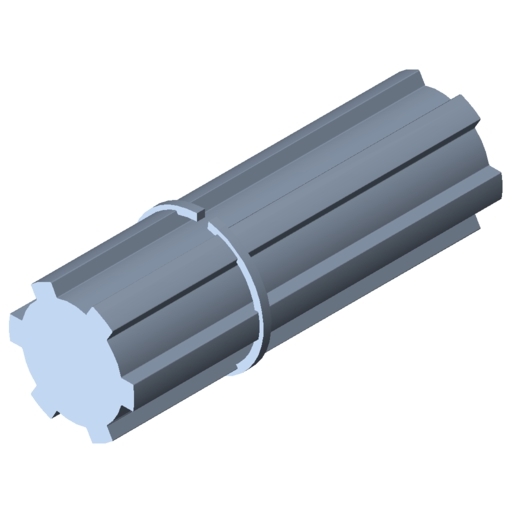

Connecting Shaft VK32 R25
Multi-Spline Shaft similar to DIN ISO 14 6x26x32, St, C 45 k Snap Ring W32
Scope of Delivery
Multi-Spline Shaft similar to DIN ISO 14 6x26x32, St, C 45 k Snap Ring W32
Properties
| Torque max. | Mmax. = 60 Nm |
|---|---|
| ESD-safe | No |
| Weight | m = 470 g |
| Delivery unit | 1 pce. |

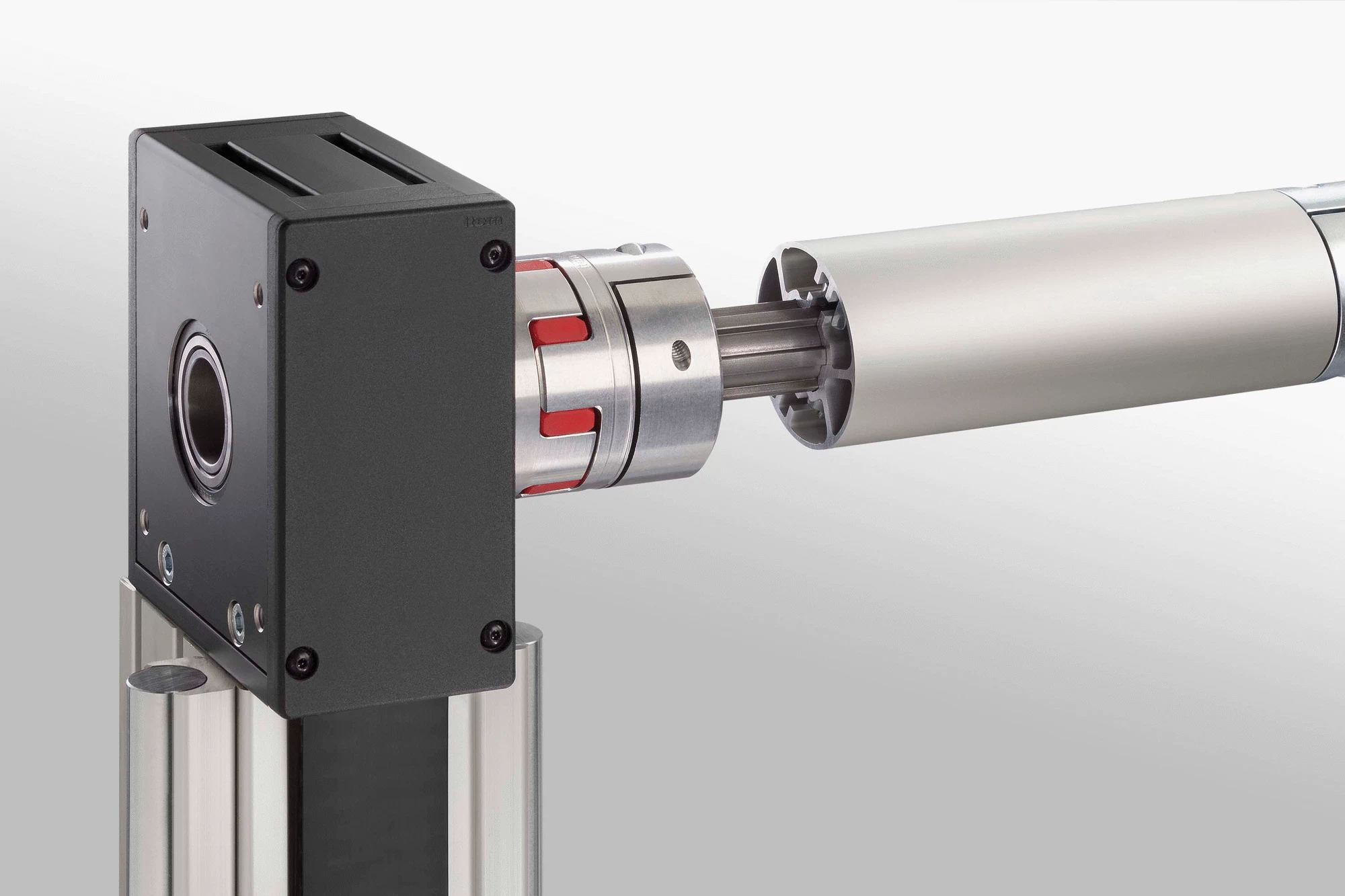

Connecting Shafts are used to provide a torsionally rigid connection between the mechanical drive elements and the corresponding Coupling Half. The Connecting Shafts are inserted into the drive elements until they come up against the stop of the Snap Ring. The clampable Coupling Half is slipped onto the free end of the shaft and clamped axially such that the length of the coupling matches the length of the Coupling Housing, and the Coupling Inserts are not under any axial load.
