Compact Module KE2 Ball Screw

Compact Module KE2 Ball Screw

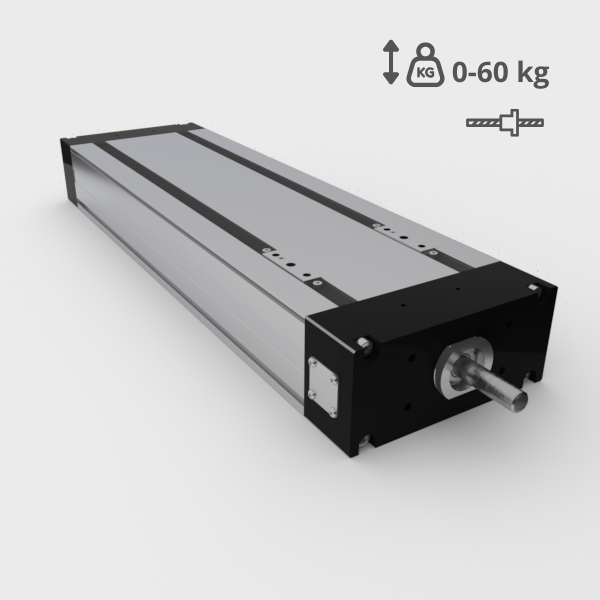

KE2 offers a double ball rail and ball screw for superior positioning and accuracy. Enhanced stiffness and feed force. Optional motor assembly available.

Configurated product data

Nothing generated yet

You must configurate your product below before requesting quote
Art. no: Compact Module KE2 Ball Screw Category: Tag:
Set CAD-format
Compact_Module_KE2

Preview



Compact module

Maximum permissable load [kN]

Maximum permissable torque [nm]
Type static Dynamic Static Dynamic
Cy1 0.12 1.2 Cy1 1.2 Cy 2 1.2 Cy2 1.2 Mx My Mz Mx My Mz
KE1.2...R... 11.12 11.2 6.5 6.5 275 60 60 158 35 35
KE1.4...R... 22.5 22.5 13.0 13.0 550 330 330 316 210 210
KE2.2...R... 35.0 35.0 18.0 18.0 1064 204 204 590 226 226
KE2.4...R... 70.0 70.0 36.0 36.0 2129 1400 1392 1180 1180 1180
KE3.2...R... 59.9 59.9 34.2 34.2 2427 266 266 1507 202 202
KE3.4...R... 119.9 119.9 68.4 68.4 4854 2100 2100 3014 2044 2044





Normal Size Dimensions [mm] No. of teeth Max. Belt length Weigth
i E F G* H K Lg Zm Zke Ødw mm kg
KE1... 1:1 90.5...104(92.5) 80 41 21 39 180 28 28 Ø16 325 0.860
1:1.5 90.5...104(99.4) 80 41 21 39 180 28 42 Ø16 375 0.990
1:2 90.5...104(94.8) 80 41 21 39 180 21 42 Ø10 350 0.980
KE2... 1:1  130...135(132.5)  100 43 43 46 247  32  32 Ø19  425  1.600
1:1.5 131...139(135)  100 43 43 46 247  32  48 Ø19  475  1.800
1:2  131.5...135.5(133.5)  100 43 43 46 247  24  48 Ø12  450  1.700
KE3... 1:1  130...135(132.5)  100 43 54 46 247  32  32 Ø19  425  1.600
1:1.5 131...139(135)  100 43 54 46 247  32  48 Ø19 475  1.800
1:2  131.5...135.5(133.5)  100 43 54 46 247  24  48 Ø12  450  1.700



Art. No Nominal Size Dimensions Weight
A B C D1 D2 E F H1 H2 H3 H4 Pv S Kg
KE1.2 plate KE1.2... 90 60 16 20 20 30 8.5 6 12.0 3.5 7.7. 16.5 37.00 0.183
KE2.2 plate KE2.2... 110 60 16 20 20 40 7 6 12.0 3.5 7.7 15 37.5 0.213
KE3.2 plate KE3.2... 145 125 20 27 40 40 7 8 16.5 3.5 9.8 44.5 53.0 0.727



Art. No Nominal Size Dimensions Weight
A B C D1 D2 E F H1 H2 H3 H4 Pv S Kg
KE1.4.plate KE1.4... 90 125 16 20 20 30 8.5 6 12.0 3.5 7.7. 16.5 25.7 0.385
KE2.4.plate KE2.4... 110 155 16 20 20 40 7 6 12.0 3.5 7.7 20 35.00 0.565
KE3.4.plate KE3.4... 145 190 20 27 40 40 7 8 16.5 3.5 9.8 27 59.5 1.100



Art. No Nominal Size Dimensions Weight
Type A B C D E F G* H J K Kg
SPKE2 KE1... Ι 35 7.5 20 7.6 2.6 14.5 11 5 Ø8 Ø4.5 0.021
SPKE2 KE1... ΙΙ 80 10 20 7.6 2.6 14.5 11 5 Ø8 Ø4.5 0.048
SPKE3 KE2/3... Ι 60 10 40 10.5 4.5 19.5 15 7 Ø 11 Ø 6.5 0.072
SPKE3 KE2/3... ΙΙ 80 10 20 10.5 4.5 19.5 15 7 Ø 11 Ø 6.5 0.118




Normal Size

Dimensions
Designation L (with buffer) mm Lm mm Length ball screw mm length protective ribbon mm Weight kg
KE2.2...AR...P Stroke + 182 L - 62 L + 12 2 x Stroke + 330 2.13kg + 0.852 kg/100 mm stroke
KE2.4...AR...P Stroke + 267 L - 62 L + 12 2 x Stroke + 415 3.48 kg + 0.852 kg/100 mm Stroke
