| C-Rail, Bearing Set 8 D14 3R | CADPDFRFQ |
Preview

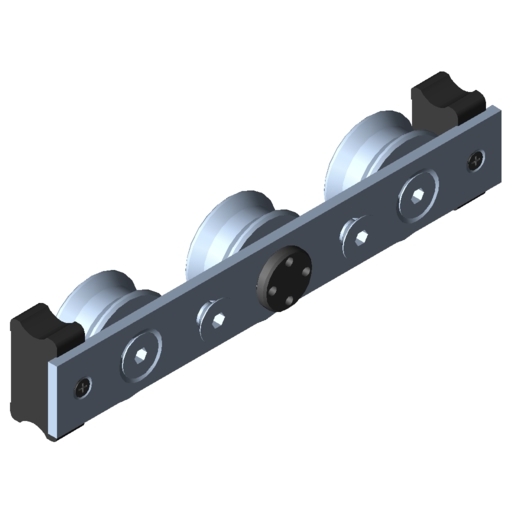

C-Rail, Bearing Set 8 D14 3R
C-Rail, slide plate complete, St, bright zinc-plated 2 Rollers D14, centric Roller D14, eccentric 2 C-Rail, Lubricating Systems 8 D14 2 Countersunk Screws DIN 7991-M8x16, St, bright zinc-plated
Scope of Delivery
C-Rail, slide plate complete, St, bright zinc-plated 2 Rollers D14, centric Roller D14, eccentric 2 C-Rail, Lubricating Systems 8 D14 2 Countersunk Screws DIN 7991-M8x16, St, bright zinc-plated
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 576 g |
| Force max | Fmax. = 1500 N |
| Delivery unit | 1 set |
Pre-assembled Bearing Sets for special bearing units for creating continuous guide profiles using Slide Profiles. The Slide Profiles must be machined appropriately for installing the Bearing Sets.
The C-Rail Systems for Profiles 5, 6 and 8 are each available in 3 versions:
F 1 = 1500 N F 2 = 750 N
