| Base Plate 12 120×60, M16, black | CADPDFRFQ |
Preview

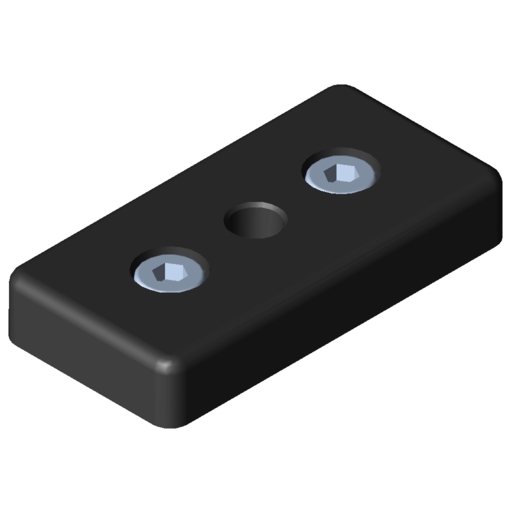

Base Plate 12 120×60, M16, black
2 Cap Screws DIN 7984-M12x30, St, bright zinc-plated 2 washers DIN 433-13, St, bright zinc-plated
Scope of Delivery
2 Cap Screws DIN 7984-M12x30, St, bright zinc-plated 2 washers DIN 433-13, St, bright zinc-plated
Properties
| line 12 | line 12 |
|---|---|
| ESD-safe | No |
| Thread | M16 |
| Weight | m = 788 g |
| Delivery unit | 1 set |
| Material | Die-cast zinc, black |
| Colour | black |
Stable fastening plates for accommodating Adjustable Feet, Castors and other elements. The Base Plates/Transport Plates can be screwed into the core bores in the end faces of the profiles or onto the sides of the profiles.
