| Assembly Set 8 PS 2-15 Rail | CADPDFRFQ |
Preview

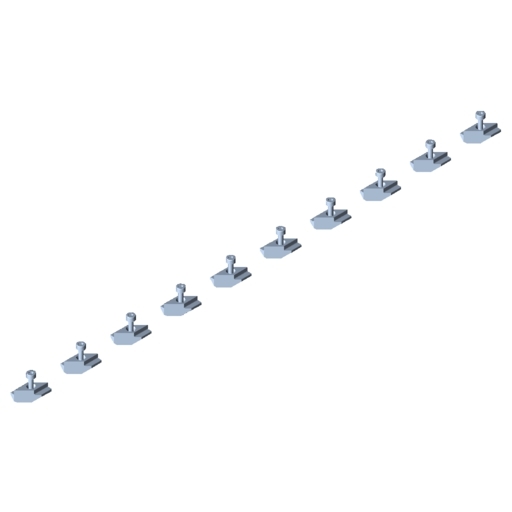

Assembly Set 8 PS 2-15 Rail
10 Hexagon Socket Head Cap Screws DIN 912-M3x14, St, bright zinc-plated 10 T-Slot Nuts 8 Zn M3

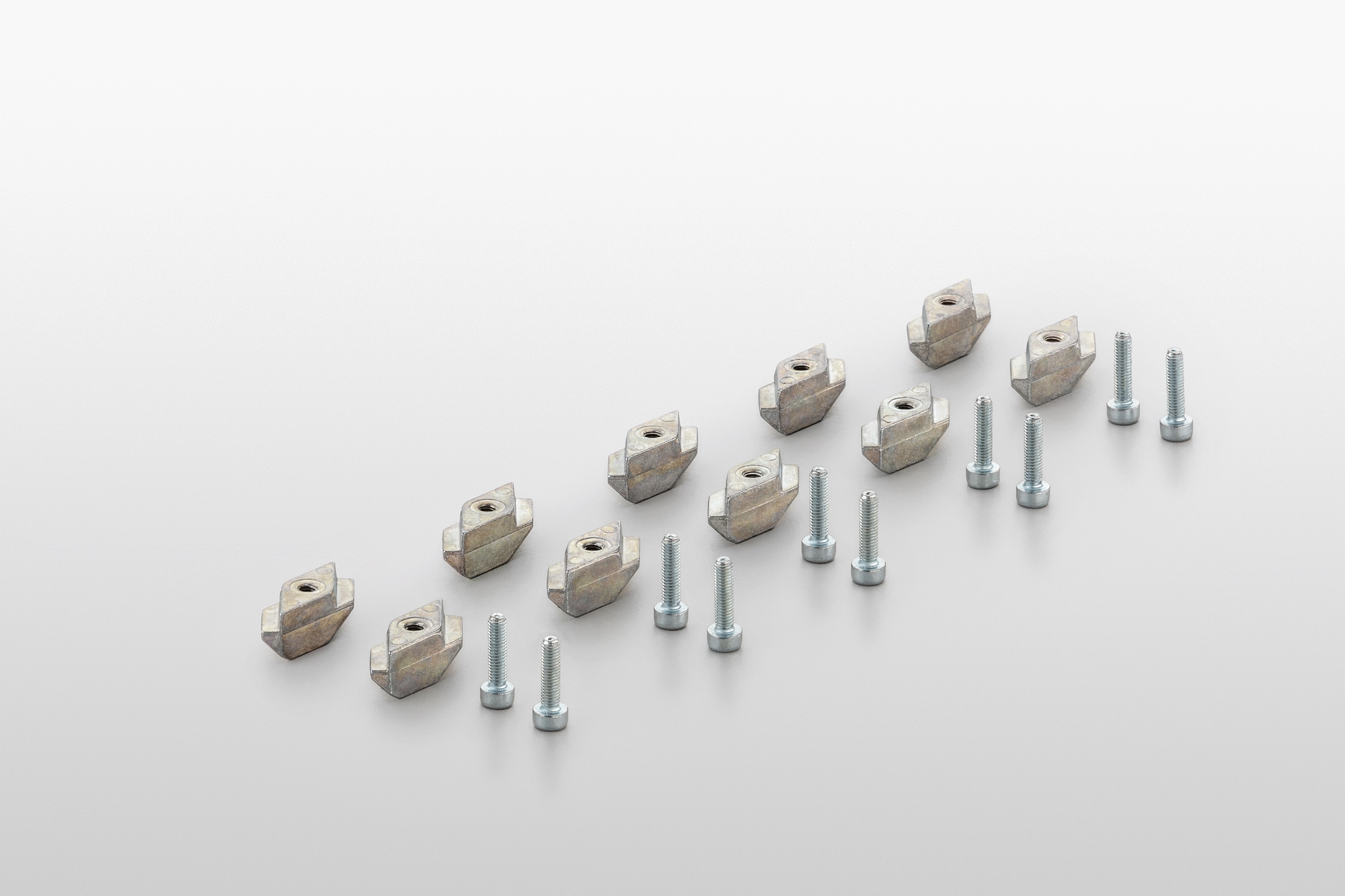

Scope of Delivery
10 Hexagon Socket Head Cap Screws DIN 912-M3x14, St, bright zinc-plated 10 T-Slot Nuts 8 Zn M3
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 60 g |
| Delivery unit | 1 set |

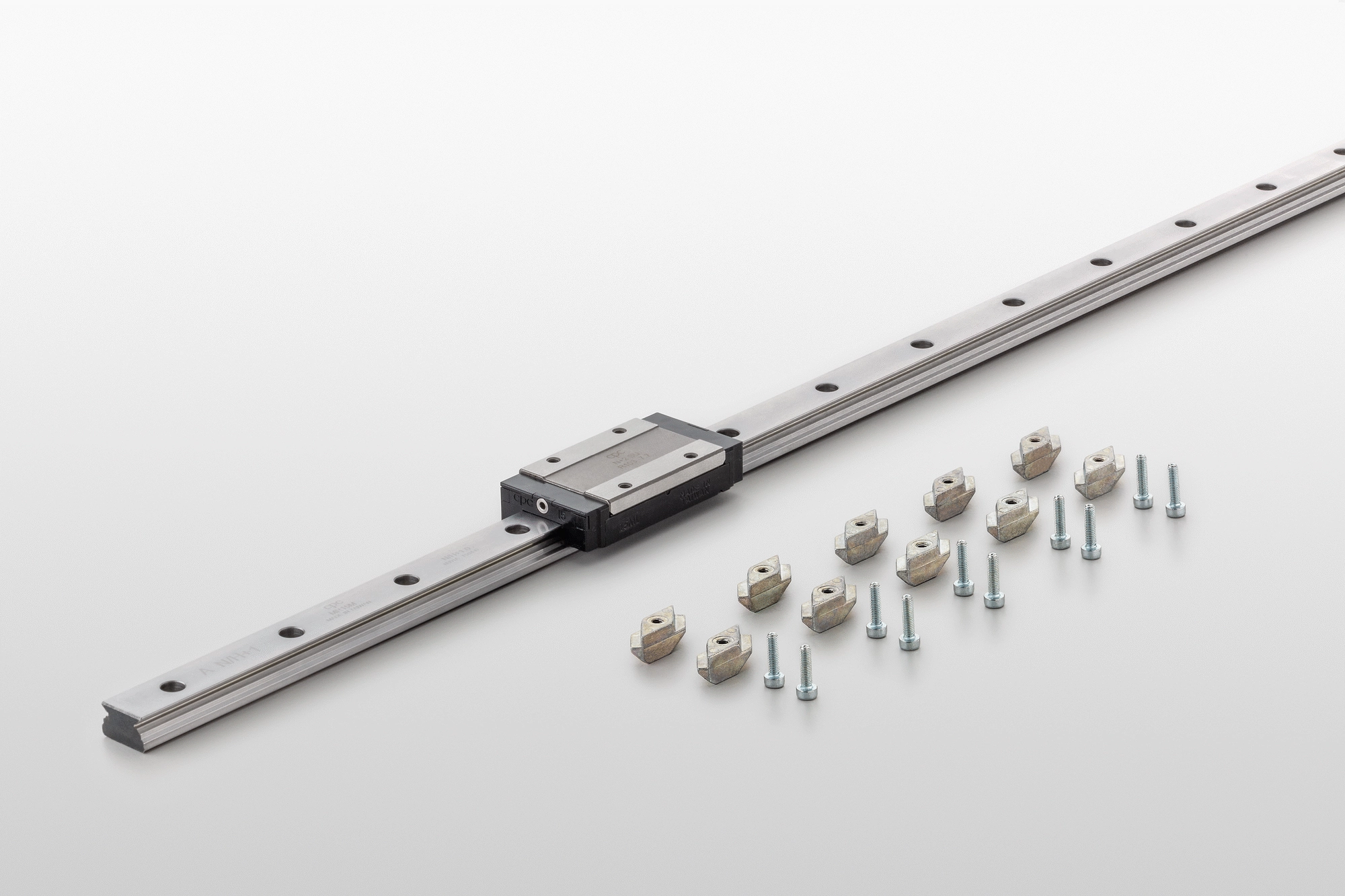

Moving in the tightest of spaces: Pairing up Linear Guide Rail PS 2-15 and Bearing Carriage PS 2-15 creates an exceptionally low-profile and compact Linear Guide. The low-friction Bearing Carriage is designed for a load of 750 N. Linear Guide Rail PS 2-15 is fastened to the Line 8 groove of the support profile using Assembly Set 8 PS 2-15 Rail (0.0.708.78).
