This product has extended CAD support, please contact Aluflex with measurement specifications and desired CAD format on the product and Aluflex will send you the desired CAD file.
XYGLT12-8-150-200RA3
Intermediate mounting plate for GLTH/B linear module, installed between the X-axis and Y-axis for a linear gantry system.
| CAD Step | |
| Article number | Download Step CAD |
| XYGLT12-8-150-200RA3 |  |

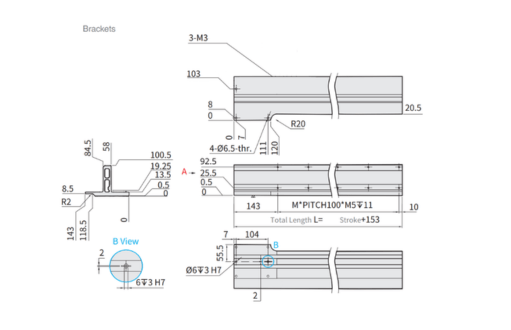

| Stroke | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| L | 253 | 353 | 353 | 453 | 453 | 553 | 553 | 653 | 653 | 753 | 753 |
| M | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 |
| Lenght Stroke in Y | Article Number Right | Article Number Left |
| 50-100 | XYGLT12-8-50/100RA1 | XYGLT12-8-50/100LA3 |
| 150-200 | XYGLT12-8-150/200RA1 | XYGLT12-8-150/200LA3 |
| 250-300 | XYGLT12-8-250/300RA1 | XYGLT12-8-250/300LA3 |
| 350-400 | XYGLT12-8-350/400RA1 | XYGLT12-8-350/400LA3 |
| 450-500 | XYGLT12-8-450/500RA1 | XYGLT12-8-450/500LA3 |
| 550-600 | XYGLT12-8-550/600RA1 | XYGLT12-8-550/600LA3 |
