| Universal-Fastening Set 8, stainless | CADPDFRFQ |
Preview
Universal-Fastening Set 8, stainless

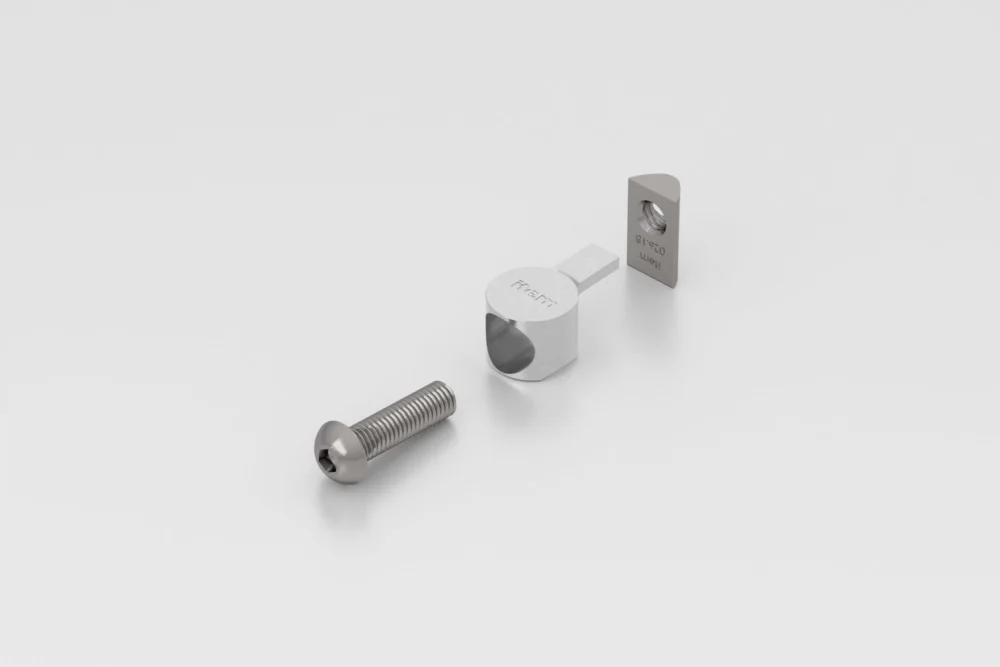

Universal Fastener 8, die-cast zinc Button-Head Screw ISO 7380-M8x30, St, stainless T-Slot Nut 8 St M8, stainless
Scope of Delivery
Universal Fastener 8, die-cast zinc Button-Head Screw ISO 7380-M8x30, St, stainless T-Slot Nut 8 St M8, stainless
Properties
| line 8 | line 8 |
|---|---|
| Property | stainless |
| ESD-safe | Yes |
| Weight | m = 41 g |
| Delivery unit | 1 set |
| Tightening torque, stainless | Mstainl. = 20 Nm |

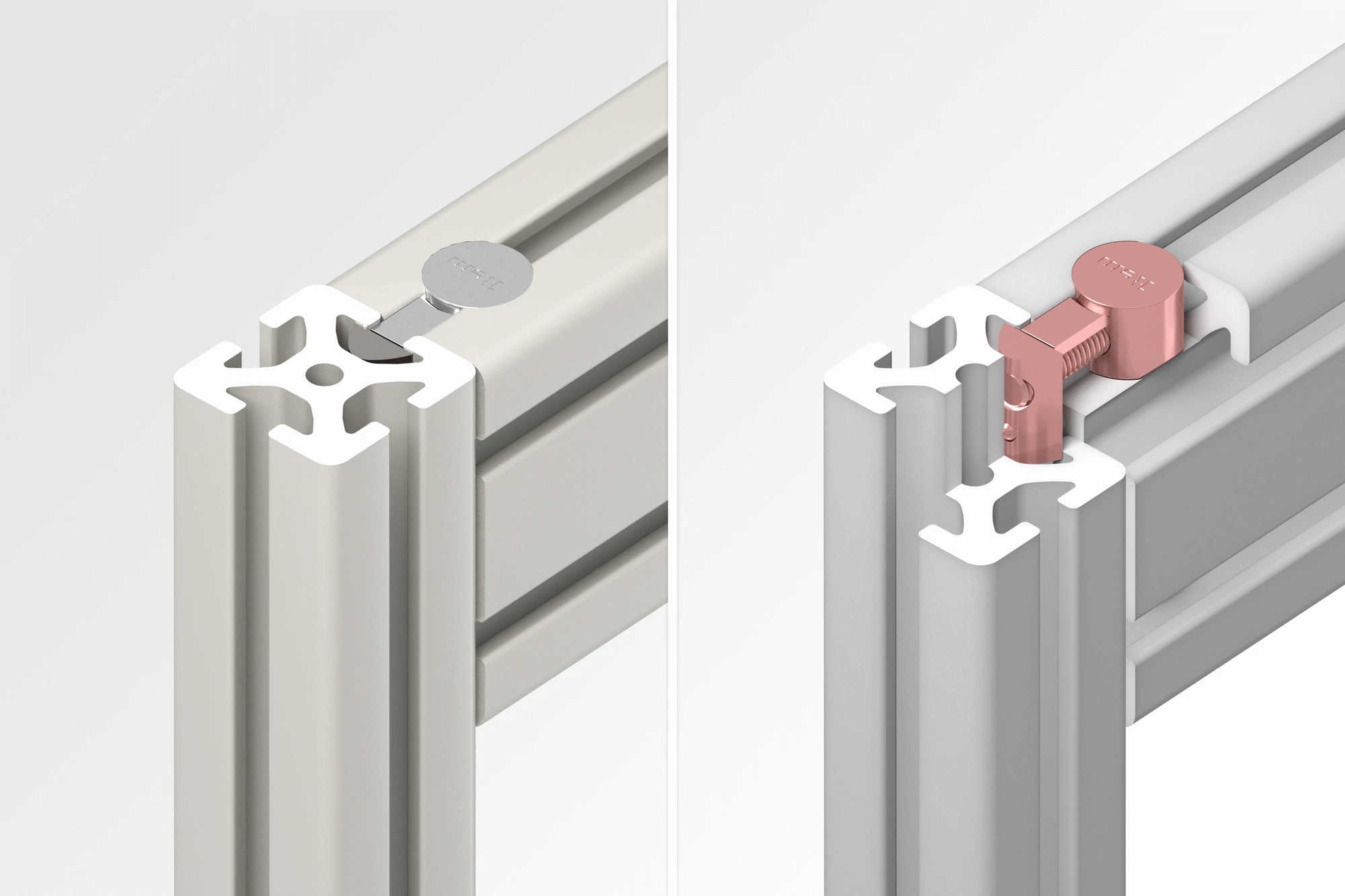

Universal-Fastening Set 8, stainless from item joins two Line 8 profiles at a right angle to create a connection that is highly resistant to displacement, torsion and bending. The profile can be retrofitted and moved at any time. The Universal Fastener is made of die-cast zinc and requires an installation bore. The screw is made of stainless steel.
Universal Fasteners should generally be used in pairs. To speed up the installation process, sets that comprise two Universal Fasteners and one T-Slot Nut with two threads are also available for various profile variants.
Profiles can be retrofitted or moved in existing constructions using universal fastening sets.
Universal-Fastening Sets should always be used in pairs.
