| Universal-Fastening Set 5 20, bright zinc-plated | CADPDFRFQ |
Preview
Universal-Fastening Set 5 20, bright zinc-plated
2 Universal Fasteners 5, die-cast zinc 2 Hexagon Socket Head Cap Screws DIN 912-M4x14, St, zinc-plated 1 T-Slot Nut V 5 St 2xM4-18, zinc-plated

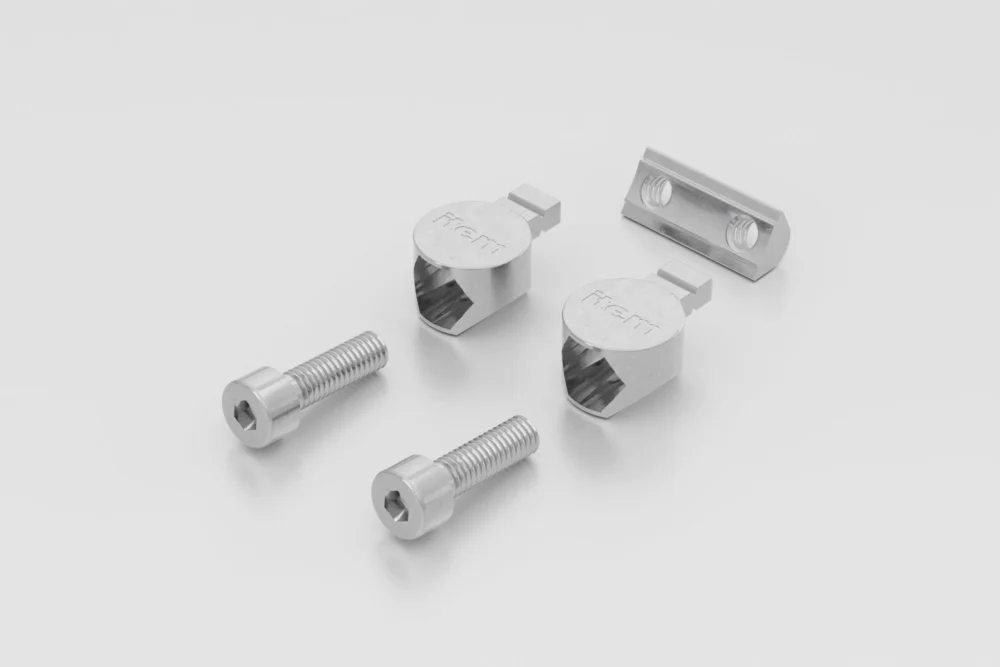

Scope of Delivery
2 Universal Fasteners 5, die-cast zinc 2 Hexagon Socket Head Cap Screws DIN 912-M4x14, St, zinc-plated 1 T-Slot Nut V 5 St 2xM4-18, zinc-plated
Properties
| Torque | M = 3 Nm |
|---|---|
| line 5 | line 5 |
| Property | bright zinc-plated |
| ESD-safe | Yes |
| Weight | m = 13 g |
| Delivery unit | 1 set |

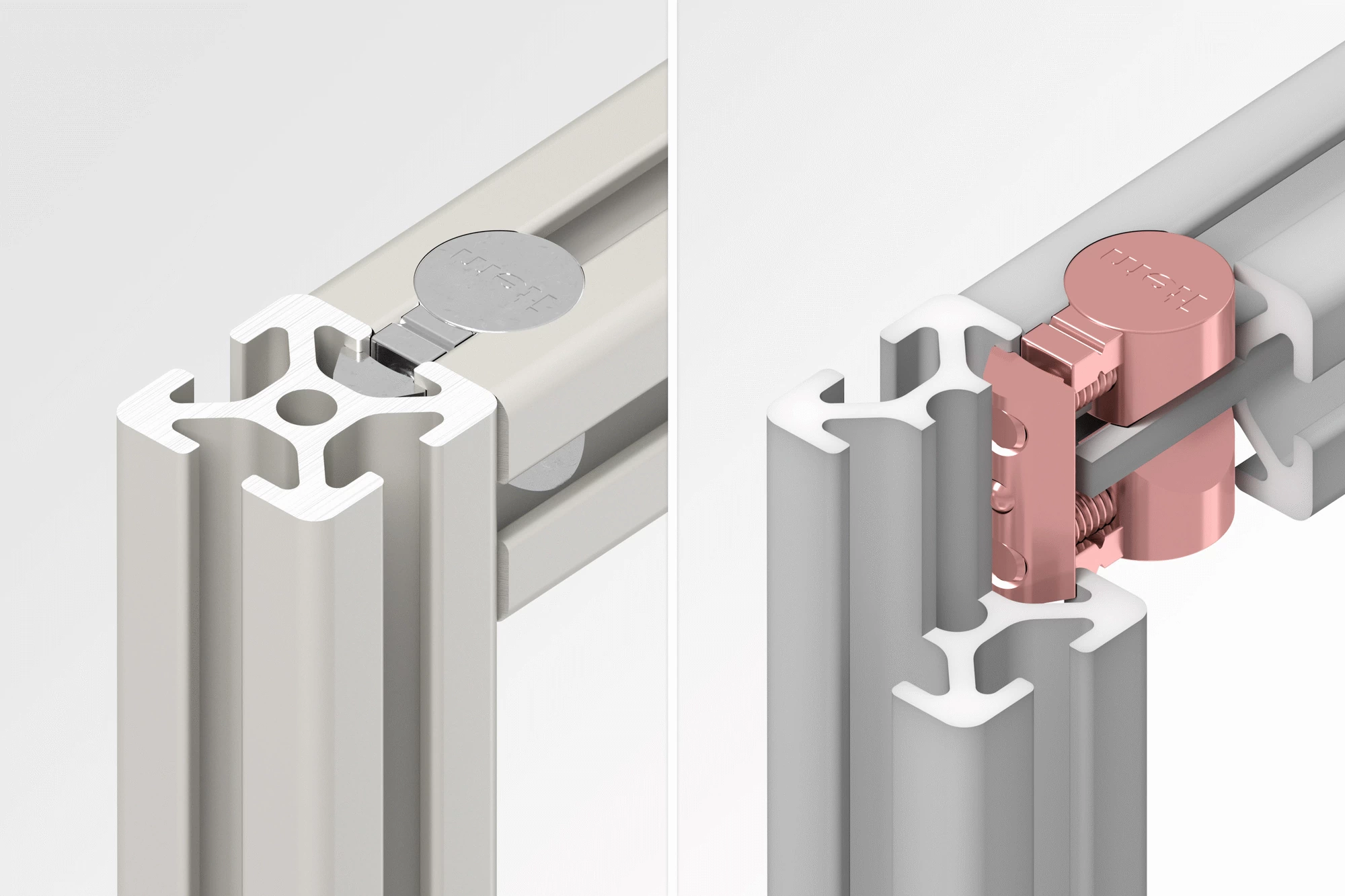

Universal-Fastening Set 5 20 from item joins two Line 5 profiles at a right angle to create a non-rotating connection that is highly resistant to displacement, torsion and bending. The T-Slot Nut with two threads makes it easier to fasten both Universal Fasteners in the modular dimension of 20 mm. The profile can be retrofitted and moved at any time. The Universal Fastener is made of die-cast zinc and requires an installation bore.
Universal Fasteners should generally be used in pairs. To speed up the installation process, sets that comprise two Universal Fasteners and one T-Slot Nut with two threads are also available for various profile variants.
Profiles can be retrofitted or moved in existing constructions using universal fastening sets.
