Tube  D16 6 A/F

Configurated product data

Nothing generated yet

You must configurate your product below before requesting quote
Art. no: 0.0.699.98 Category: Tag:
Set CAD-format
0.0.699.98

Preview

Properties

LineWork Bench System
ESD-safeNo
Weightm = 347 g/m
Delivery unitcut-off max. 6000 mm
MaterialAl

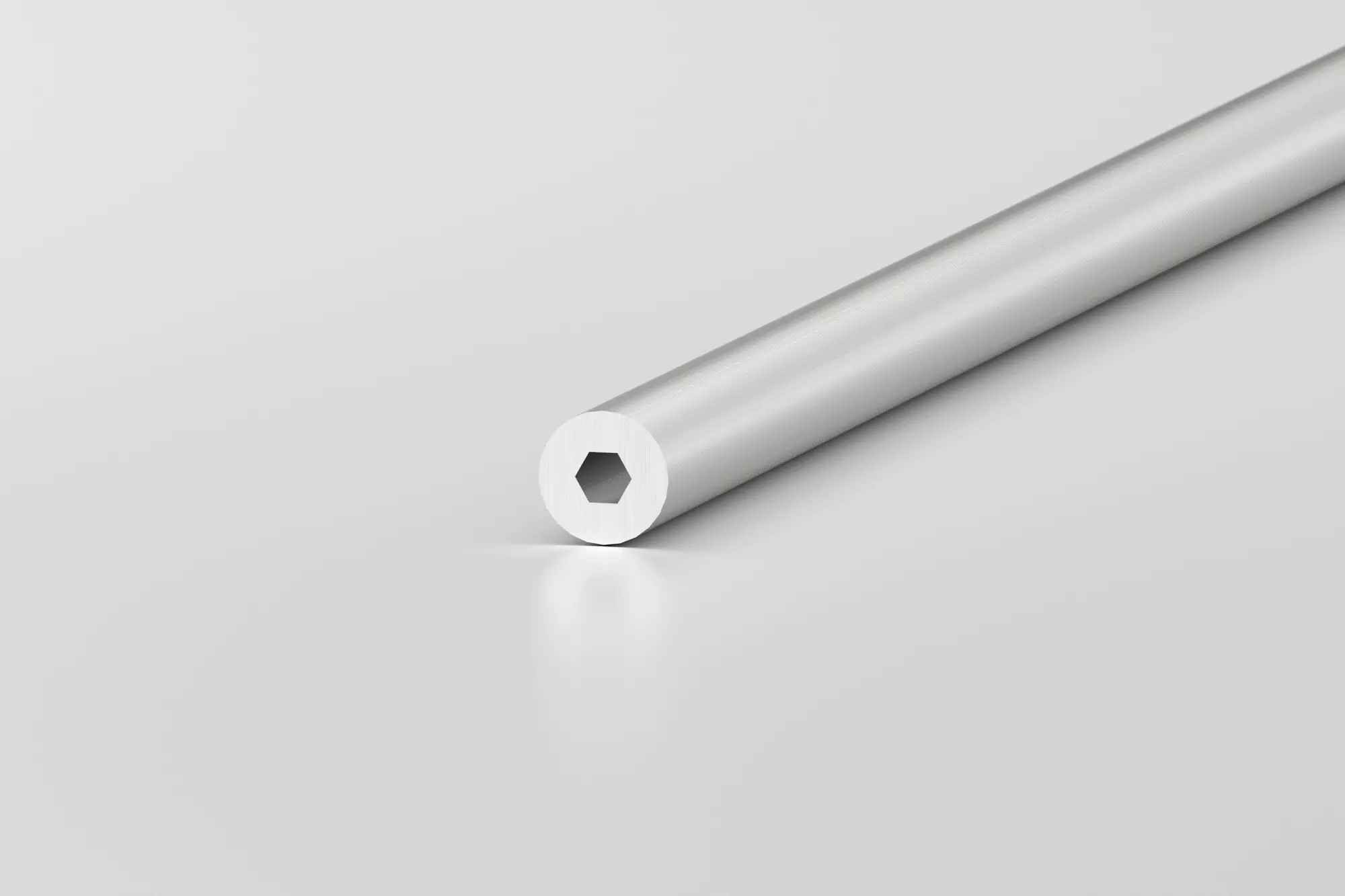

Tube D16 6 A/F is used in combination with Table Column Sets K as a means of synchronising torque transmission in the crank-driven, height-adjustable table columns. The couplings are connected via the 6 A/F hexagon socket. The Tube is concealed within a Profile 8 80x40 light (0.0.026.34) or a Profile Tube D40/D30 (0.0.661.59).

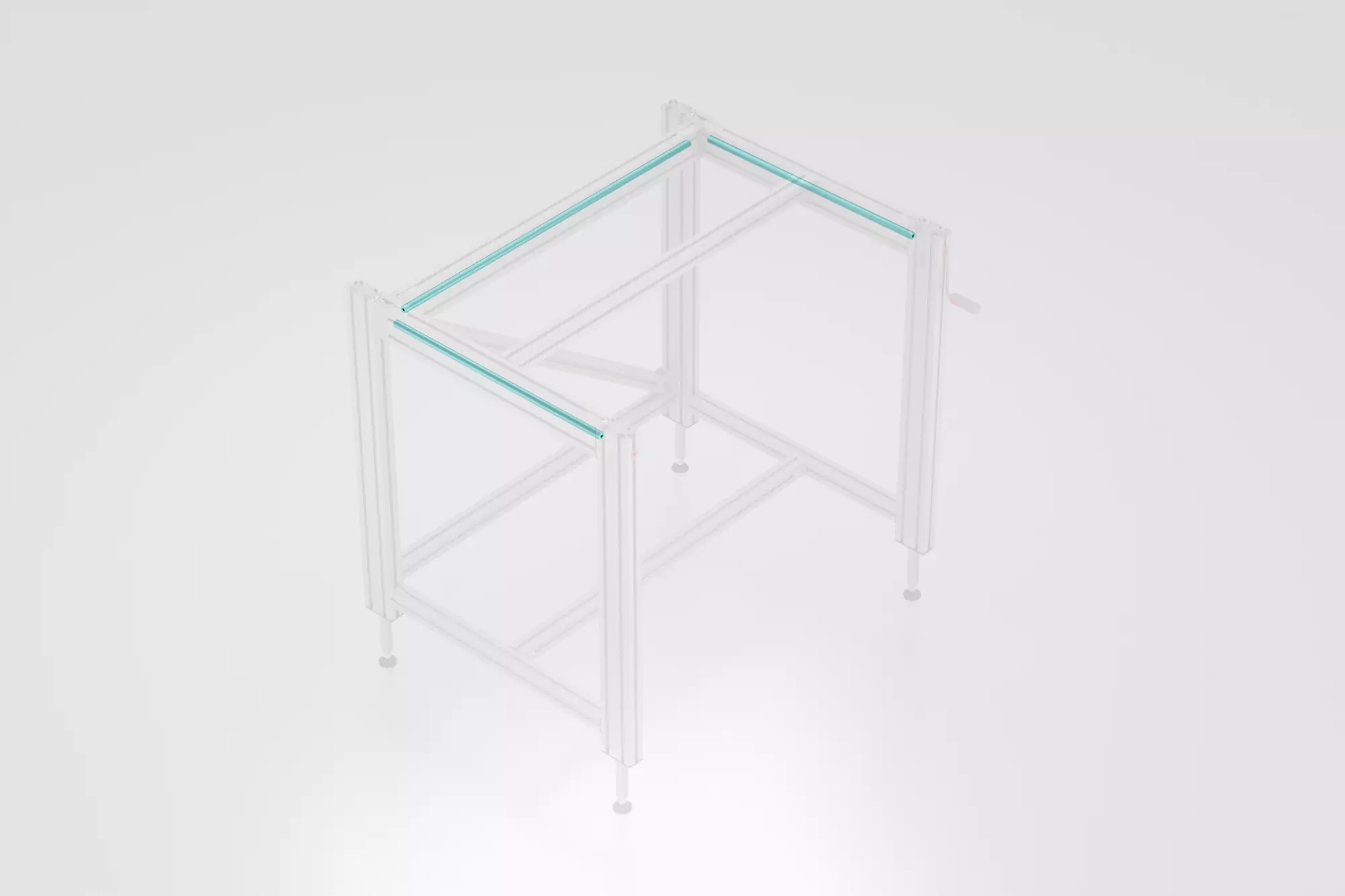

The Tubes D16 6 A/F are concealed within the framework made of Profiles 8 80x40. This creates an invisible and secure drive synchronisation mechanism for Table Column Set 8 80x40 K.

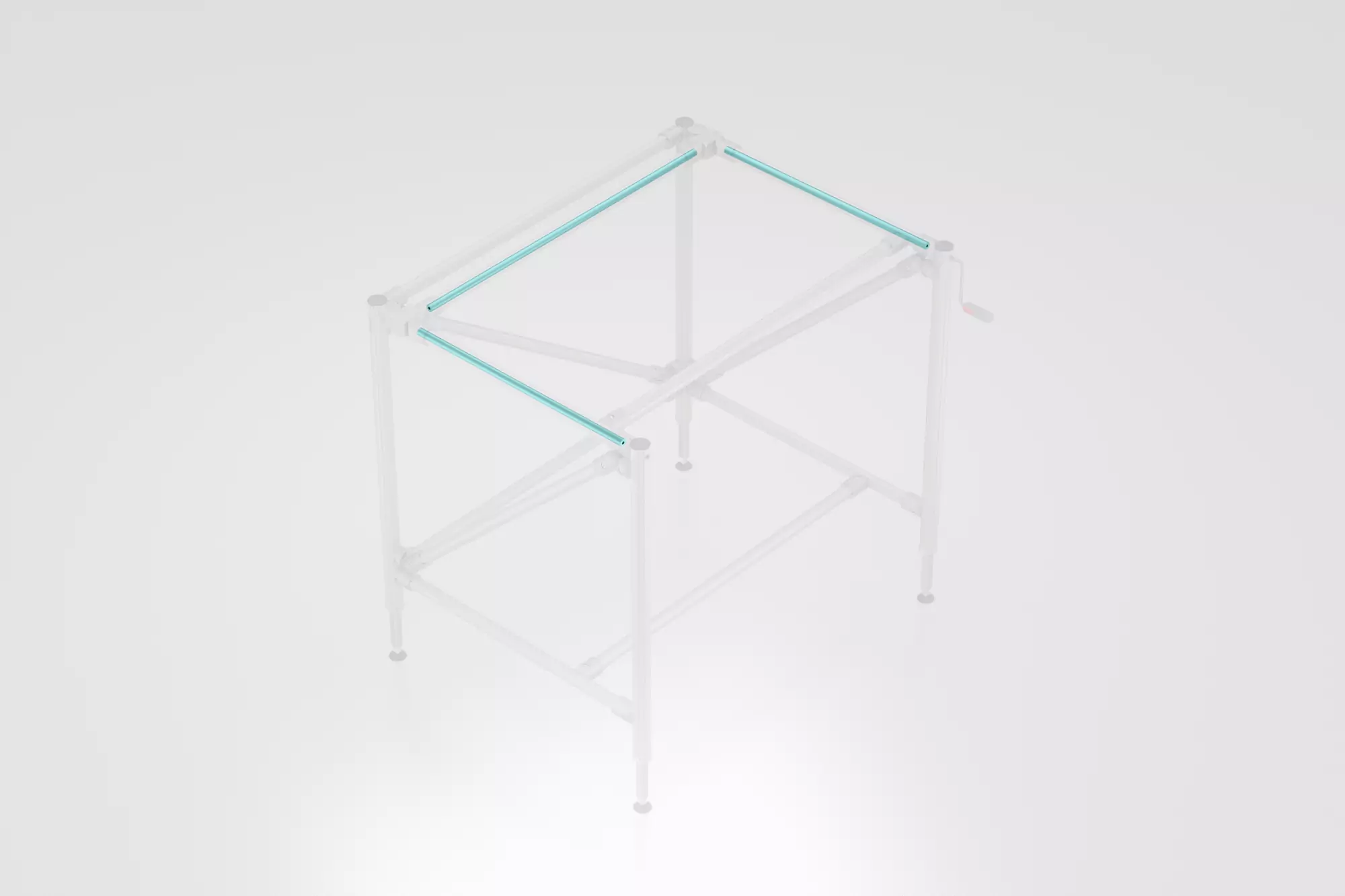

Invisible from the outside, Tubes D16 6 A/F run through the inside of the table frame, evenly distributing the drive torque in Table Column Set D40/D30 K.
