| Transverse Fastener D30 | CADPDFRFQ |
Preview
Transverse Fastener D30
Preassembled 2 fastener halves, die-cast Al, natural Hexagon Socket Head Cap Screw similar to DIN 912 M6x29.4, St, bright zinc-plated Hexagon nut DIN 934 M6-I8I, St, bright zinc-plated
Scope of Delivery
Preassembled 2 fastener halves, die-cast Al, natural Hexagon Socket Head Cap Screw similar to DIN 912 M6x29.4, St, bright zinc-plated Hexagon nut DIN 934 M6-I8I, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 65.3 g |
| Delivery unit | 1 pce. |
| Torque | M = 10 Nm |

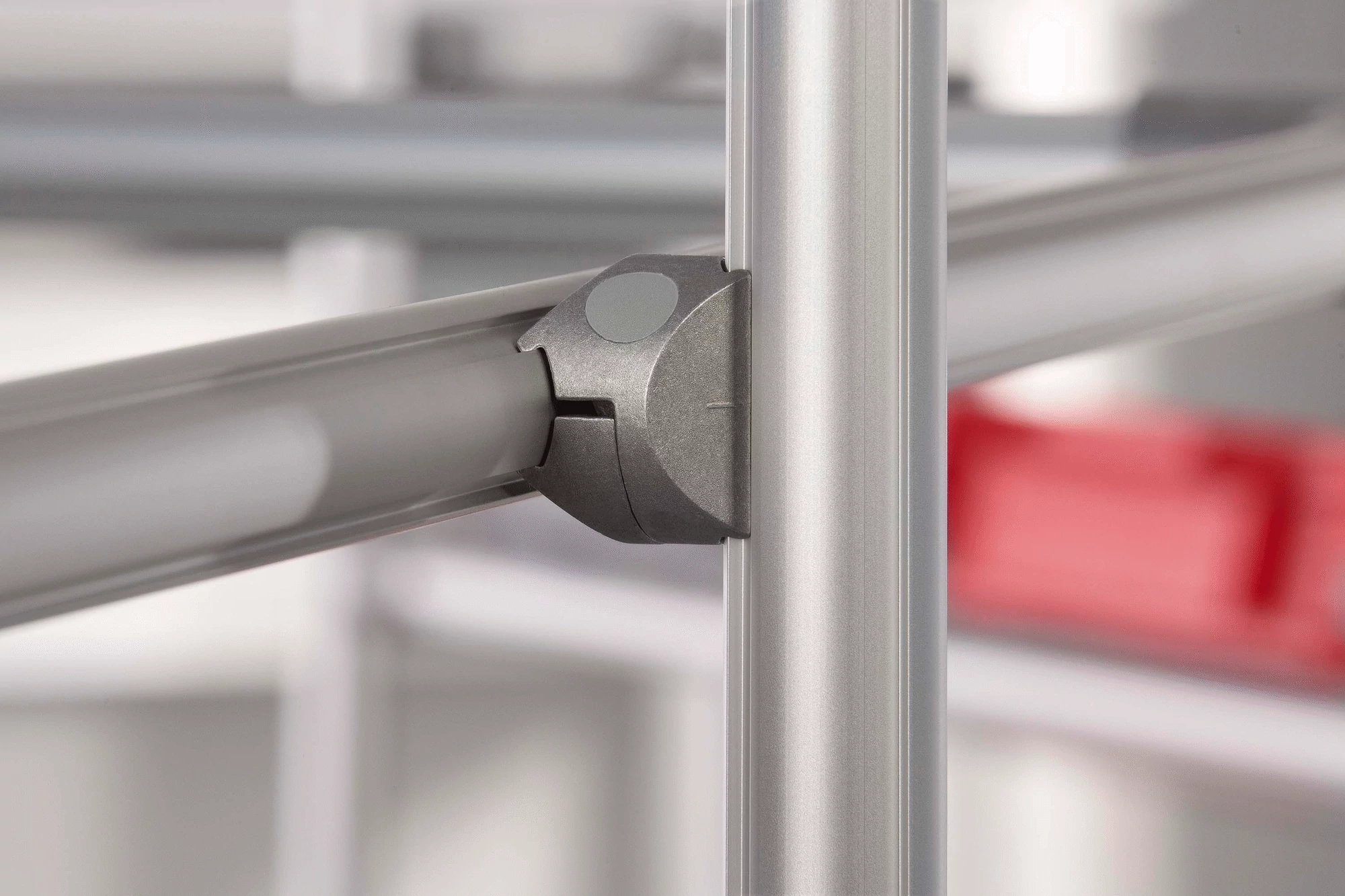

A fastener with a firm grip. Transverse Fastener D30 connects two Profile Tubes at a 90° angle to each other. The two-part fastener enables users to connect together Profile Tubes without disassembly. Simply clamp the Transverse Fastener onto both Profile Tubes and then tighten it. The tightened fastener holds the Profile Tubes together and the mechanically locked connection provides added support for the load-carrying profile fastener.
