| Timing-Belt Tensioner, Tensioning Block 8 R50 | CADPDFRFQ |

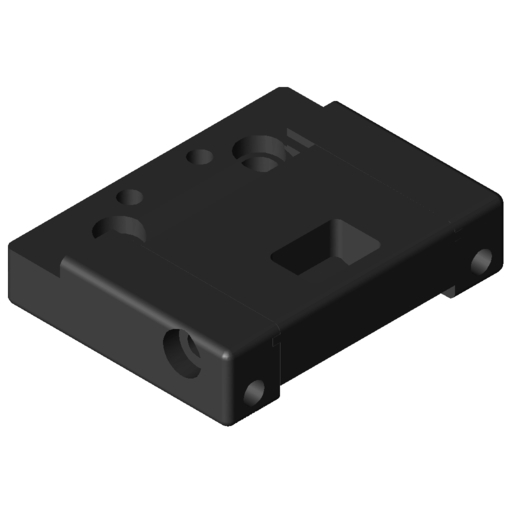

Preview

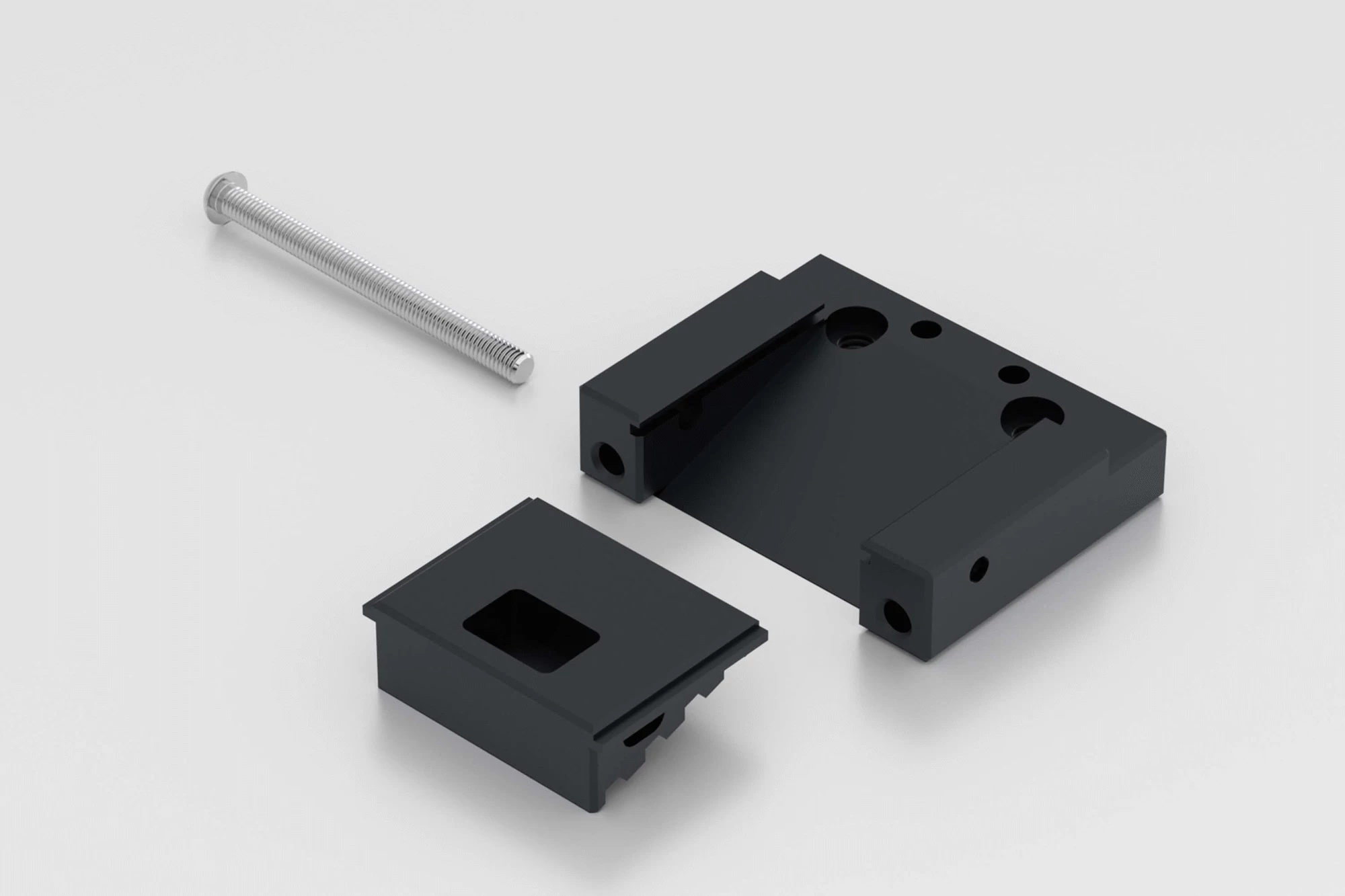

Timing-Belt Tensioner, Tensioning Block 8 R50
Tensioning Block, Al, anodized, black Interlocking fixing piece, Al, anodized, black
Scope of Delivery
Tensioning Block, Al, anodized, black Interlocking fixing piece, Al, anodized, black
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 205 g |
| Delivery unit | 1 set |
When fastening and tensioning the Timing Belt on a sliding carriage or support profile (using Counter-Reverse Unit 8) a Tensioning Block is required for each end of the Timing Belt. The number of Fixing Blocks is determined by the application.
Fastening and tensioning the Timing Belt on a sliding carriage using Tensioning Blocks and Fixing Block and the appropriate bolts. Where high loads are involved, Tensioning Block 8 and Fixing Block 8 will need to be pinned (dowel ISO 2338- ⌀ 6 mm ). The position of the dowels is indicated by the prepared bores ⌀ 5.5 mm.
The Timing-Belt Tensioner Holder is screwed together with the fixing block. The tensioning screws of the timing-belt tensioner are accessed through the holes provided.
