Timing-Belt Reverse Unit 8 80 R25 VK32
Timing-Belt Reverse Unit, die-cast zinc, black Ball-bearing timing pulley with multi-spline hub, hub geometry VK14 for Multi-Spline Shaft VK32 DIN ISO 32 – 6x26x32, hub depth 29 mm One revolution corresponds to 280 mm, effective radius r w = 44.6 mm Frict. moment with 1‰ pre-tensioning of the Timing Belt: (Emergence dim. 40) M R = 1.05 Nm (Emergence dim. 80) M R = 0.55 Nm Max. load: M D = 52 Nm Timing Belt length in the Timing-Belt Reverse Unit for 90° reversal: 190 mm 180° reversal (emergence dim. 40): 360 mm 180° reversal (emergence dim. 80): 340 mm 2 Universal Fasteners 8 2 Button-Head Screws ISO 7380-M8x30, St, bright zinc-pl. Special T-Slot Nut M8, cast steel Pitch p = 10 mm Number of teeth z = 28 Notes on Use and Installation

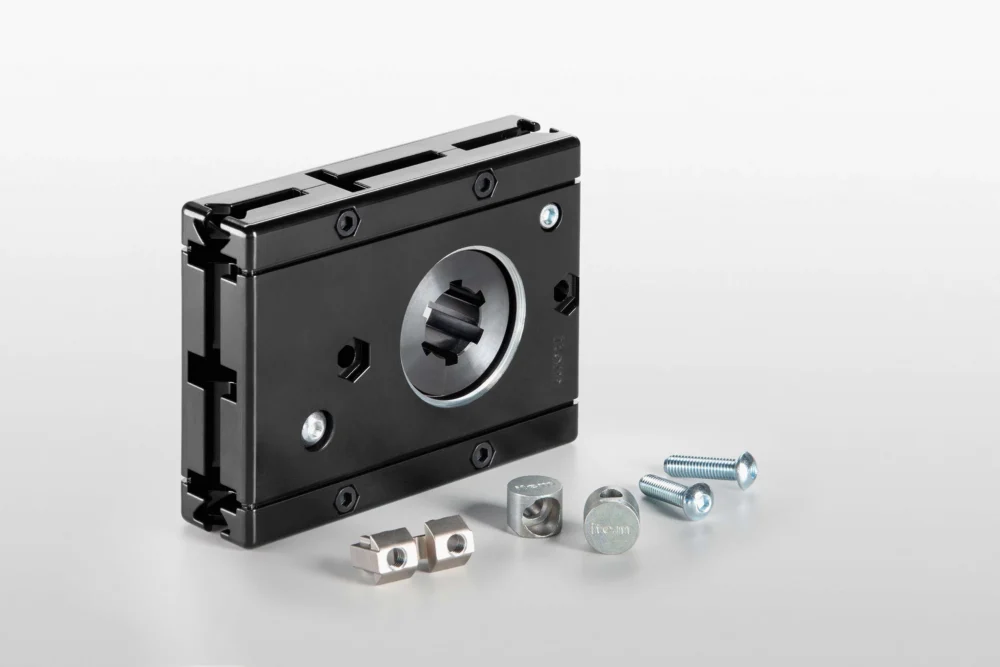

Scope of Delivery
Timing-Belt Reverse Unit, die-cast zinc, black Ball-bearing timing pulley with multi-spline hub, hub geometry VK14 for Multi-Spline Shaft VK32 DIN ISO 32 - 6x26x32, hub depth 29 mm One revolution corresponds to 280 mm, effective radius r w = 44.6 mm Frict. moment with 1‰ pre-tensioning of the Timing Belt: (Emergence dim. 40) M R = 1.05 Nm (Emergence dim. 80) M R = 0.55 Nm Max. load: M D = 52 Nm Timing Belt length in the Timing-Belt Reverse Unit for 90° reversal: 190 mm 180° reversal (emergence dim. 40): 360 mm 180° reversal (emergence dim. 80): 340 mm 2 Universal Fasteners 8 2 Button-Head Screws ISO 7380-M8x30, St, bright zinc-pl. Special T-Slot Nut M8, cast steel Pitch p = 10 mm Number of teeth z = 28 Notes on Use and Installation
Properties
| line 8 | line 8 |
|---|---|
| Torque max. | Mmax. = 60 Nm |
| ESD-safe | No |
| Weight | m = 3.2 kg |
| Delivery unit | 1 set |

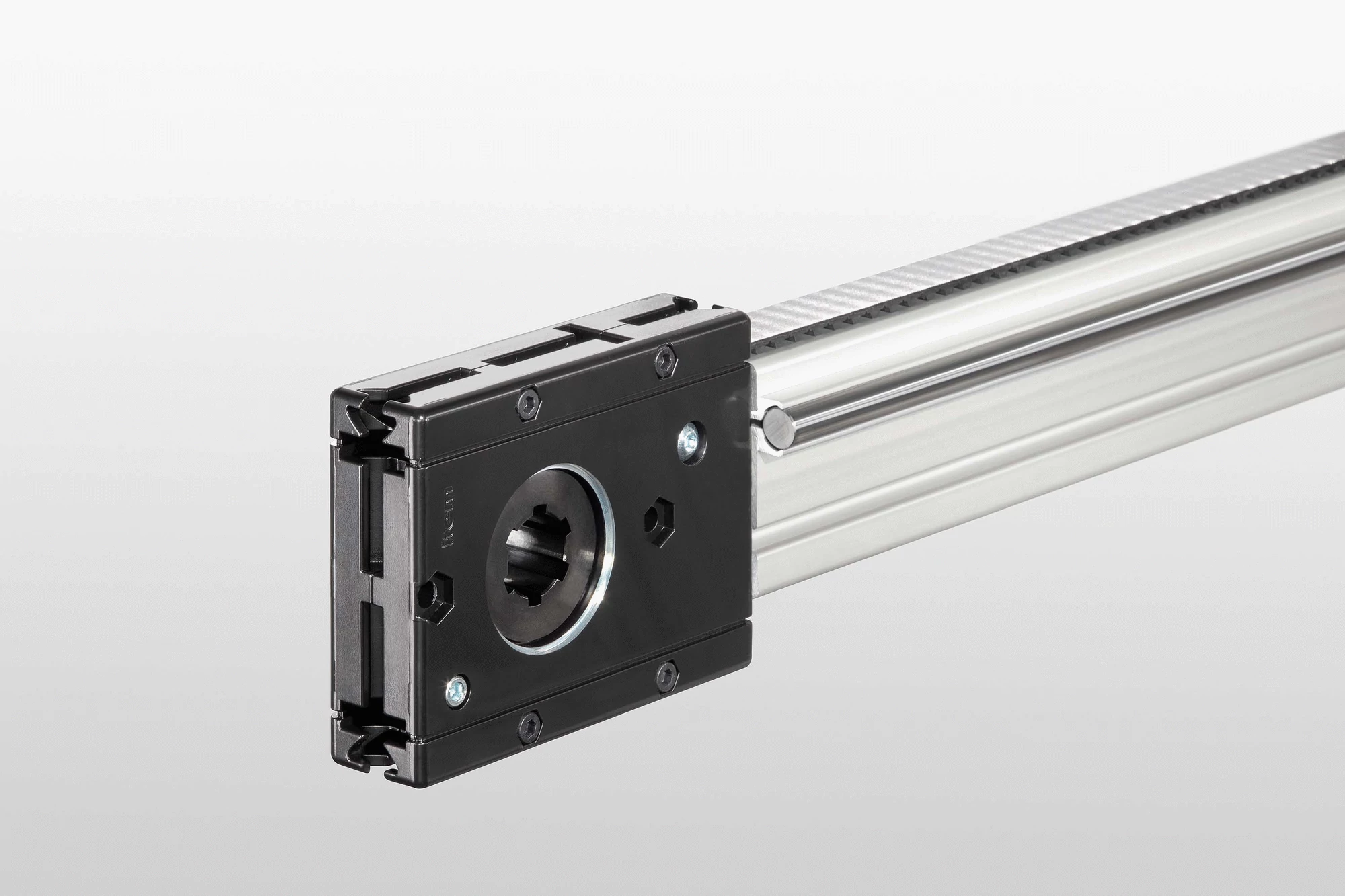

Timing-Belt Reverse Unit 8 80 R25 mounted at a profile height of 40 mm in the groove of Profile 8 using Universal Fastener 8 and special T-Slot Nut or at a profile height of 80 mm by splitting the special T-Slot Nut at the specified break point.
The variation in the emergence dimensions from 80 mm to 40 mm is achieved by rerouting the Timing Belt internally. The Timing Belt is routed with its smooth reverse side over the reversing pulleys. The allowable driving torque of Timing-Belt Reverse Units 8 80 R25 is limited to M D = 40 Nm when the loaded belt runs through the reversing pulleys. In this case, a Timing-Belt Reverse Unit 8 40 R25 can be used as a second reverse unit.
To protect the Timing Belt against damage, the profiles must be rounded at the joint to the Timing-Belt Reverse Unit.
