| Threaded Insert, Profile Tube D30 heavy duty M6 | CADPDFRFQ |
Preview

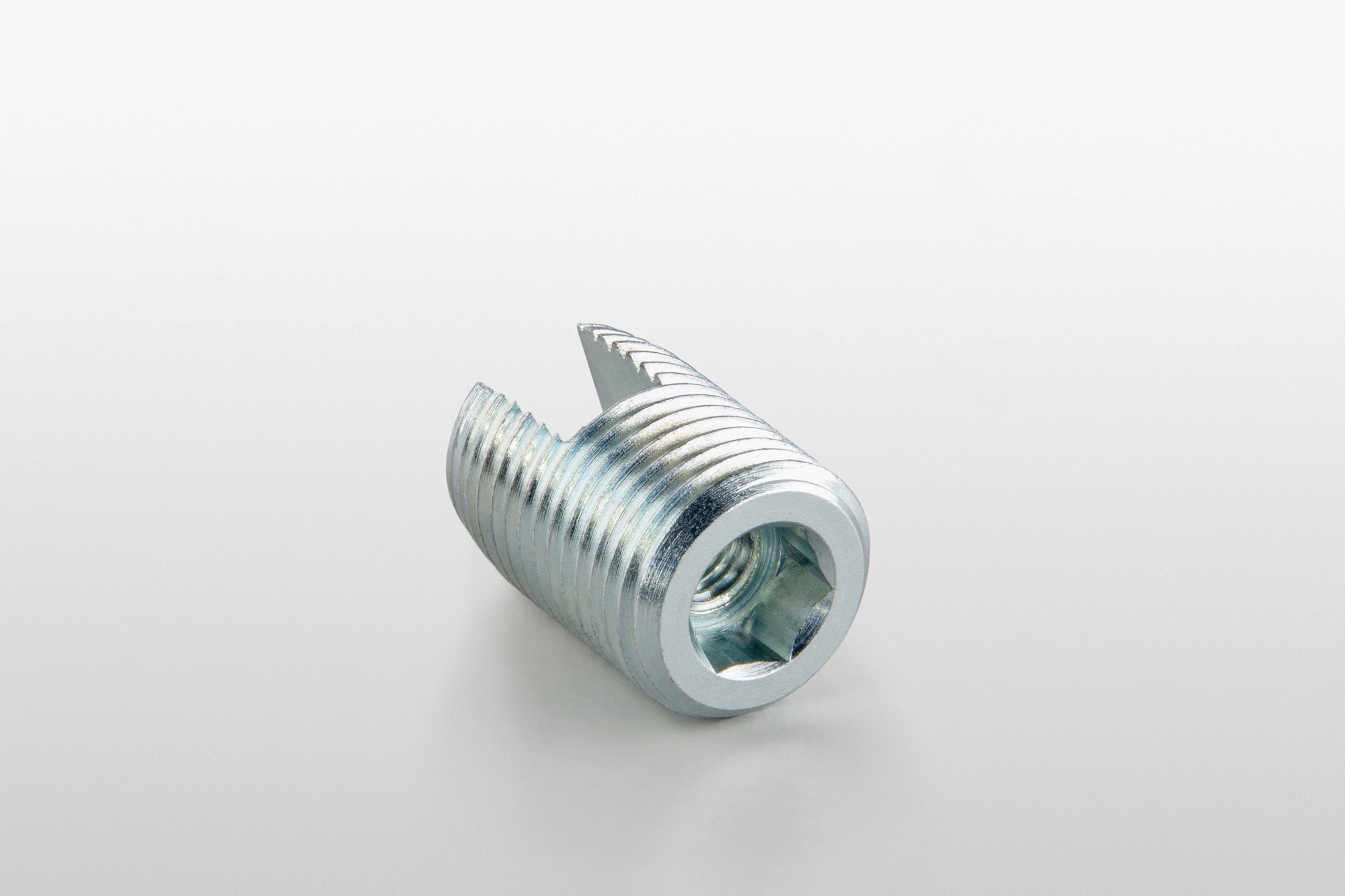

Threaded Insert, Profile Tube D30 heavy duty M6
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 23 g |
| Delivery unit | 1 pce. |
| Material | St, bright zinc-plated |

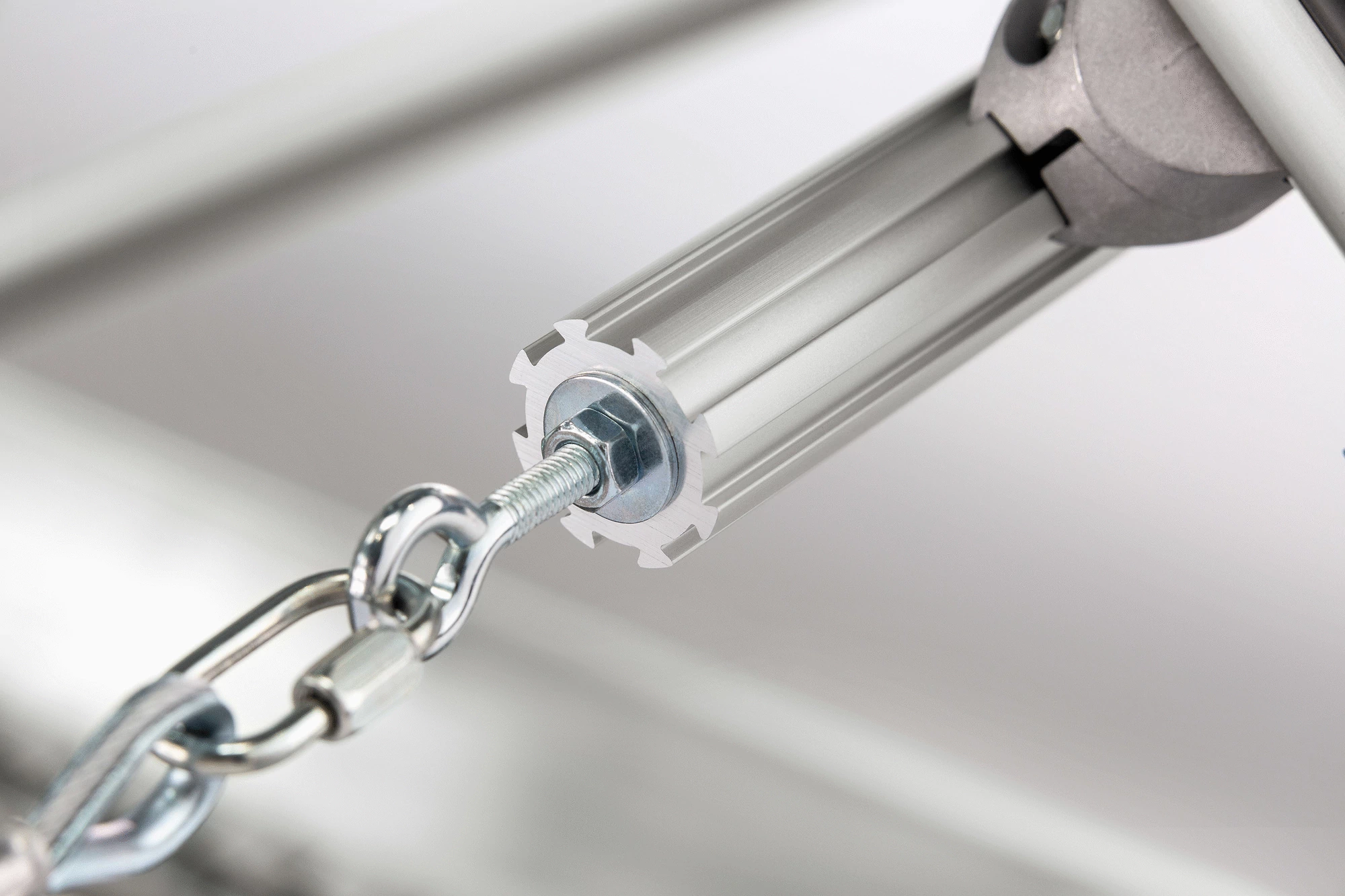

Heavy metal! Robust Threaded Insert, Profile Tube D30 heavy duty M6 can be used to screw all kinds of attachments to the end face of a Profile Tube D30 heavy duty or Profile Tube D30-45° heavy duty. The M6 thread is needed for applications such as fitting a Profile Tube D30 heavy duty to a Tube Holder 6 D30 (0.0.642.23) or Tube Holder 8 D30 (0.0.642.05). The metal Threaded Insert is self-tapping and is screwed into place via an 8 A/F hex socket. Note: Please observe the load limits of an M6 screw connection.
