| Set CAD-format | ||
|---|---|---|
| Threaded Insert D30 M10, grey similar to RAL 7042 | CADPDFRFQ |
Preview
Threaded Insert D30 M10, grey similar to RAL 7042
2 threaded insert halves D30, PA-GF Hexagon nut M10x30, St, bright zinc-plated
Scope of Delivery
2 threaded insert halves D30, PA-GF Hexagon nut M10x30, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | No |
| Weight | m = 50 g |
| Force max | Fmax. = 2000 N |
| Delivery unit | 1 set |
| Colour | grey similar to RAL 7042 |

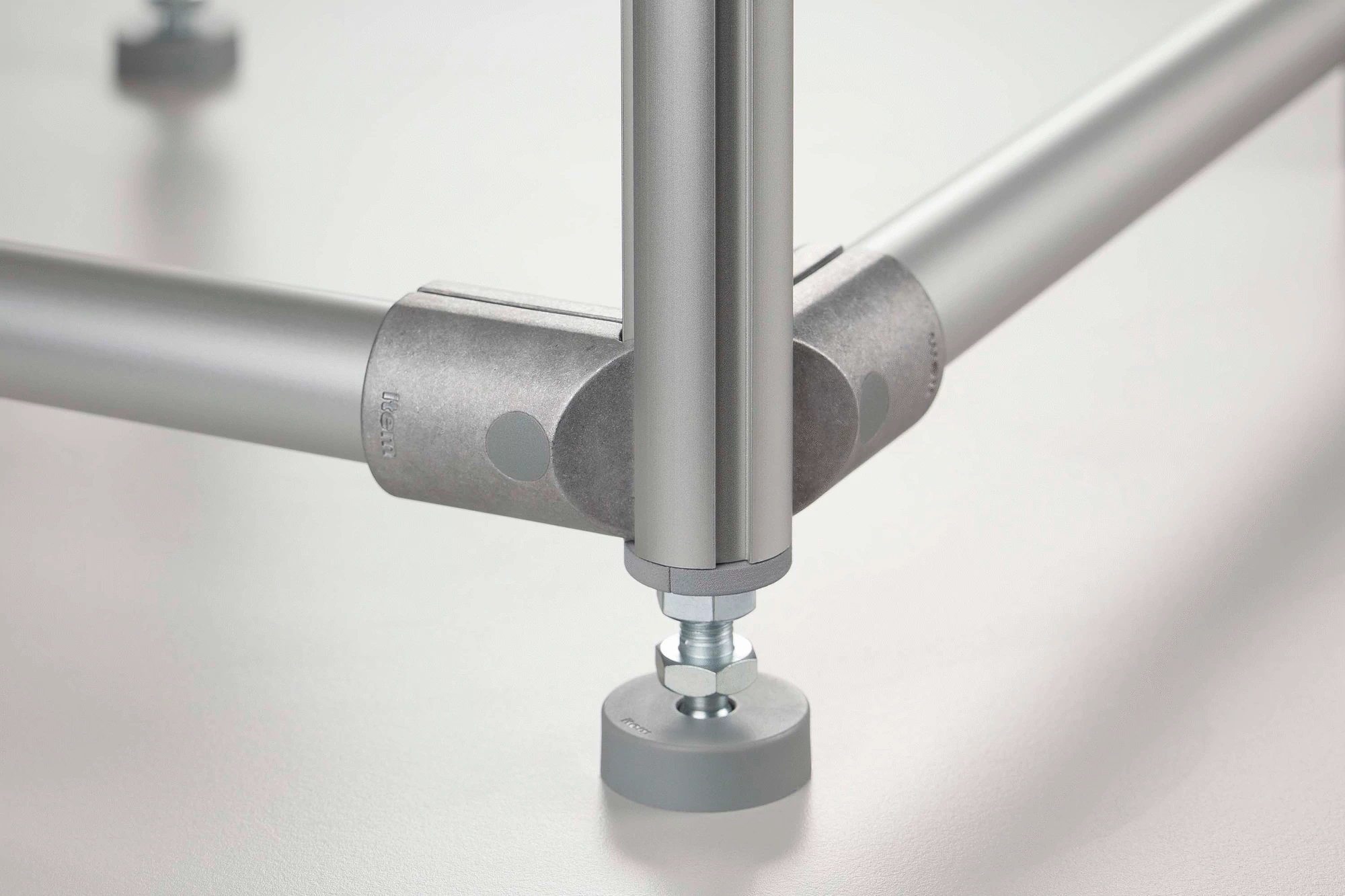

Threaded Insert D30 M10 is inserted into the end faces of Tubes and Profile Tubes D30 in order to fasten adjustable feet and castors and is ideal for components under heavy compressive loads.
