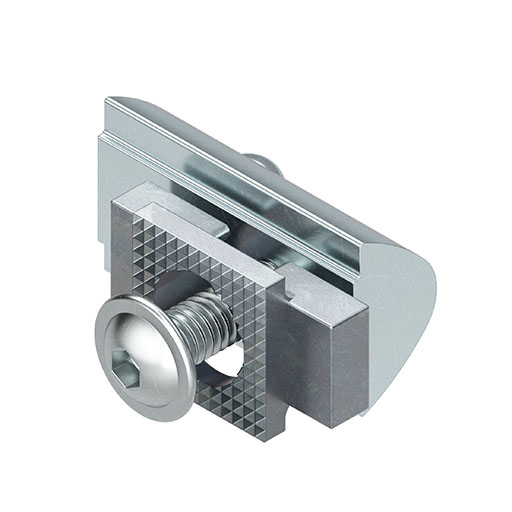

Telescopic Rail Interlock Fastening Set 8
1 T-Slot Nut V 8 St M4, bright zinc-plated 1 button flange head screw ISO 7380 M4x18 1 locating lug, die-cast zinc, bright zinc-plated
Scope of Delivery

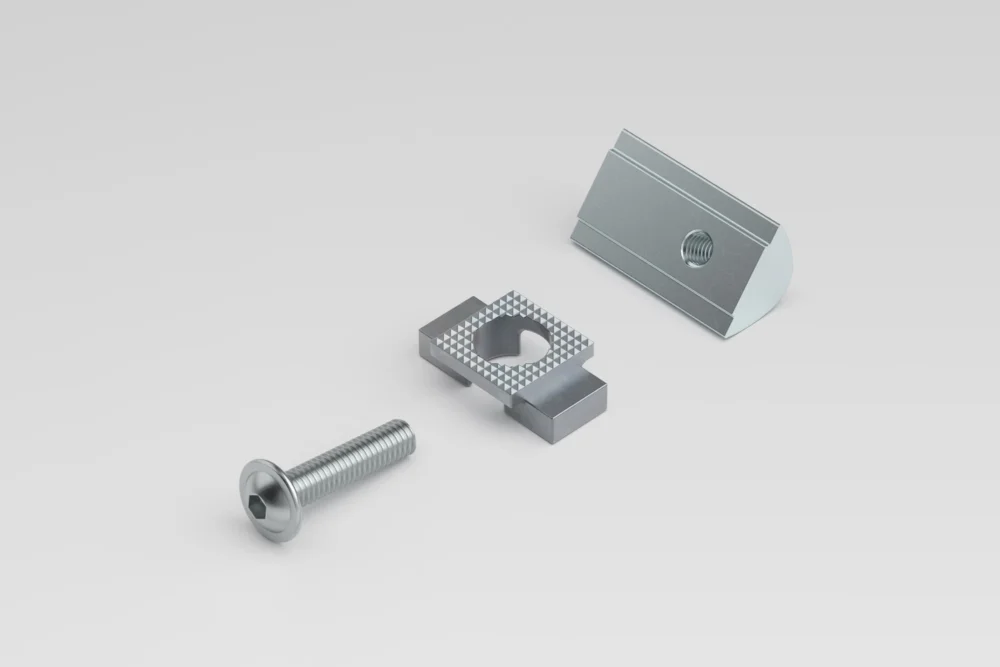

1 T-Slot Nut V 8 St M4, bright zinc-plated 1 button flange head screw ISO 7380 M4x18, St 1 locating lug, die-cast zinc, bright zinc-plated
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 16 g |
| Delivery unit | 1 set |
| cleanroom suitability | No |
| Presentation | 2026-03-24T00:00:00 |

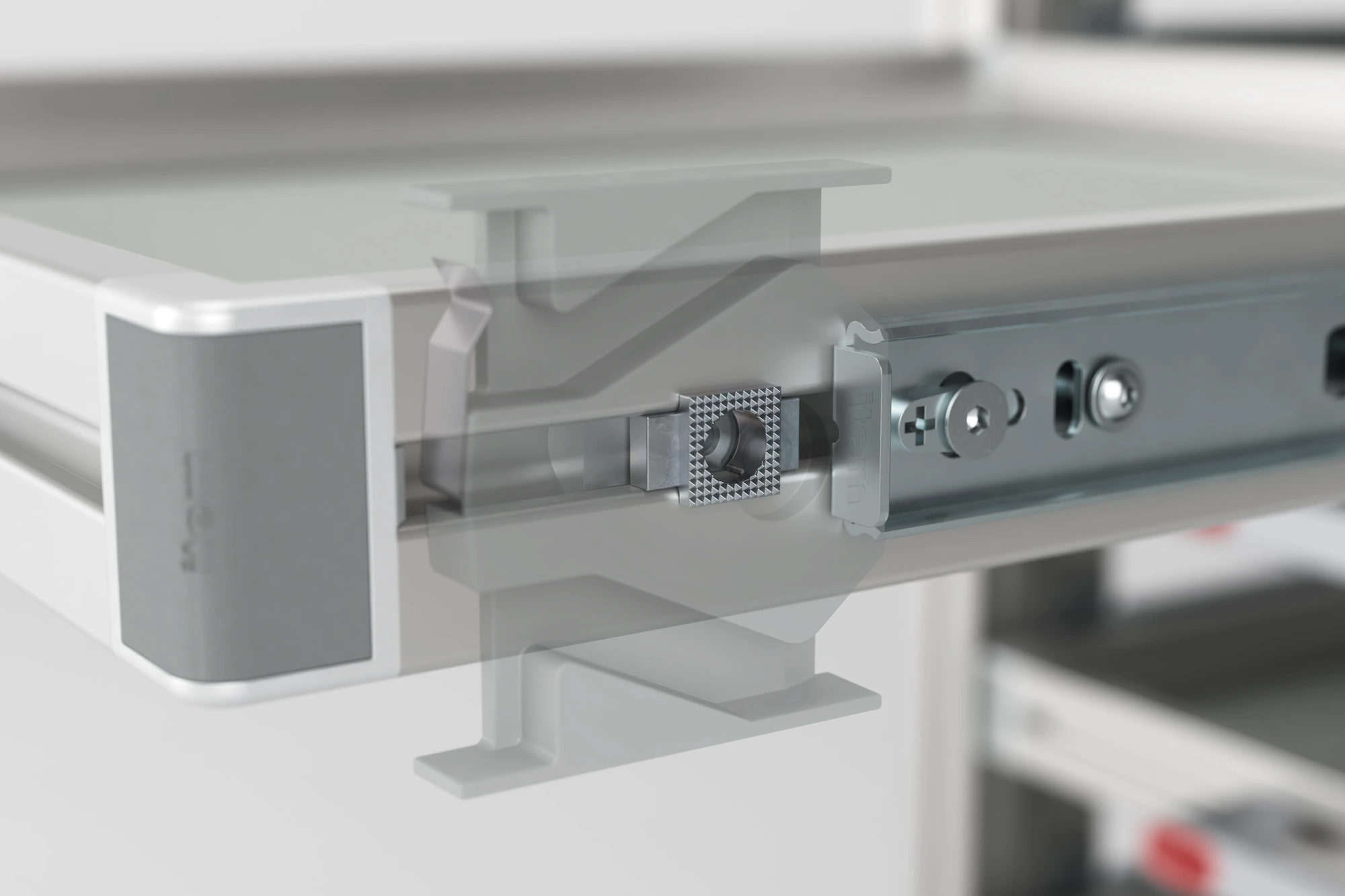

Telescopic Rail Interlock Fastening Set 8 is used to fasten the locking element of Telescopic Rail Interlock Locking Set 8 (0.0.733.33) to a Line 8 groove. This ensures that the interlock system can be used with pull-out trays and drawers based on Line 8.

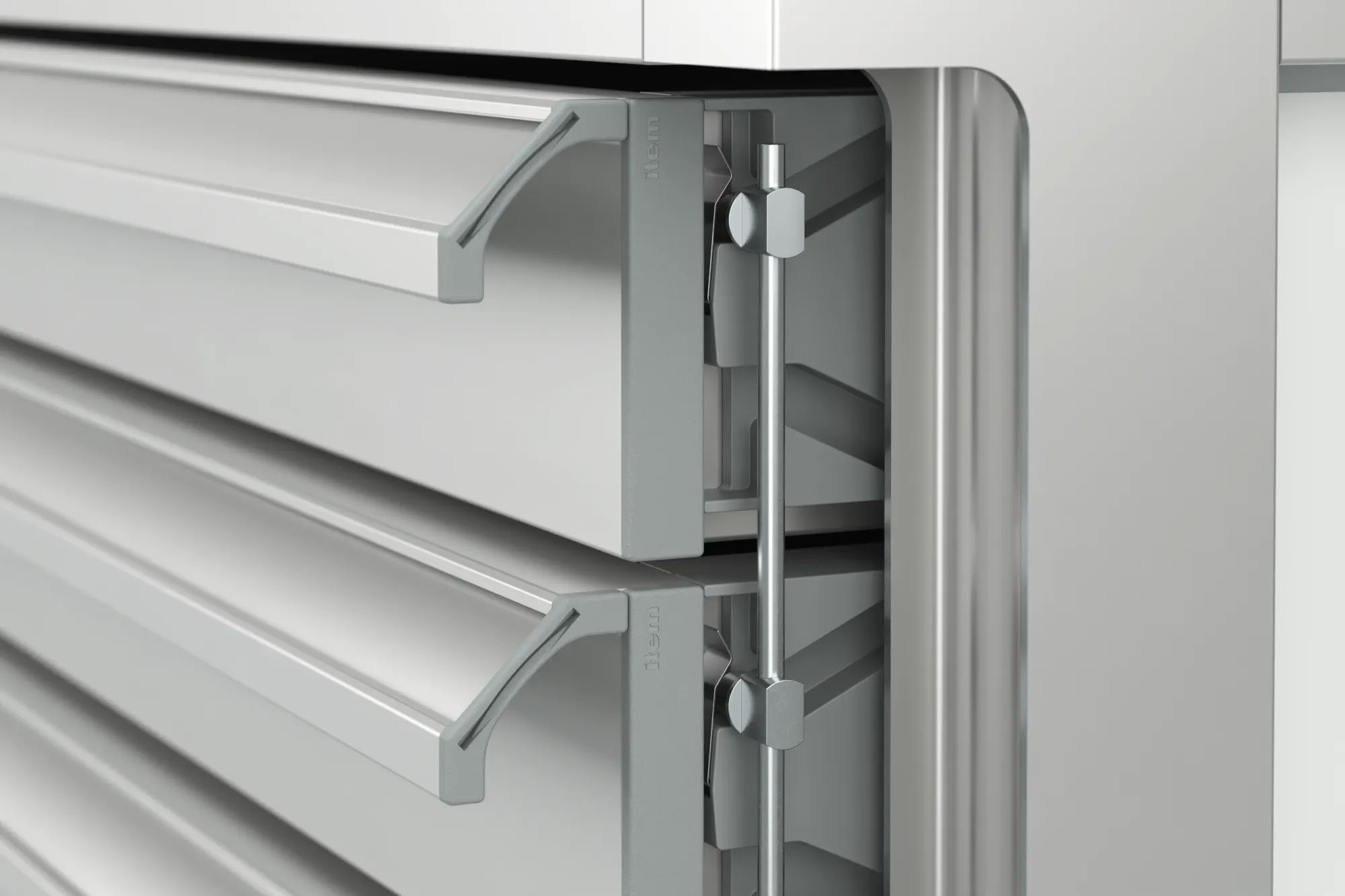

How the item interlock system works: When one drawer is pulled out, the locking element slides the locking clip up. The Guide Bar moves all the other locking clips at the same time, which locks all the other pull-outs in place until the opened drawer has been pushed all the way in again. The Guide Bar runs in a free vertical Line 8 groove on the profile frame.

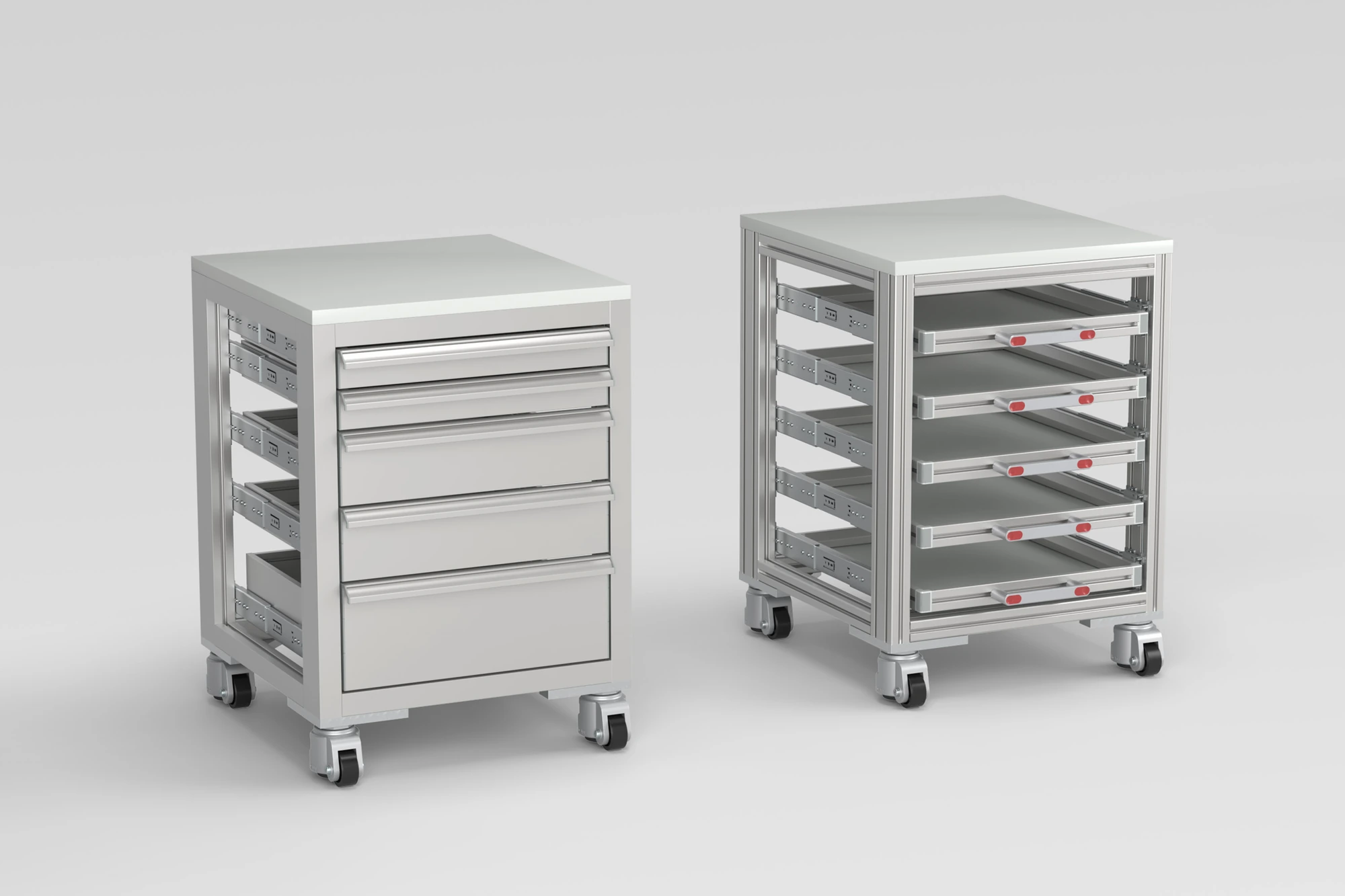

The modular item Drawer System is the ideal solution for building drawers and pull-outs for industrial applications. Carefully coordinated components enable you to tailor your solutions to any application scenario in all dimensions. The item interlock system boosts stability because it makes sure only one drawer can be opened at a time.
